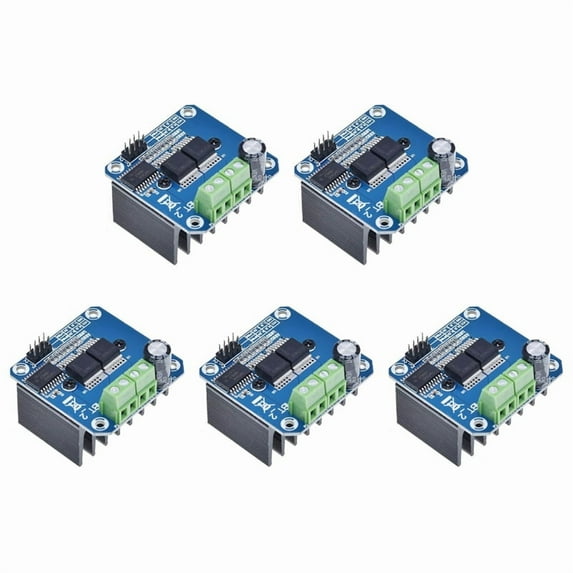

Hero image 0 of 5X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit,5 x Motor Driver Module, 0 of 7
5X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit,5 x Motor Driver Module
(No ratings yet)
Key item features
- Voltage indication of motor driver output end; can solder heat sink.
- to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.
- 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
Specs
Motor drive type, H-Bridge DC Motor Controller
Brand, Unbranded
Accessories, Motor Driver Module
Has written warranty, No
Motor drive type
H-Bridge DC Motor Controller
Brand, Unbranded
Brand
Unbranded
Accessories, Motor Driver Module
Accessories
Motor Driver Module
Has written warranty, No
Has written warranty
No
Similar items you might like
Based on what customers bought
Digital Stepper Driver, Dm556 Motor Driver $18.43
$1843current price $18.43Digital Stepper Driver, Dm556 Motor Driver
BLDC Motor Driver 500W High Power 6-60V 20A Hall Brushless Motor Speed Control Board PWM Three-Phase with Module $21.49
$2149current price $21.49BLDC Motor Driver 500W High Power 6-60V 20A Hall Brushless Motor Speed Control Board PWM Three-Phase with Module
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.44
$1044current price $10.44BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
ESP32 Direct Drive Servo Motor Driver Board Support 2.4G WiFi $33.84
$3384current price $33.84ESP32 Direct Drive Servo Motor Driver Board Support 2.4G WiFi
Direct Drive Servo Motor Driver Board, Integrates ESP32 & Control Circuit, 2.4G WiFi Support $27.87
$2787current price $27.87Direct Drive Servo Motor Driver Board, Integrates ESP32 & Control Circuit, 2.4G WiFi Support
4X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $21.59
$2159current price $21.594X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
L298N Module Dual H-Bridge Stepper Motor Driver Board Module 2A/25W, $7.19
$719current price $7.19L298N Module Dual H-Bridge Stepper Motor Driver Board Module 2A/25W,
2Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit PCB Blue&Black,2 x BTS7960B H-bridge 43A High-Power Motor Driver Module $17.09
$1709current price $17.092Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit PCB Blue&Black,2 x BTS7960B H-bridge 43A High-Power Motor Driver Module
11 out of 5 Stars. 1 reviews1 out of 5 stars3X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $17.62
$1762current price $17.623X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
2Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit $17.10
$1710current price $17.102Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit
2X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.65
$1065current price $10.652X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
AT8236 Dual-Channel Motor Driver Module with Onboard Regulator, 5.5-17V , 2 PWM Control, 3.3V Logic, 6A $15.43
$1543current price $15.43AT8236 Dual-Channel Motor Driver Module with Onboard Regulator, 5.5-17V , 2 PWM Control, 3.3V Logic, 6A
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.66
$1066current price $10.66BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
TB6612 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Chip Car,1 x Motor Driver Module Kit,Green $15.59
$1559current price $15.59TB6612 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Chip Car,1 x Motor Driver Module Kit,Green
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit $10.99
$1099current price $10.99BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit
BLDC Motor Driver 500W High Power 6-60V 20A Hall Brushless Motor Speed Control Board PWM Three-Phase Motor Drive Module $19.05
$1905current price $19.05BLDC Motor Driver 500W High Power 6-60V 20A Hall Brushless Motor Speed Control Board PWM Three-Phase Motor Drive Module
TB6612 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Chip Car $14.71
$1471current price $14.71TB6612 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Chip Car
DRV8833 Double Motor Driver Module 1.5A Output PWM Speed Regulation For Arduino Robotics Projects Compactly Design $8.08
2 optionsAvailable in additional 2 options$808current price $8.08DRV8833 Double Motor Driver Module 1.5A Output PWM Speed Regulation For Arduino Robotics Projects Compactly Design
BTS7960 43A H-Bridge Motor Driver 4-Pack - High-Power DC Motor Controller with Current Limiting and Overheat Protection $22.59
$2259current price $22.59BTS7960 43A H-Bridge Motor Driver 4-Pack - High-Power DC Motor Controller with Current Limiting and Overheat Protection
Treedix 2PCS BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module Compatible with Arduino Current Limit Semiconductor Refrigeration Drive $15.99
$1599current price $15.99Treedix 2PCS BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module Compatible with Arduino Current Limit Semiconductor Refrigeration Drive
About this item
Product details
Input voltage: 6V-27V
Maximum current: 43A
Input level: 3.3-5V
Control method: PWM or level
Duty cycle: 0-100%
Input port:
1.RPWM: forward level or PWM signal input, active high
2.LPWM: Reverse level or PWM signal input, active high
3.R_EN: forward drive enable input, high-level enable, low level off
4.L_EN: Reverse drive enable input, high-level enable, low level off
5.R_IS: forward drive current alarm output
6.L_IS: Reverse drive current alarm output
7.VCC: +5 V power output, 5V power supply connection with the microcontroller
8.GND: signal common low end
Colour:Photo Color
Material: ABS
Size: 5 x 5 x 3cm
Package Contents:
5 x Motor Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Maximum current: 43A
Input level: 3.3-5V
Control method: PWM or level
Duty cycle: 0-100%
Input port:
1.RPWM: forward level or PWM signal input, active high
2.LPWM: Reverse level or PWM signal input, active high
3.R_EN: forward drive enable input, high-level enable, low level off
4.L_EN: Reverse drive enable input, high-level enable, low level off
5.R_IS: forward drive current alarm output
6.L_IS: Reverse drive current alarm output
7.VCC: +5 V power output, 5V power supply connection with the microcontroller
8.GND: signal common low end
Colour:Photo Color
Material: ABS
Size: 5 x 5 x 3cm
Package Contents:
5 x Motor Driver Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Voltage indication of motor driver output end; can solder heat sink.
- to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.
- 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Motor drive type
H-Bridge DC Motor Controller
Brand
Unbranded
Accessories
Motor Driver Module
Has written warranty
