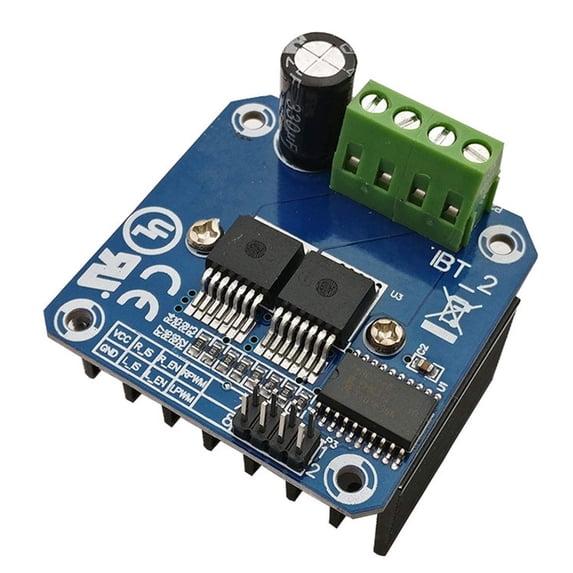

BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Arduino Current Limit
Key item features
- 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.
- Voltage indication of motor driver output end; can solder heat sink.
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
- Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
Specs
Has nrtl listing certification, N
Dimensions, 5.00 x 5.00 x 5.00 in
Weight, 0.11 lb
Has written warranty, No
Similar items you might like
TB6612FNG High Efficiency Double Motor Driver 1A Speed Control $9.99
$999current price $9.99TB6612FNG High Efficiency Double Motor Driver 1A Speed Control
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.44
$1044current price $10.44BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
Novixy XY-160D Dual Channel DC Motor Driver L298 H-Bridge Controller Board 6.5V-27V 10A/15A Fuse PWM Speed Control for Arduino Robot Projects $11.11
$1111current price $11.11Novixy XY-160D Dual Channel DC Motor Driver L298 H-Bridge Controller Board 6.5V-27V 10A/15A Fuse PWM Speed Control for Arduino Robot Projects
PCA9685 16-Channel PWM Servo Driver Motor Drive Board Module IIC Interface for Robotic Controls, 10 Inches / 25.4 cm $10.58
$1058current price $10.58PCA9685 16-Channel PWM Servo Driver Motor Drive Board Module IIC Interface for Robotic Controls, 10 Inches / 25.4 cm
4 Independent Channel MOSFET Control Module Isolation 12V Motor Driver Board $9.49
2 optionsAvailable in additional 2 options$949current price $9.494 Independent Channel MOSFET Control Module Isolation 12V Motor Driver Board
L298N DC Motor Drive Controller Module, Mini 2.5A Dual H-Bridge PWM Speed Regulation Reversing Motor Driver Board for Arduino Smart Car Robot DIY Projects $7.34
$734current price $7.34L298N DC Motor Drive Controller Module, Mini 2.5A Dual H-Bridge PWM Speed Regulation Reversing Motor Driver Board for Arduino Smart Car Robot DIY Projects
Reduced price, TB6612FNG Double Motor Drive Module 1A High Efficiency Small Design for Microcontroller Robotics Projects $8.16 Was $9.12
Reduced price
$816current price $8.16, Was $9.12$9.12TB6612FNG Double Motor Drive Module 1A High Efficiency Small Design for Microcontroller Robotics Projects
5pcs DRV8825 Stepper Motor Driver Module 4-Layer with Mini Heat Sink RP1.4 A4988 $10.80
$1080current price $10.805pcs DRV8825 Stepper Motor Driver Module 4-Layer with Mini Heat Sink RP1.4 A4988
2Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit $17.10
$1710current price $17.102Pcs BTS7960 43A High Power Motor Driver Module Smart Car Driver Module for Current Limit
4-Pack L298N Motor Driver Controller Module, Dual H-Bridge DC & Stepper Motor Driver for Arduino UNO MEGA2560 Smart Car Projects $13.99
$1399current price $13.994-Pack L298N Motor Driver Controller Module, Dual H-Bridge DC & Stepper Motor Driver for Arduino UNO MEGA2560 Smart Car Projects
CREHNIL L298N Motor DC Dual H-Bridge Motor Driver Controller Board Module Stepper for Arduino Intelligent Car Power UNO MEGA R3 Mega2560 $7.25
$725current price $7.25CREHNIL L298N Motor DC Dual H-Bridge Motor Driver Controller Board Module Stepper for Arduino Intelligent Car Power UNO MEGA R3 Mega2560
Katigan 3-Pack DRV8871 H-Bridge DC Motor Driver PWM Control, 3.6A Max, 6.5-45V for Robotics Projects $9.89
$989current price $9.89Katigan 3-Pack DRV8871 H-Bridge DC Motor Driver PWM Control, 3.6A Max, 6.5-45V for Robotics Projects
Double H Bridge Motor Drive Module for L298N Stepper Motor Smart Car Robot Control Board $8.53
$853current price $8.53Double H Bridge Motor Drive Module for L298N Stepper Motor Smart Car Robot Control Board
2X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.65
$1065current price $10.652X BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit $10.67
$1067current price $10.67BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module for Current Limit
Jindis DRV8833 Motor Driver Board 2-Channel H-Bridge Control for Robotics, Smart Cars, Projects $6.99 Was $9.24
$699current price $6.99, Was $9.24$9.24Jindis DRV8833 Motor Driver Board 2-Channel H-Bridge Control for Robotics, Smart Cars, Projects
PWM DC Motor Speed Controller 20A 10-60V Voltage Regulator for Brushed Motors $13.24
$1324current price $13.24PWM DC Motor Speed Controller 20A 10-60V Voltage Regulator for Brushed Motors
14 out of 5 Stars. 1 reviews4 out of 5 starsL293D DC Motor Drive Shield, 4CH 4.5-36V Stepper Motor Control Expansion Board with PWM Speed Regulation for Arduino DIY Robotics Projects $9.36
$936current price $9.36L293D DC Motor Drive Shield, 4CH 4.5-36V Stepper Motor Control Expansion Board with PWM Speed Regulation for Arduino DIY Robotics Projects
DRV8833 Double Motor Driver Module 1.5A Output PWM Speed Regulation For Arduino Robotics Projects Compactly Design $8.08
2 optionsAvailable in additional 2 options$808current price $8.08DRV8833 Double Motor Driver Module 1.5A Output PWM Speed Regulation For Arduino Robotics Projects Compactly Design
PCA9685 16 Channel 12-Bit Motor Driver I2C Module Robot Servo Driver Board IIC $10.63
$1063current price $10.63PCA9685 16 Channel 12-Bit Motor Driver I2C Module Robot Servo Driver Board IIC
About this item
Product details
BTS7960 43A High Power Motor Driver Module
This BTS7960 motor driver module is designed for electronic DIY projects, smart car projects, robotics, motor control experiments, and microcontroller development. It uses a high-power full H-bridge driver design with strong driving and braking performance, making it suitable for compatible DC motor control applications.
The module supports PWM or level control and features thermal over-current protection for stable operation. Its isolated control design helps separate the microcontroller signal side from the motor driver side for safer and more reliable use in development projects.
Electrical Specifications:
- Model: IBT-2
- Input Voltage: 6V–27V
- Maximum Current: 43A
- Input Level: 3.3V–5V
- Control Method: PWM or level control
- Duty Cycle: 0–100%
Input Port Description:
- RPWM: Forward level or PWM signal input, active high.
- LPWM: Reverse level or PWM signal input, active high.
- R_EN: Forward drive enable input, high-level enable, low-level off.
- L_EN: Reverse drive enable input, high-level enable, low-level off.
- R_IS: Forward drive current alarm output.
- L_IS: Reverse drive current alarm output.
- VCC: +5V power output for microcontroller power connection.
- GND: Signal common ground.
Package Includes:
- 1 × BTS7960 43A High Power Motor Driver Module
Please confirm voltage, wiring, and current requirements before use. This module is intended for users with basic electronic wiring and microcontroller development experience.
- 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board.
- Voltage indication of motor driver output end; can solder heat sink.
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
- Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output.
- Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
