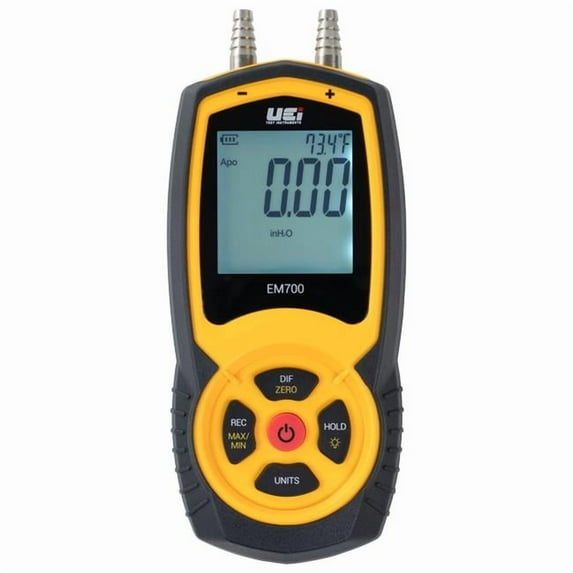

UEi Test Instruments EM700 Differential Pressure Manometer

Differential Pressure Manometer

Easy-to-use differential manometer for draft, gas supply, manifold, or burner pressures.

The UEi EM700 is a differential manometer capable of capturing maximum and minimum pressure and calculating timed mean average pressure on selected interval. The EM700 features 11 different units of measure with a pressure range of -80 to 80 inH2O and a resolution of 0.01 inH2O. It can be used to measure differential pressure as well as draft, gas supply, manifold, and burner pressure. The manometer also features a large backlit display, ergonomic over molded grip, and a magnetic mount for hands-free testing. EM700 includes pressure tubing, 2 nickel-plated brass gas valve adapters, and a padded case.

• Range ±80 inH2O
• Differential pressure
• Ambient temperature
• Easy-to-read backlit display
• Magnetic mount
• 11 units of measure
• Hold MIN & MAX - AVG capture
• Auto power off
• Low battery indication
• Zero button

• Range: ±80 inH2O
• Accuracy: ±0.03 inH2O < 3 inH2O, ±1% rdg > 3 inH2O
• Resolution: 0.01 in. H2O
• Rated Power: 4.5 VDC (3 x 1.5 VDC LR6 AA Batteries)
• Certifications: CE, FCC, RoHS, REACH Compliant, UK CA
• Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Storage Temperature: 14 °F to 122 °F (10 °C to 50 °C)
• Operating Humidity: Max 80% RH to 88 °F (31 °C), Decreasing linearly to 50% RH at 104 °F (40 °C)
• Auto Power Off (APO): 30 Minutes
• Dimension: 2.95" x 6.25" x 1.41"
• Weight: 2 lbs
