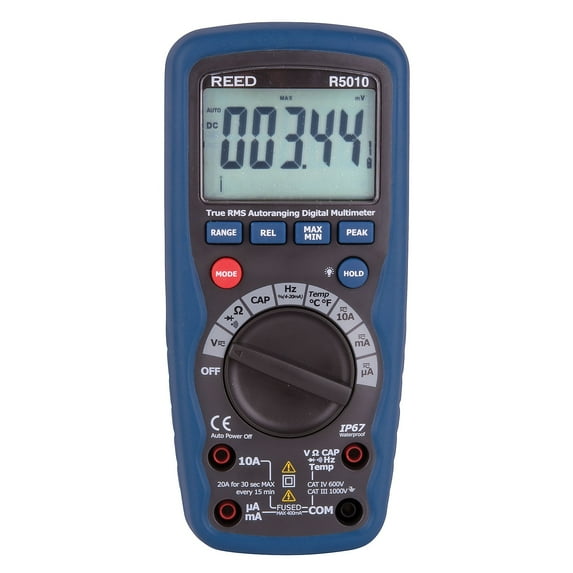

Reed Instruments True RMS Waterproof Digital Multimeter R5010

(No ratings yet)

Key item features

Versatile Measurements: This true RMS multimeter accurately measures AC/DC voltage and current, frequency, resistance, capacitance, and temperature, alongside 4-20 mA process loop measurements with a percentage readout.
Advanced Features: Includes data hold, Max/Min, and Peak capture modes, a non-contact voltage detector, and functions for diode checks and continuity testing.
Robust Durability: Boasts an IP67 dust and waterproof rating, ensuring resilience in challenging environments, and meets Cat. IV 600V, Cat. III 1000V safety standards.
Precise Display: Features a 40,000 count backlit LCD display with an analog bar graph for clear and precise readings across various measurement ranges.
Accurate Specifications: Offers DC accuracy of ±(0.1% rdg. + 5 dgt.) at 1000V and AC accuracy of ±(1.0% rdg. + 5 dgt.) at 400mV, with a temperature range from -58 to 1832°F (-50 to 1000°C).

Generated by AI

Specs

Multimeter type
Digital
Volts
1000 V
Brand
REED Instruments
Display
LCD
Power type
Battery
Model
R5010

Current price is $178.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $24.00

4-Year Plan - $34.00

How do you want your item?

Ships to

Arrives by Fri, Jun 12

Sold and shipped by SIM Supply Inc

4.338880730951216 stars out of 5, based on 6129 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $189.35

About this item

Product details

True RMS multimeter with built-in non-contact voltage detector and 40,000 count backlit LCD display.

This auto ranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph.

• True RMS AC/DC voltage and current measurements.
• Measures frequency, resistance, capacitance and temperature.
• Diode check and continuity functions.
• Backlit LCD readout with analog bar graph.
• 4-20 mA process loop measurements with % readout.
• Data hold, Max/Min and Peak capture mode.
• IP67 dust and waterproof.
• Cat. IV 600V, Cat. III 1000V safety rating.
• 7.4"H x 3.2"W x 2.0"D.
• AC range of 400mV, 4, 40, 400, 1000V.
• DC range of 400mV, 4, 40, 400, 1000V.
• AC accuracy of + or -(1.0% rdg. + 5 dgt.) at 400mV and + or -(1.0% rdg. + 3 dgt.) for other ranges.
• DC accuracy of + or -(0.1% rdg. + 5 dgt.) at 1000V and + or -(0.06% rdg. + 2 dgt.) for other ranges.
• AC resolution of 0.1mV, 0.001, 0.01, 1V.
• DC resolution of 0.01mV, 0.0001, 0.01, 0.1V.
• AC/DC current range of 400, 4000 A, 40, 400mA, 10A.
• AC current accuracy of + or -(1.5% rdg. + 3 dgt.).
• DC current accuracy of + or -(1.0% rdg. + 3 dgt.).
• Temperature range of -58 to 1832degree f (-50 to 1000degree C).

• Sold as 1 Each.

Sold as 1 Each.
True RMS AC/DC voltage and current measurements. 4-20 mA process loop measurements with % readout. 7.4"H x 3.2"W x 2.0"D. DC accuracy of + or -(0.1% rdg. + 5 dgt.) at 1000V and + or -(0.06% rdg. + 2 dgt.) for other ranges. AC current accuracy of + or -(1.5% rdg. + 3 dgt.).
Measures frequency, resistance, capacitance and temperature. Data hold, Max/Min and Peak capture mode. AC range of 400mV, 4, 40, 400, 1000V. AC resolution of 0.1mV, 0.001, 0.01, 1V. DC current accuracy of + or -(1.0% rdg. + 3 dgt.).
Diode check and continuity functions. IP67 dust and waterproof. DC range of 400mV, 4, 40, 400, 1000V. DC resolution of 0.01mV, 0.0001, 0.01, 0.1V. Temperature range of -58 to 1832degree f (-50 to 1000degree C).
Backlit LCD readout with analog bar graph. Cat. IV 600V, Cat. III 1000V safety rating. AC accuracy of + or -(1.0% rdg. + 5 dgt.) at 400mV and + or -(1.0% rdg. + 3 dgt.) for other ranges. AC/DC current range of 400, 4000 A, 40, 400mA, 10A.
