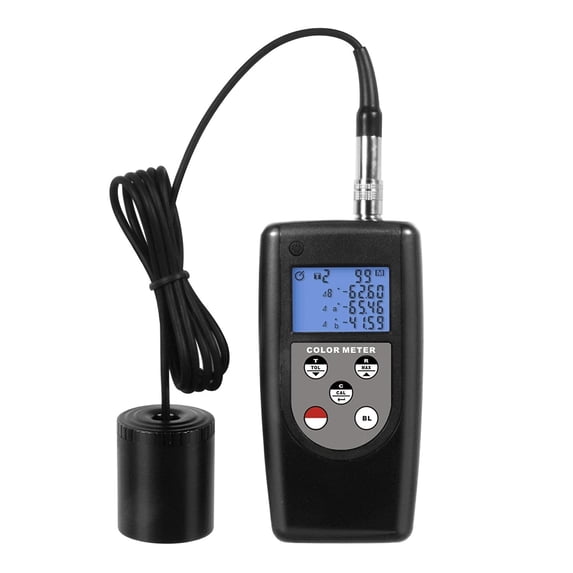

Digital Colorimeter Color Meter Color Difference Tester With 99 Set Data Memory Capacity Backlight Display For Textile Paper Leather Color Measuring
Shipping Policy : Battery not Included During the Shipping
Featrues
The meter is an extremely compact, extremely easy-to-use tristimulus colormeter specially designed for measuring the color difference between two colors.
The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application.
* Color difference displayed (L*, a*, b*), (E*ab, C*ab, H*ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
* Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
* Statistical function (Maximum, Minimum, Avera and Standard Deviation).
* Color difference tolerance set to perform PASS / WARN / FAIL.
* Store 9 color-difference tart colors.
* User calibration function ensures higher accuracy.
* Auto memory (99 sets) & Read function
Digital backlight display
Auto power off function.
* Applies USB, data output.
* Use USB data output to connect with PC.(optional)
* Provide data output choice.(optional)
Display
Triple 4 digit LCD Display
Auto power off
Approx. 3 minutes
Data memory capacity
99 set. (Direct reading from LCD display)
Low battery indication
Illuminating/Viewing ometry
45°/0°: Illumination at 45°, measurement at 0°
Measuring area
Color difference: (L*,a*,b*), (E*ab,C*ab,H*ab), (Y,x,y), (X,Y,Z), (Rs,Gs,Bs) or (WI,YI,Tw)
Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
Tart color memory
9 channel; set by measurement or keypad
Measuring ran
L*: 5 to 100
Measurement conditions
Observe: CIE 2° Standard Observer
Illuminant
White LED lamp
Repeatability
Standard deviation within E*ab 0.5 (Measurement conditions: Avera of measurements of standard white plate)
Minimum interval between measurements
Approx. 2 seconds
Operating temperature and humidity
< 85%RH.
Stora temperature and humidity
< 70%RH.
Power source
4x1.5 AAA (UM-4) Battery (not included)
Dimensions
140x73x35mm (5.5x2.9x1.4inches)
Weight(Not Including Batteries)
Approx. 220g with battery
Standard Accessories
Main Unit
Measuring head
White calibration card
Carrying Case (B04)
Manual
Optional Accessories
USB Data Cable with Software
Data Adapter with software
