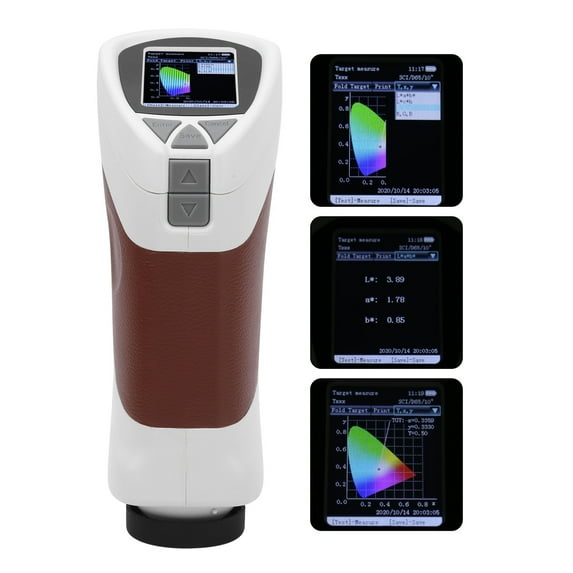

CS-10 Portable 8MM Colorimeter Color Difference Meter Tester Multifunctional Colorimeter Support USB 2.0 Interface

Specification

Name: CS-10 Colorimeter

Power supply mode: AC 220Vplug-in or battery (battery not included)

Illumination and light-receiving system:

8/d (8 illumination/diffuse light-receiving),

including specular reflection light (SCI)

Display Mode:

Chromaticity value: L*a*b, L*C*h, E*ab, XYZ,

relative RGB value, color fastness, color fastness

2. Color difference value: (L*a*b), (L*C*h)

Measurement diameter: 8mm

Measurement conditions: CIE10 standard observer, CIE D65 light source

Measuring range: L*: 1-100

Repeatability: standard deviation E*ab, within 0.1

(measurement conditions: measure the average value

of white calibration plate)

Storage: 10 sets of standard samples, 100 sets of

test sets under each set of standard samples

Measurement time: about 0.5 seconds

Measurement light source: LED light source

Syetem language: Chinese, English (switchable)

Power supply: 4 AA1.5V alkaline batteries or NiMH batteries

(battery not included), professional adapter DC5V (AC 220V)

Interface: USB2.0 printing

Certification: CE

Manual: English

Net weight: 550g

Package Included:

Colorimeter*1

Power Adapter*1

English Manual*1

Picture showing
