You can swap a damaged insertion pin using a zipper repair kit designed for metal, separating zippers (common on jackets). Here’s a general approach:

1. Match the size: Confirm your zipper is metal and note its size (#3, #5, #8, or #10).
2. Remove old hardware: Using small pliers, carefully remove the bottom stop and the damaged insertion pin/retainer box.
3. Install new parts: Slide the new retainer box on one side and the new insertion pin on the other, then crimp gently to secure.
4. Add a new bottom stop: Crimp it in place so the slider can’t run off.
5. Test and adjust: Zip up slowly and fine-tune the crimp if needed.

• Work slowly and use eye protection. Results can vary if the zipper tape is frayed; professional repair may be helpful.

Picking the correct replacement slider helps your zipper run smoothly. Try these steps:

• Check the number: Many metal sliders have a size stamped on the back (e.g., “5” for #5).
• Measure the chain width: Measure across the closed teeth in millimeters. About 3 mm ≈ #3, 5–6 mm ≈ #5, ~8 mm ≈ #8, ~10 mm ≈ #10.
• Match the tooth type: Most repair kits on this page focus on metal-tooth zippers.
• Choose the style: Single- or double-pull, and locking or non-locking, depending on your garment.
• Confirm end type: Separating zippers (jackets) use different sliders than closed-end styles.

When in doubt, bring the old slider to compare size and shape.

Many jacket zipper issues can be improved with a DIY repair kit. Two common fixes:

• Slider replacement:
  1. Match a new metal slider to your zipper size (#3/#5/#8/#10).
  2. Gently remove the top stop above the slider with pliers.
  3. Slide off the old slider, feed on the new one in the same orientation.
  4. Crimp on a new top stop and test.
• Bottom repair (separating end):
  1. Replace a worn insertion pin and retainer box from a compatible kit.
  2. Crimp a new bottom stop to secure the assembly.

Work slowly and avoid over-crimping. If the fabric or zipper tape is torn, professional help may be more reliable.

Those numbers refer to the approximate width of the zipper’s closed teeth (the “chain”). It helps you match compatible parts like sliders, insertion pins, and stops.

• #3: Around 3 mm chain width (lightweight garments and bags).
• #5: About 5–6 mm (common on jackets and coats).
• #8: Around 8 mm (heavier outerwear or gear).
• #10: About 10 mm (heavy-duty applications).

You can often see a size number on the back of the slider, or measure across the closed teeth with a ruler. Matching the size improves fit; results may vary if parts or tooth styles differ.

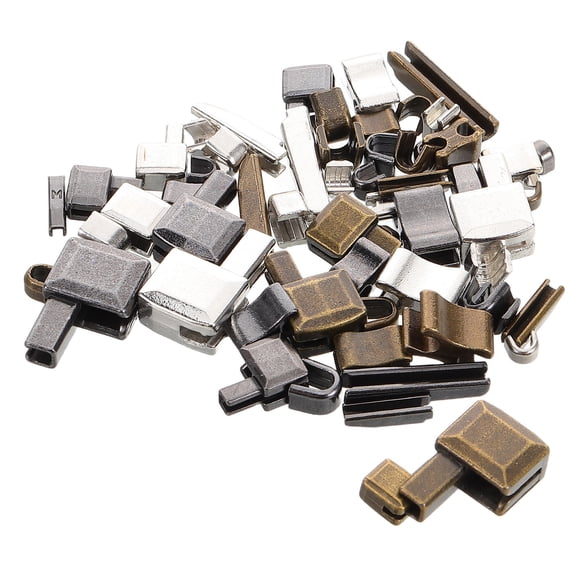

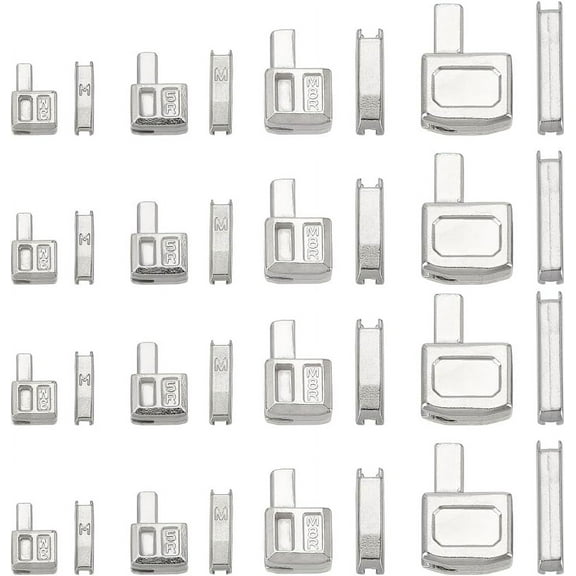

Most insertion pins and retainer boxes on this page are designed for metal, separating zippers (like jacket zippers) in common sizes such as #3, #5, #8, and #10.

• Best match: Metal-tooth zippers that come apart at the bottom and use an insertion pin/retainer box.
• Check compatibility: Confirm your zipper is metal and match the size number or chain width.
• May not fit: Coil (nylon) or molded plastic zippers often require different parts.

Always review the item details and compare to your existing zipper before purchasing. If the zipper tape is damaged or the style differs, a different repair approach may be needed.
