A punch down block is commonly used in network and telecommunication setups to organize and connect wires securely. It provides a structured way to terminate and distribute wires in systems like Ethernet or telephone networks.

• Helps keep wiring neat and organized.
• Allows for easy identification and troubleshooting of connections.
• Supports reliable, long-term wire connections for data and voice systems.

Using a punch down block can simplify the process of managing multiple wire connections in both home and business environments.

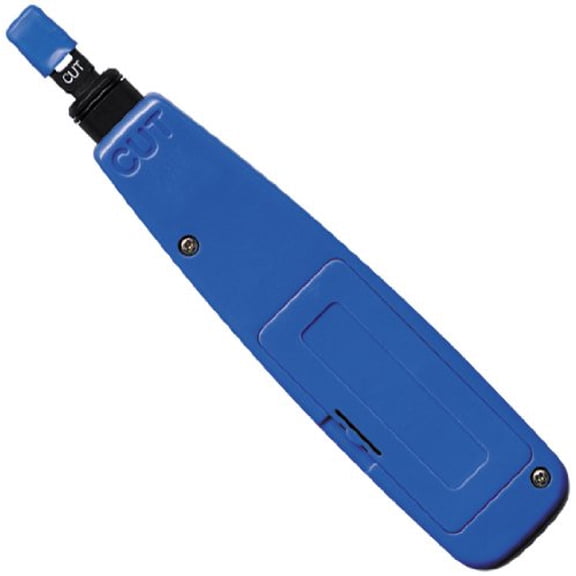

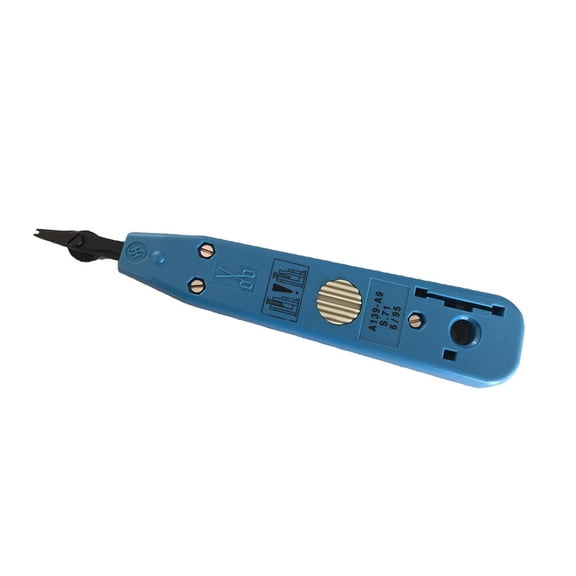

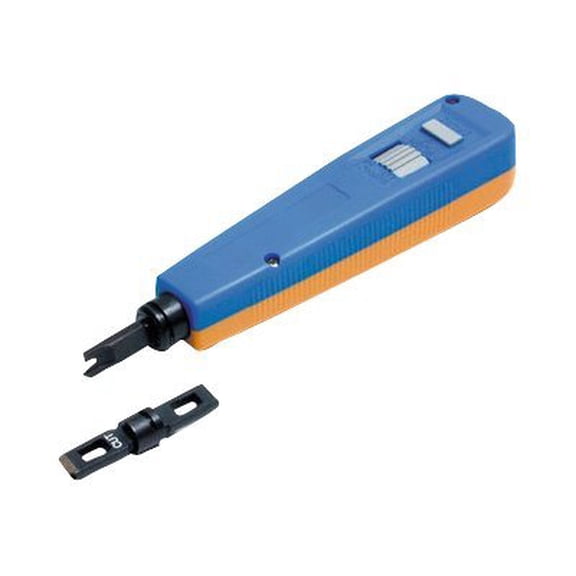

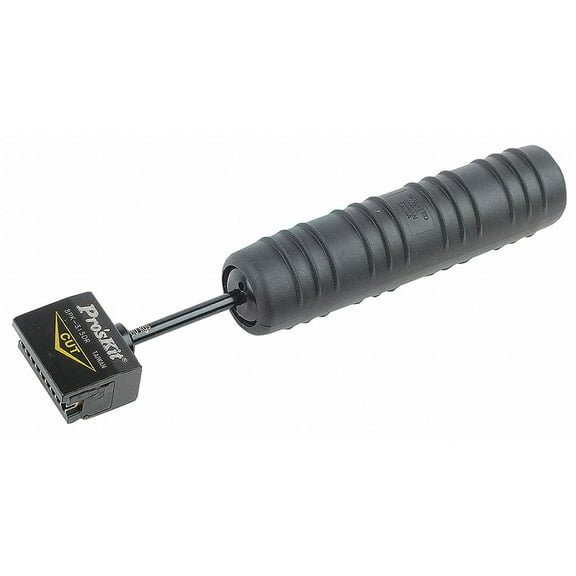

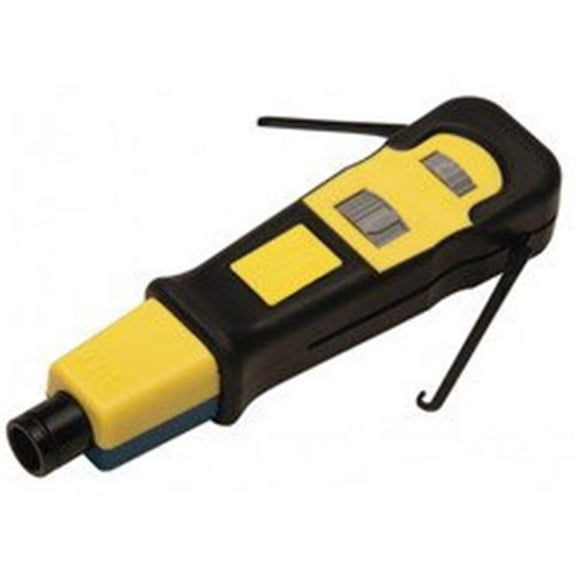

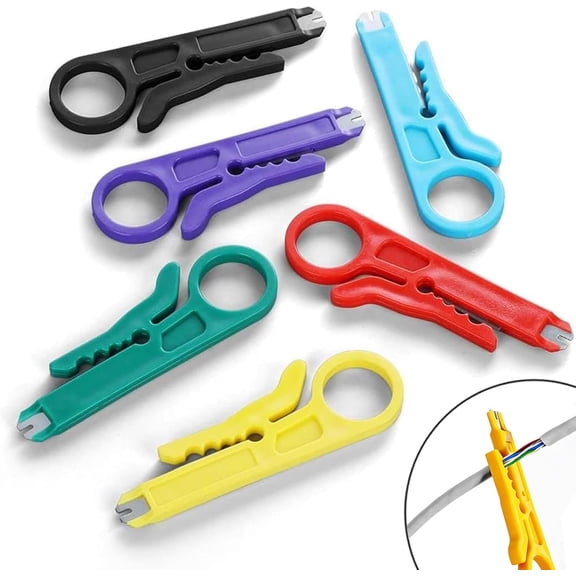

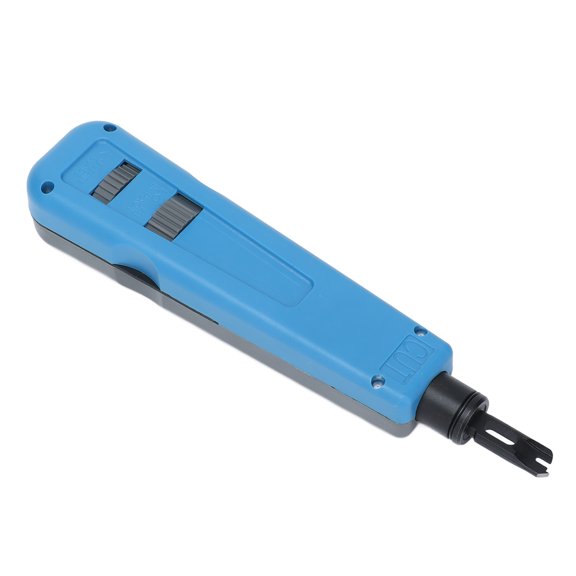

To use a punch down tool with a punch down block, start by stripping a small section of insulation from the wire. Then, position the wire over the proper slot on the block and press it in firmly with the punch down tool.

• The tool pushes the wire into the slot, trimming off any excess.
• Make sure to match the color-coded wires to the correct slots for accurate connections.
• Always check for secure seating to avoid loose wires or connectivity problems.

This process can help create stable and organized connections for your network setup.

In many cases, a punch down block can be reused if the contacts remain in good condition. When reusing, it's important to carefully remove old wires and inspect the slots for any damage or wear.

• Avoid using the same slot multiple times, as repeated use can weaken the connection.
• If you notice bent or worn contacts, consider using a new block for best reliability.
• Reusing is practical for minor changes, but for major rewiring, a fresh block is usually recommended.

Always make sure connections are secure after any changes.

While both punch down blocks and patch panels help organize network wiring, they serve slightly different purposes. A punch down block is used for terminating and distributing wires in network or phone systems, while a patch panel provides detachable ports for connecting patch cables.

• Punch down blocks are typically used in telephone and legacy network setups.
• Patch panels are more common in modern Ethernet networks for quick reconfiguration.
• Patch panels offer easier port management, while punch down blocks focus on permanent connections.

Choosing between the two depends on your specific network needs.

Keeping a punch down block organized starts with careful planning. Label each section or row according to its function or connection, and use color-coded cables for easier identification.

• Use cable ties or wire management accessories to keep wires tidy.
• Document each connection in a network diagram for future reference.
• Regularly check the block to ensure cables haven't come loose or become tangled.

Staying organized can make troubleshooting and future changes much simpler.
