An inline fuse holder installs directly in a wire run to add fuse protection where there isn’t a fuse box. It’s designed to house a compatible fuse and sit in series with the circuit, so if there’s an overload or short, the fuse can open and help protect your wiring and connected devices.

• Protection: Adds overcurrent protection to accessories, add‑on circuits, and upgrades.
• Convenience: Lets you replace a blown fuse without rewiring.
• Fit & environment: Available for blade, cartridge, AGU, ANL, and other fuses, including waterproof options for marine or outdoor use.
• Placement: Often installed near the power source to limit unprotected wire length, based on your setup.

Inline fuse holders come in several styles to match different fuse formats and job types. Picking the right style helps ensure proper fit and performance for your circuit.

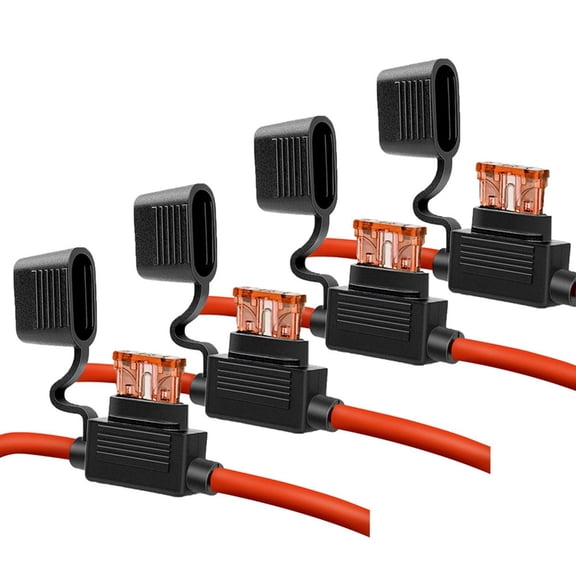

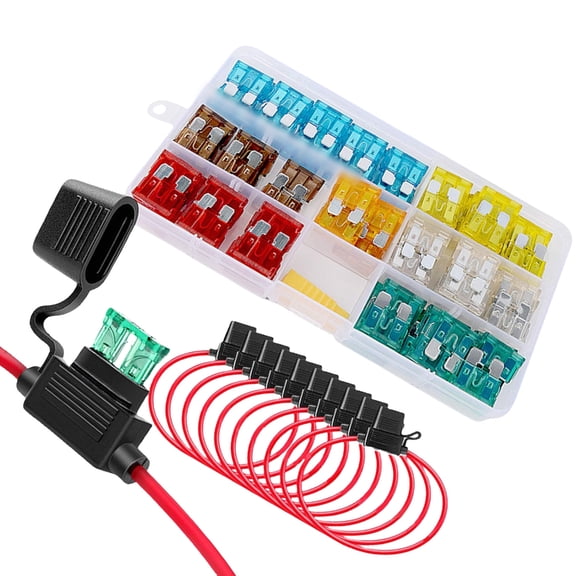

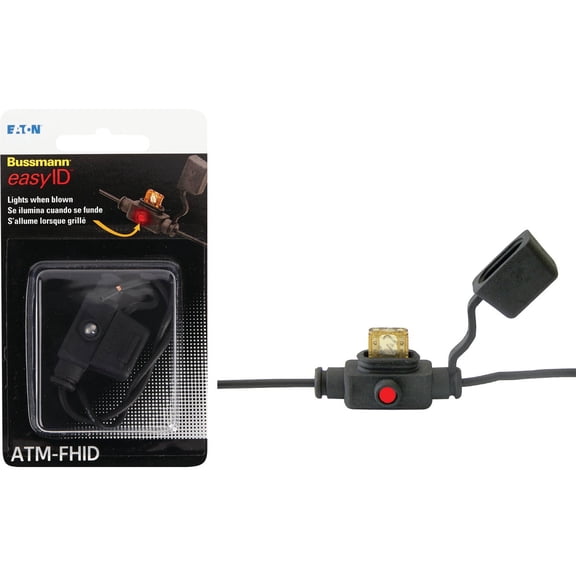

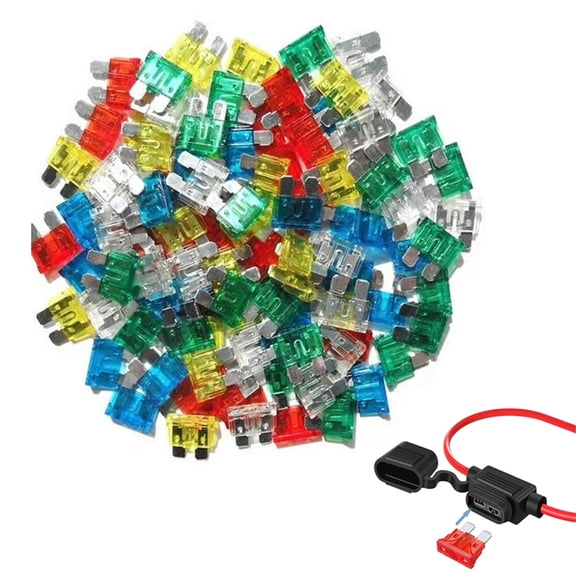

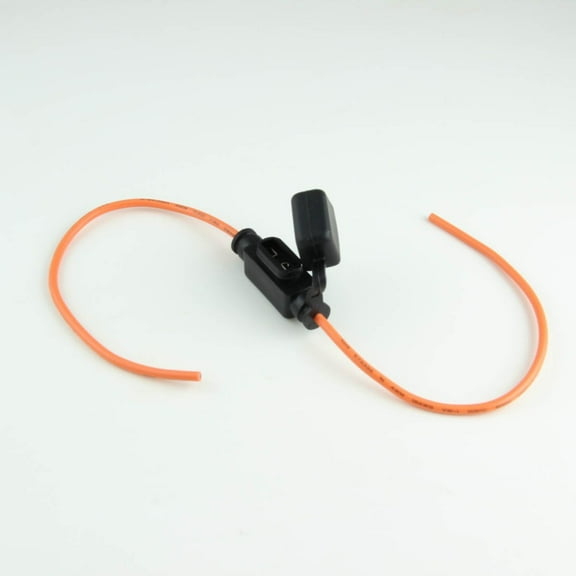

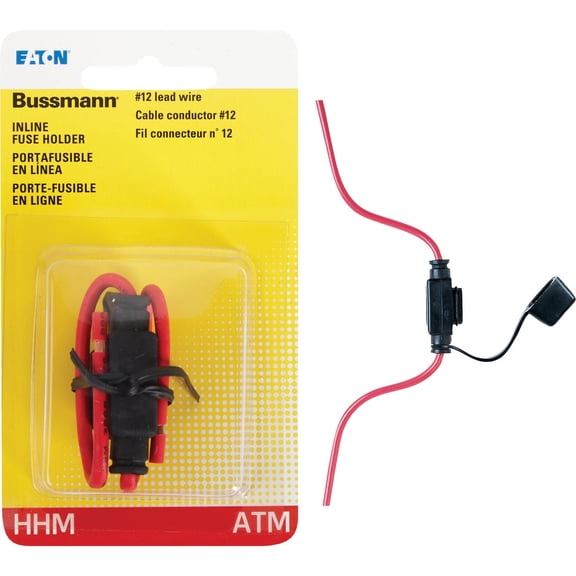

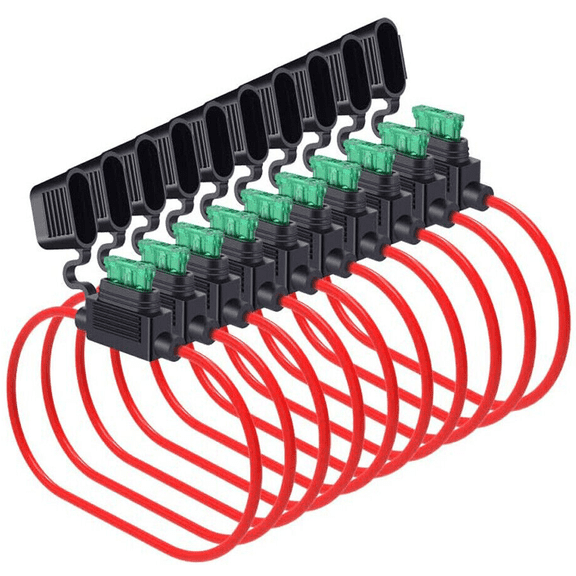

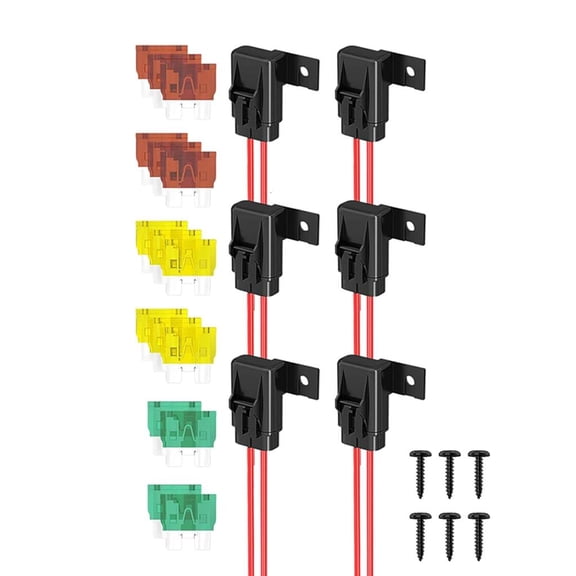

• Blade (ATC/ATO, Mini/ATM): Common in 12V automotive and accessories; compact and easy to swap.

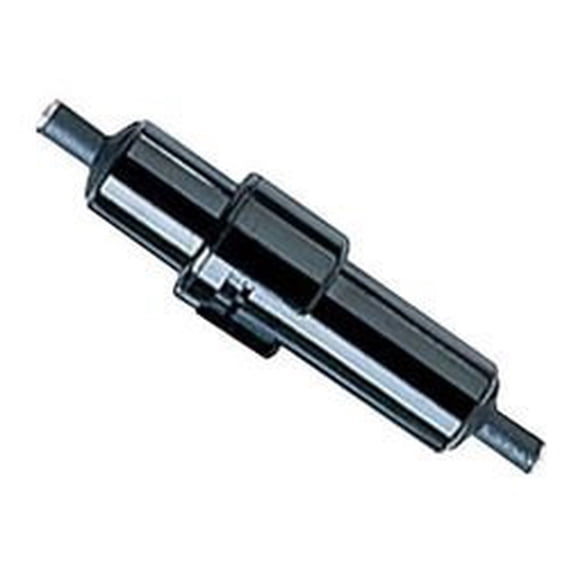

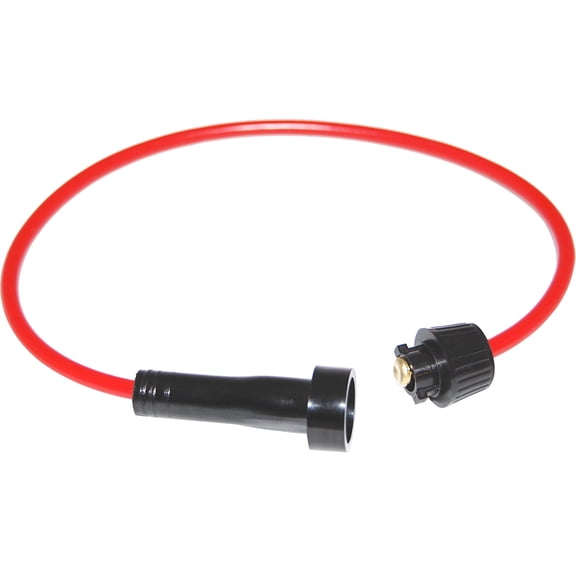

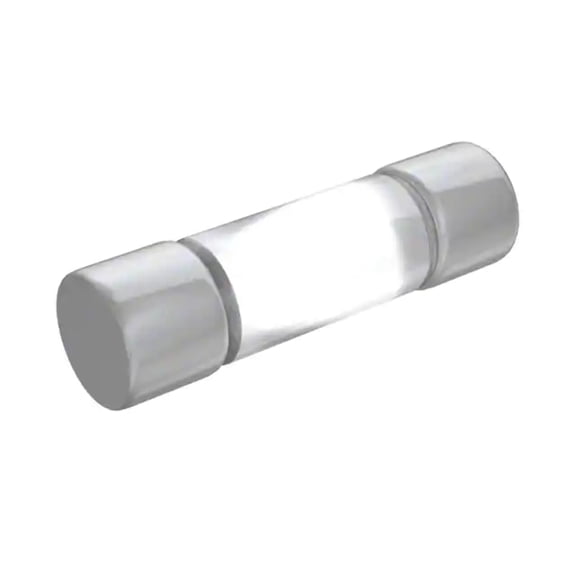

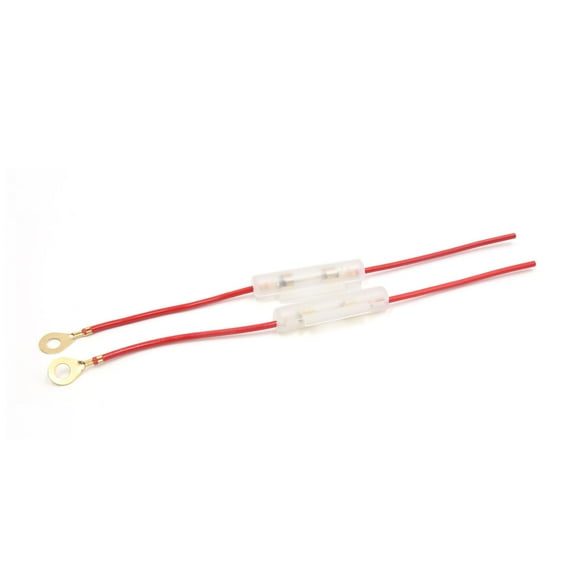

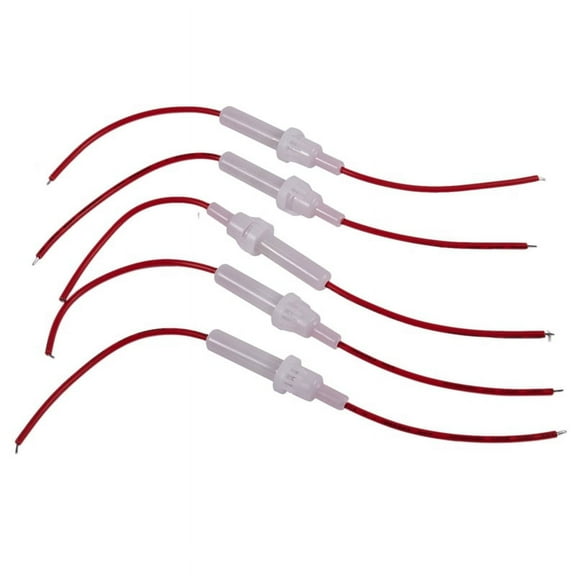

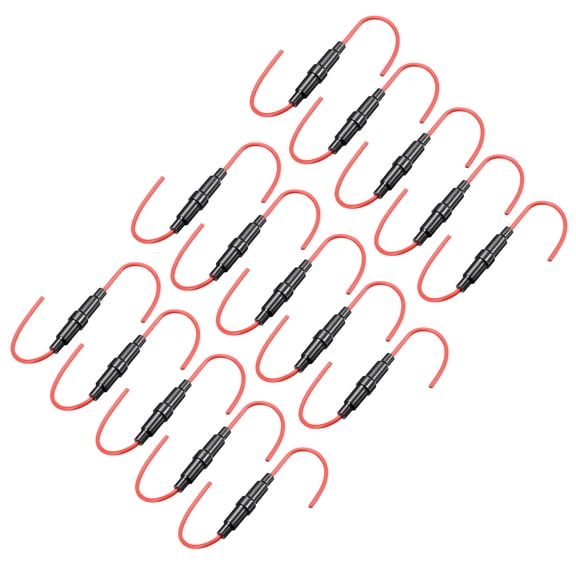

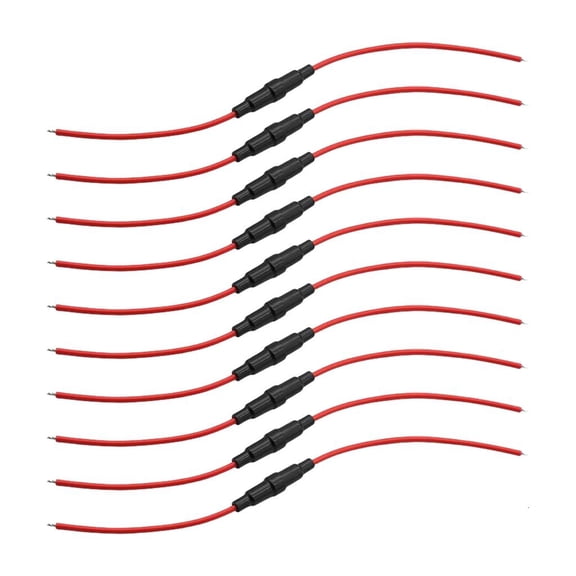

• Glass cartridge (AGC/MDL): Traditional tube fuses used in various electronics and lighting.

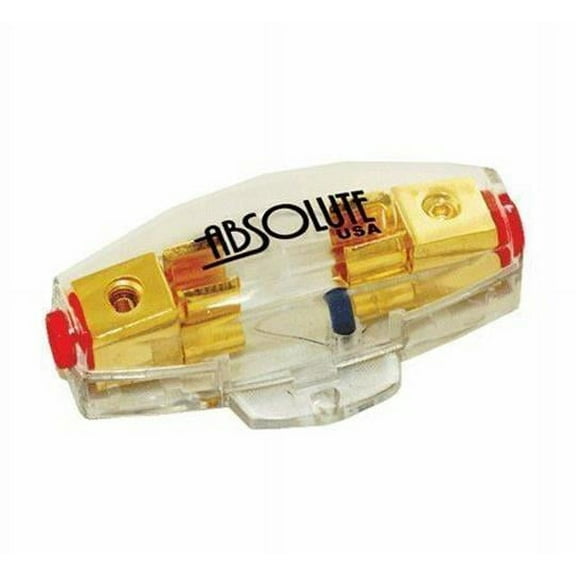

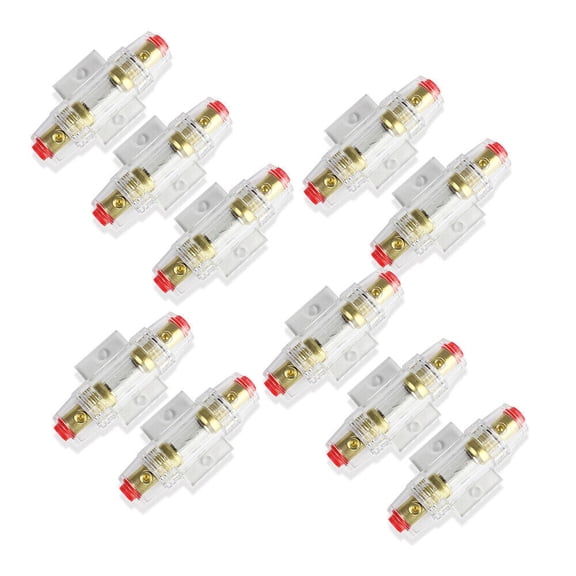

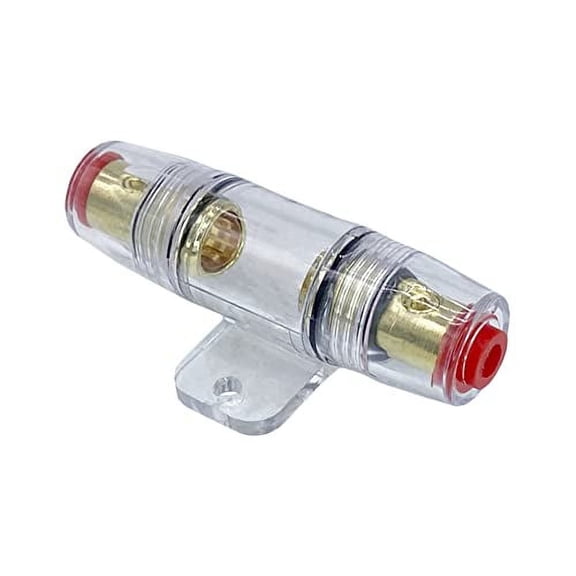

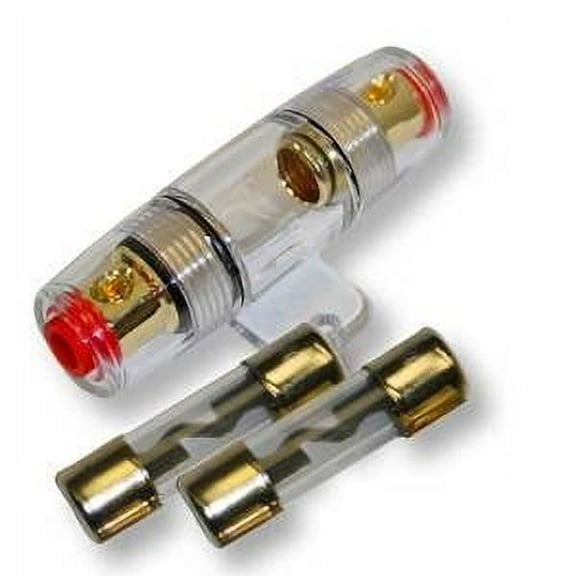

• AGU: Often used in car audio for moderate current with larger cable sizes.

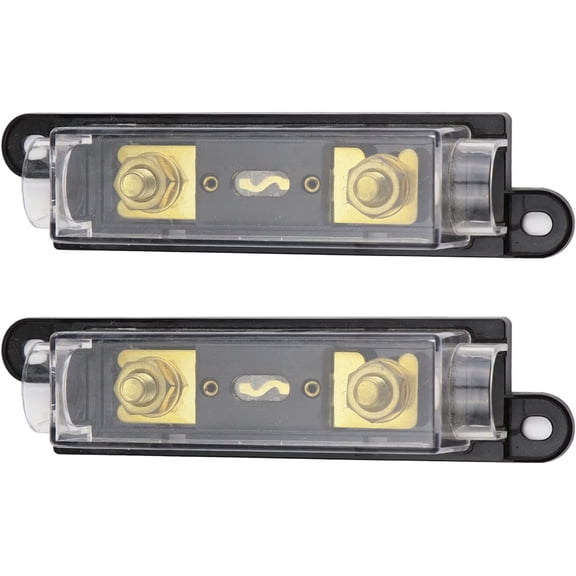

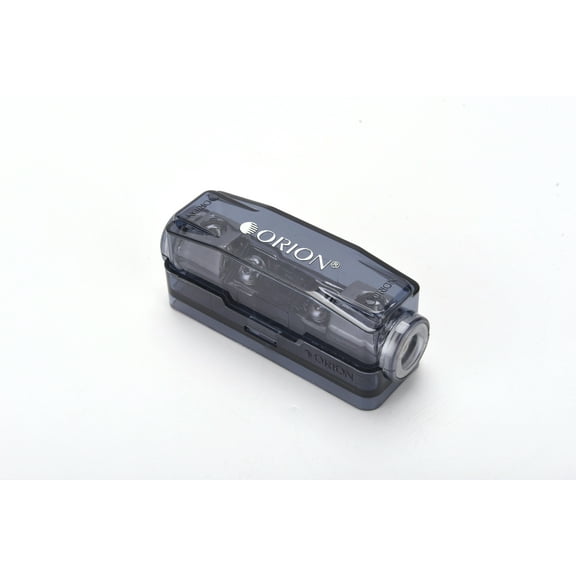

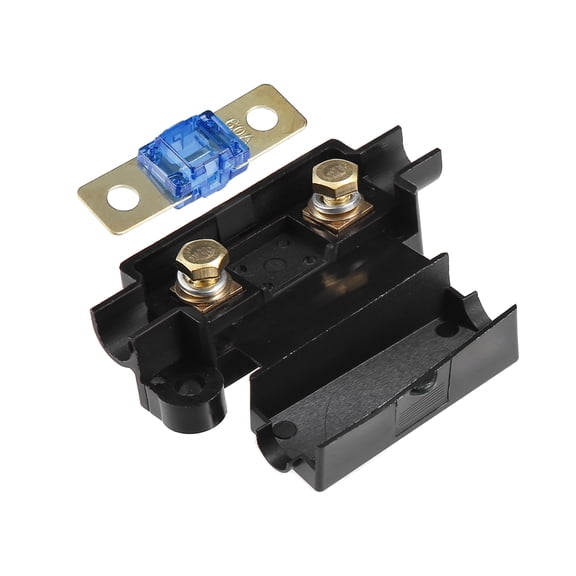

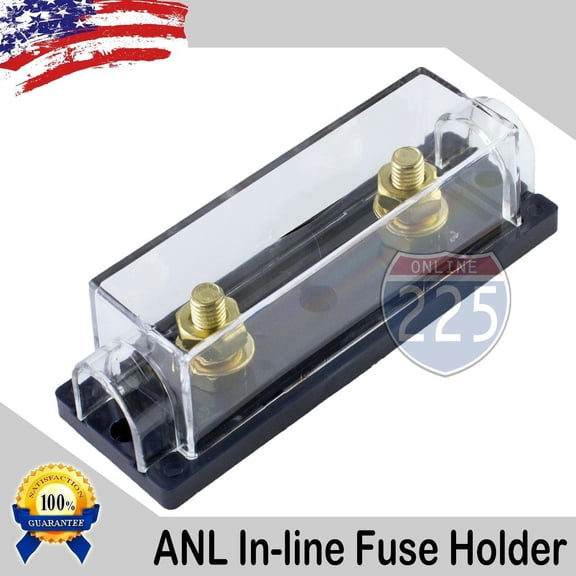

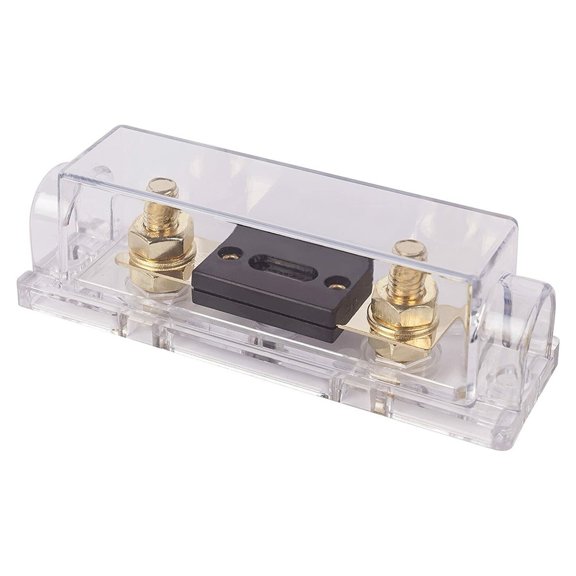

• ANL/Mini‑ANL: High‑current protection for amplifiers, inverters, or marine systems.

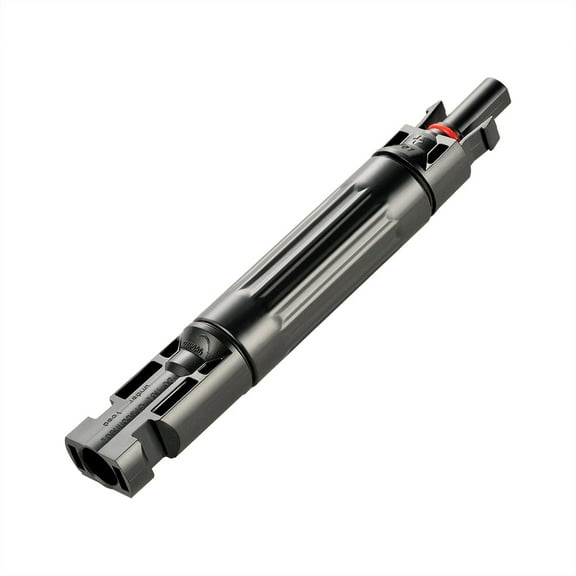

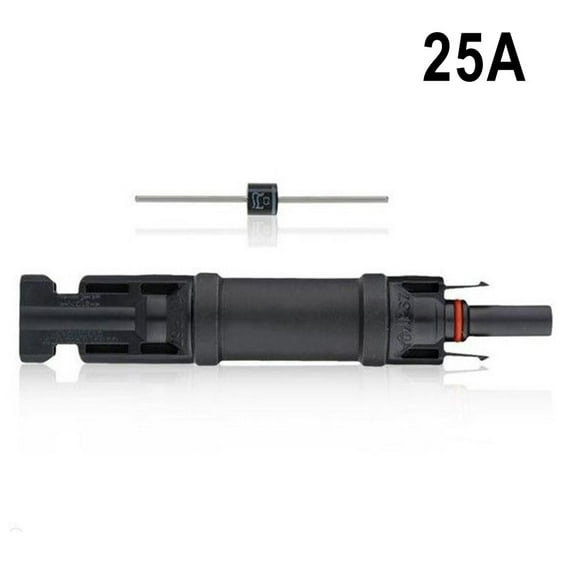

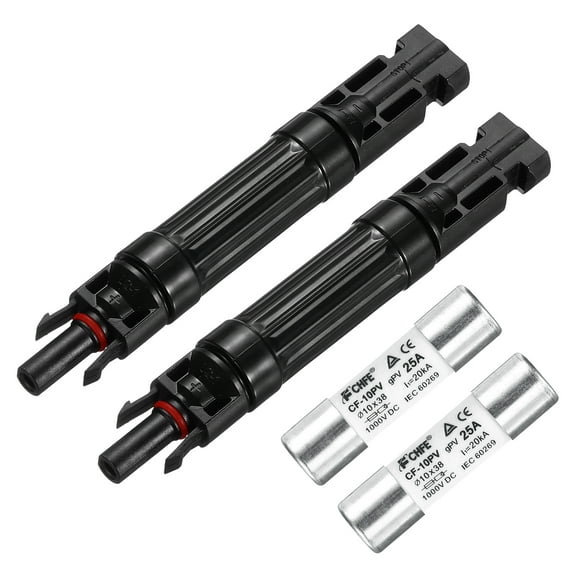

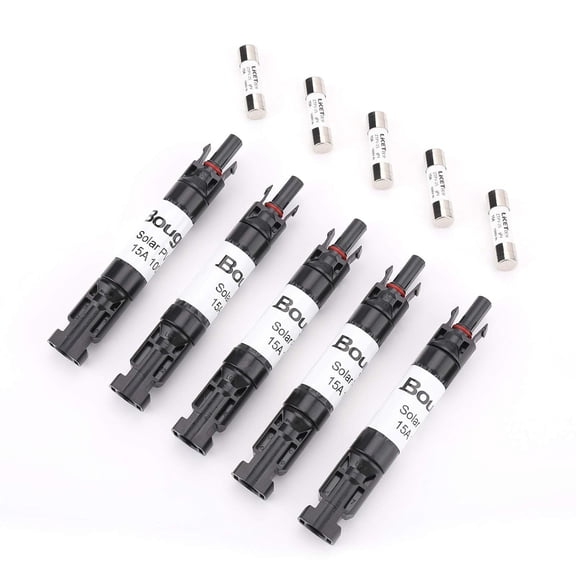

• PV/DC holders: Rated for higher DC voltages (e.g., solar applications); look for suitable voltage ratings.

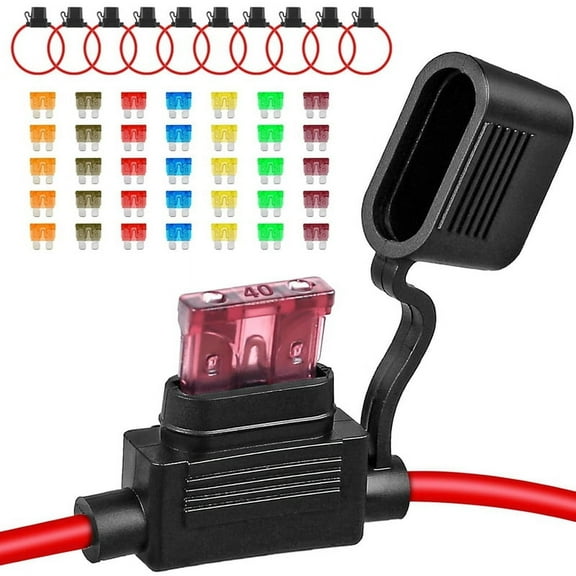

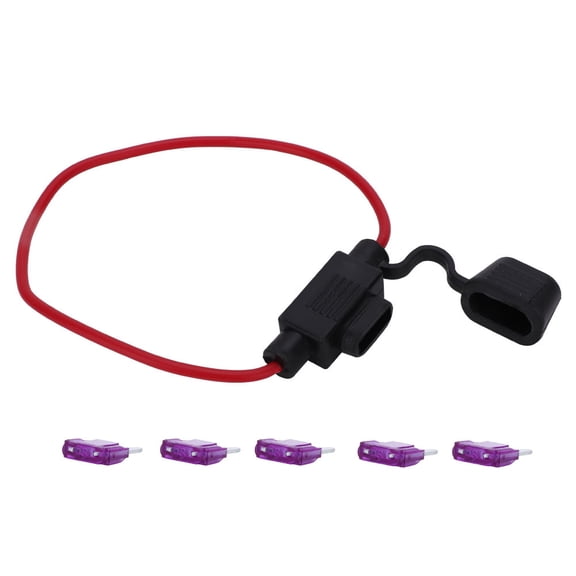

• Waterproof/heavy‑duty: Added sealing and robust construction for harsh environments.

Match the holder to your fuse type, current needs, wire gauge, and environment.

Installation can vary by product, but these general steps may help. Always follow the holder and equipment instructions for your setup.

1. Disconnect power: Remove the battery negative or unplug power before starting.
2. Choose a location: Plan a spot on the positive lead, often near the power source, to reduce unprotected wire length.
3. Confirm ratings: Ensure the holder and fuse type fit your circuit’s voltage, current, and wire gauge.
4. Cut and strip: Cut the wire where the holder will go and strip ends per connector specs.
5. Make connections: Crimp or secure set‑screw terminals per instructions; use heat‑shrink for strain relief.
6. Insert the fuse: Install the correctly rated fuse after wiring is secure.
7. Secure the holder: Mount or tie it so it won’t chafe or rattle; keep caps sealed on waterproof models.
8. Restore power and test: Verify operation and check for heat or loose connections.

Building a homemade fuse holder is generally not advisable. Improvised holders can create loose contact, overheating, or poor insulation, which may increase risk to your wiring and devices. Purpose‑built holders are designed and rated for specific fuse types, wire gauges, voltages, and environments.

• Use rated parts: Choose a holder with the right fuse format, current rating, and voltage rating for your system.
• Environment matters: For vehicles, marine, or outdoor installs, consider waterproof or harsh‑environment designs.
• Ease and value: Affordable, ready‑to‑install options are available on Walmart.com and in many stores.

If you’re unsure, consulting a qualified installer and the equipment manufacturer’s guidance can help you choose safely.

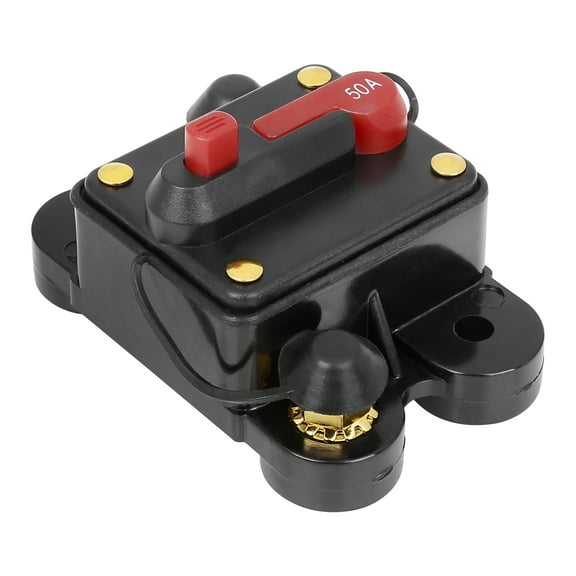

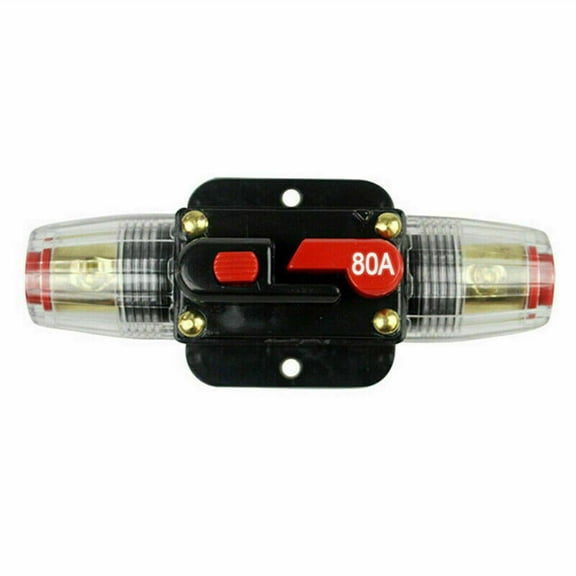

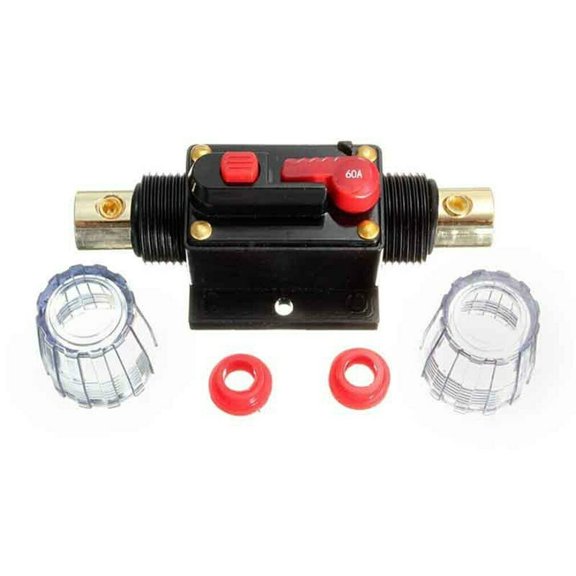

In some setups, a resettable inline breaker can serve a similar protective role to a fuse, but suitability depends on your equipment and ratings. Each approach has trade‑offs.

• Fuses: Simple, compact, and typically cost‑effective; one‑time use and then replaced.
• Inline breakers: Reusable with manual reset; may be larger and have different trip characteristics.
• Ratings and fit: Match the device’s recommended protection type, current rating, voltage rating, and wire gauge. Some applications (like certain DC or PV systems) specify fuses.
• Installation: Placement and wiring practices are similar—follow product instructions and secure all connections.

When in doubt, follow the equipment manufacturer’s protection guidance for best compatibility.
