Hydro dipping works best on hard, paintable surfaces. Some materials can be tricky and may not hold a hydrographic pattern without special prep:

• Low-energy plastics (like some polyethylene or polypropylene): Paint may not bond reliably.
• Silicone or very rubbery parts: Flexible, oily surfaces can shed coatings.
• Unsealed foams and fabrics: They absorb water and distort the water transfer film.
• Porous wood (unprimed): Grain telegraphs through; sealing/priming is typically needed.
• Electronics or heat‑sensitive items: Water, activator, and clear coat can damage components.
• High-flex items: Frequent bending can crack the finish.

For the best results, look for items that can be cleaned, lightly sanded, primed, and clear coated. If you’re unsure about a material, test on a small, hidden area first—results can vary by surface and prep.

With most hydrographic film, the printed/ink side faces up and the water‑soluble side faces down onto the water. A quick, simple check can help:

1. Cut a small corner from your water transfer film.
2. Lightly moisten your fingertips with clean water and touch one side of the film.
3. If it sticks to your wet fingers, that’s the water‑soluble side—place that side down on the water. The opposite side (with the pattern) stays up.

Tips: Handle film with dry, clean gloves, avoid creases, and let it hydrate per the film guidance before applying activator. Because films vary, a quick test piece can reduce waste and help you dial in orientation.

After dipping, a clear coat can help protect the hydrographic pattern and set the final sheen.

1. Rinse and dry: Gently rinse residue until the surface feels clean. Let it dry thoroughly.
2. Choose a finish: Gloss, satin, or matte clears each offer a different look. Some clears include UV protection.
3. Apply light coats: Use multiple light passes rather than one heavy coat to reduce runs. Respect recommended flash times.
4. Cure fully: Curing times vary by product and conditions. Avoid handling or reassembly until fully cured.

Ensure your clear coat is compatible with your base coat and activator system. For high‑touch items, additional coats may improve durability. Results can vary with technique and environment.

Here’s a beginner‑friendly flow for hydro dipping with water transfer film:

1. Prep the item: Clean, degloss with light sanding, then prime if needed. Apply a base coat (lighter colors often make patterns like wood grain, camo, or carbon fiber pop).
2. Cut the film: Leave a 1–2 inch margin around your part. Note pattern direction.
3. Hydrate the film: Lay it flat on lukewarm water and allow it to hydrate per the film guidance.
4. Activate: Apply activator evenly to liquefy the pattern.
5. Dip: Submerge at a steady angle to minimize bubbles and stretching.
6. Rinse and dry: Rinse residue gently, then dry before clear coat.

Practice on simple shapes first. Room conditions and film types vary, so small test dips can help you dial in times and technique.

Match hydrographic film size to your largest surface area, plus extra for wrap and handling.

• Measure the part: Add 2–3 inches on all sides to cover curves and give room to grip.

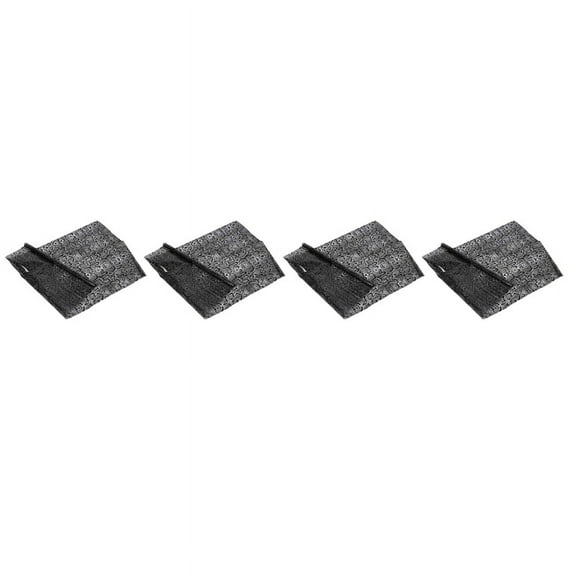

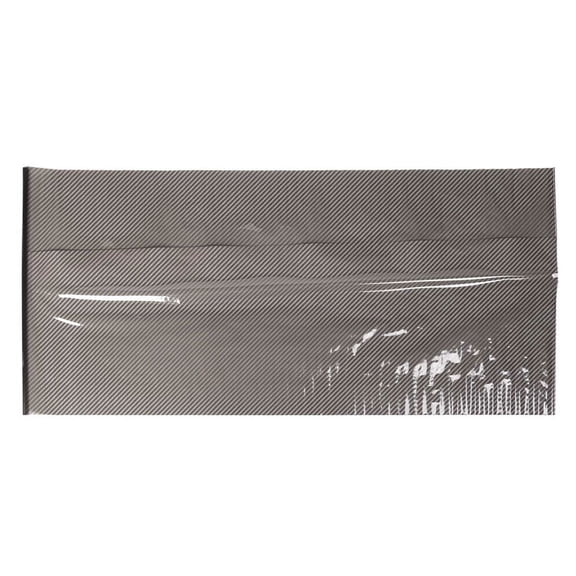

• Common sizes: Sheets around 19"×38" suit smaller items; 0.5×2 m (about 19.7"×78.7") helps with medium panels or helmets; 50 cm×100 cm sheets are handy for tests and small projects.
• Pattern scale: Large flames or skulls can overwhelm small parts; finer camo or carbon fiber often looks cleaner on compact pieces.
• Orientation and seams: Directional prints (wood grain) may need more length; non‑directional patterns can hide overlaps better.

If in doubt, choose a bit larger—extra film can reduce repositioning and waste.
