Ferrite Chokes(114)

Ferrite chokes can reduce radio‑frequency interference (RFI/EMI) riding along cables. They’re useful when you notice issues like:

• Buzzing or whining from speakers when a USB or power cable is connected.
• Random mouse/keyboard glitches on long USB cables.
• Static on radios or two‑way gear near LED lighting or chargers.
• Lines or flicker on video from long, unshielded leads.

They mainly address high‑frequency noise traveling on the outside of a cable (common‑mode). They’re less helpful for low‑frequency hum from ground loops or for damaged shielding. Choosing a proper size and trying one or two placements can improve results, but performance varies with the cable type, length, and the specific noise source.

A ferrite choke is a magnetic core that adds impedance to high‑frequency currents on a cable. At radio frequencies, it behaves like a lossy inductor, turning interference energy into heat (typically minimal). Because the desired signal on a pair largely cancels magnetically, the choke mostly resists unwanted common‑mode noise.

• Higher frequencies generally see higher impedance within the ferrite’s operating range.

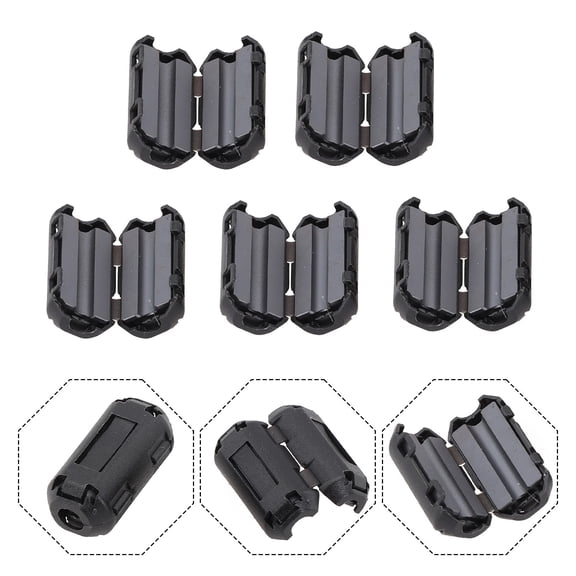

• Clip‑on cores let you add suppression without rewiring.

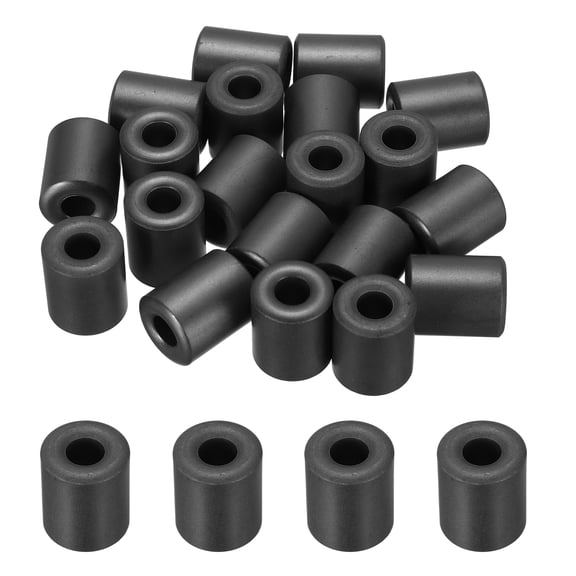

• Passing a cable through a ring (toroid) multiple times can increase impedance.

This approach can help quiet EMI/RFI without modifying your devices, though effectiveness depends on the interference frequency, cable construction, and layout.

Placement matters, and a bit of trial‑and‑error helps.

1. Start near the noise source—usually at the device end of the cable.
2. On power leads, place the choke close to the equipment’s input.
3. On data or A/V cables, try the device end first; if needed, add one at the other end.
4. With ring cores, looping the cable through 2–3 times can boost suppression.
5. Keep the choke on the outside of the insulation; don’t open equipment.

Unplug mains‑powered gear before installing. After placement, test and reposition if needed. The best location can vary with cable length, routing, and the interference frequency.

They’re handy, but there are trade‑offs to consider.

• Limited effect at low frequencies—won’t cure 50/60 Hz ground‑loop hum.
• May slightly soften very high‑speed edges if mismatched to the cable (e.g., some fast data links).
• Adds bulk near connectors; a poor fit can stress jacks or ports.
• Effectiveness varies by ferrite material and frequency; the wrong mix may underperform.
• Ferrite cores can be brittle; avoid drops and over‑tightening clips.

They’re best used as a low‑cost troubleshooting step for EMI/RFI. If noise remains, consider cable routing, shielding quality, or grounding practices as additional avenues.

Match the inner diameter (ID) of the choke to your cable’s outer diameter (OD).

1. Measure the cable OD, including its jacket.

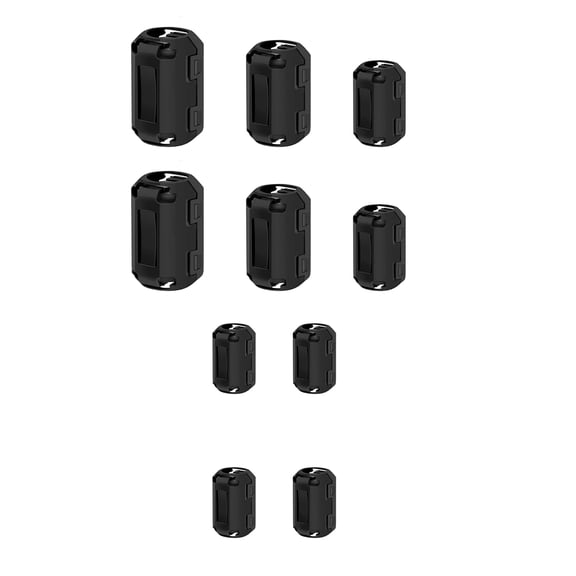

2. Choose an ID just slightly larger (about 0.5–1 mm) so it snaps snugly. Common clip‑on sizes include 3.5 mm, 5 mm, 7 mm, 9 mm, and 13 mm.
3. For thin leads, use smaller IDs; for thicker or multiple cables, select a larger ID or a ring core and loop the cable through.
4. Consider the interference range—different ferrite materials target different frequencies; review the product’s frequency curve if available.

If you’re unsure, assorted‑size packs allow testing and fine‑tuning. You can also stack chokes, though results vary by setup.
