An AV multi-out is a single port that can send audio and video through different analog formats using the right breakout cable. Depending on the device and cable, it can carry composite (yellow/red/white RCA), S-Video, or component (YPbPr) signals to TVs, switchers, or capture gear.

• Flexibility: Swap cable types to match the inputs on your TV or AV setup.

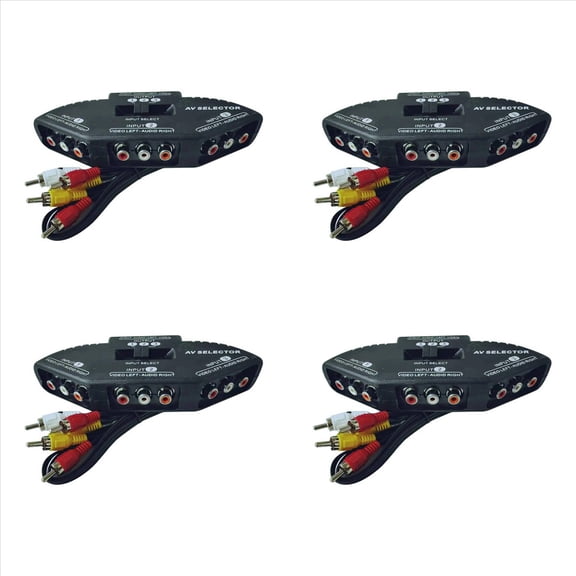

• Common uses: Hooking up older players, game systems, or camcorders to AV switch boxes or splitters.
• Modern TVs: If your TV only has HDMI, you may need a compatible analog-to-HDMI converter.

Signal type and quality come from the source device and the cable you use.

It’s all about signal direction. AV Out sends audio/video from a source device, while AV In receives audio/video into a display or recorder.

• AV Out: Found on players, consoles, or cameras. Connect this to an input on a TV, switcher, or splitter.
• AV In: Found on TVs, monitors, and capture devices. This is where the signal goes.

Tips: Match color-coded RCA plugs (yellow/red/white) or use the correct component cables. Avoid connecting output to output. If your display only has HDMI, a suitable converter may be needed. You can review input/output details in each product’s specs on the product page.

They carry video and audio in different ways. HDMI is a digital, all-in-one cable used by most modern TVs. AV multi-out is an analog port that uses specific breakout cables (composite, S-Video, or component) to connect older gear.

• Signal type: HDMI is digital; AV multi-out is analog.
• Quality: HDMI supports HD and higher on capable devices; analog is typically SD, or up to 720p/1080i via component on some sources.
• Cabling: HDMI is one cable; AV multi-out needs the correct adapter/cable.
• Compatibility: Analog sources may require a powered converter to plug into HDMI-only TVs.

Check product listings to confirm input/output options before you buy.

It varies by the signal type your device sends through the multi-out port and the cable you attach.

• Composite or S-Video: Generally standard definition, about 480i/576i.

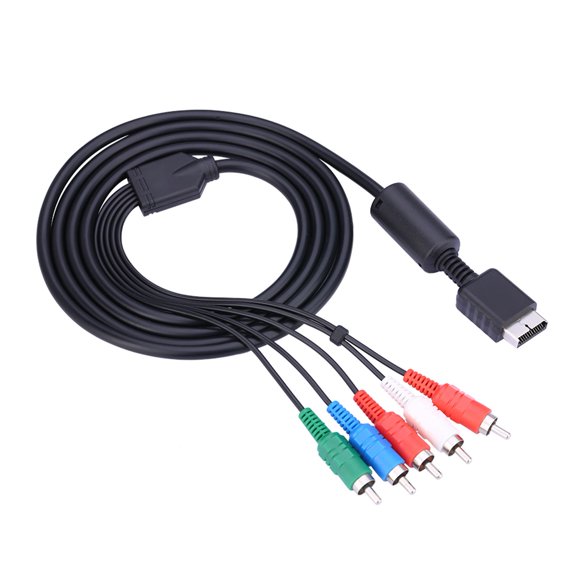

• Component (YPbPr): On some devices, may support 480p, 720p, or 1080i.

The multi-out port doesn’t upscale by itself; it passes whatever the source generates. Converters can output 720p or 1080p for HDMI inputs, but that doesn’t add detail to an SD signal. Results can vary with device settings, cable quality, and cable length. Review the source device’s manual and the product specs to confirm supported resolutions.

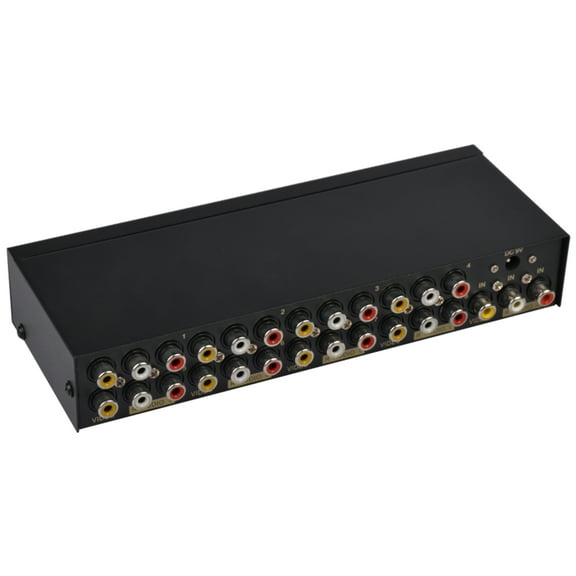

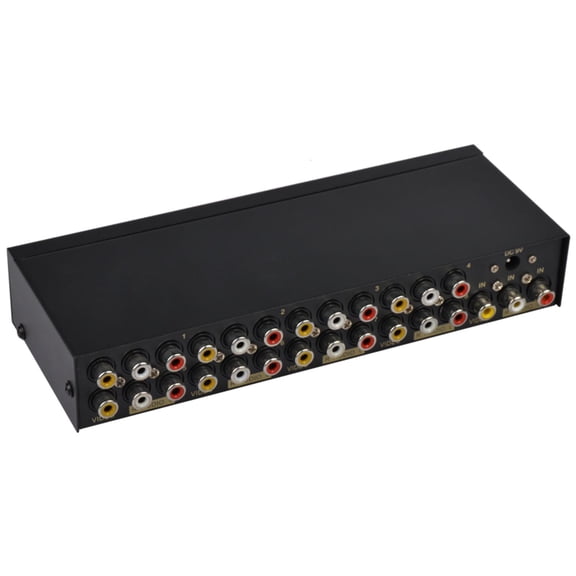

A powered AV splitter (for composite or component) can distribute one source to multiple displays more reliably than simple Y-cables.

1. Choose a splitter that matches your signal type (composite or component) and the number of outputs you need.
2. Connect the source’s AV Out to the splitter’s input.
3. Run short, good-quality cables from each splitter output to each TV’s AV In.
4. Plug in and power the splitter if required, then select the correct input on each TV.

Powered splitters can help reduce picture dimming or noise across several screens. Cable quality and run length may affect results. Check each product’s description for supported formats and ports.
