Installing a 12V dash gauge is a straightforward project if you follow these steps:

1. Identify the correct gauge slot or mounting location on your dashboard.
2. Disconnect your vehicle’s battery to avoid any electrical issues.
3. Connect the gauge’s power wire to an appropriate 12V power source, following the included wiring instructions.
4. Attach the sensor or signal wire based on the gauge type (voltage, boost, oil temp, etc.).
5. Securely ground the gauge to a metal part of the chassis.
6. Test everything before fully securing the assembly.

Refer to the specific instructions that come with your product, as wire colors and connection points can vary by model.

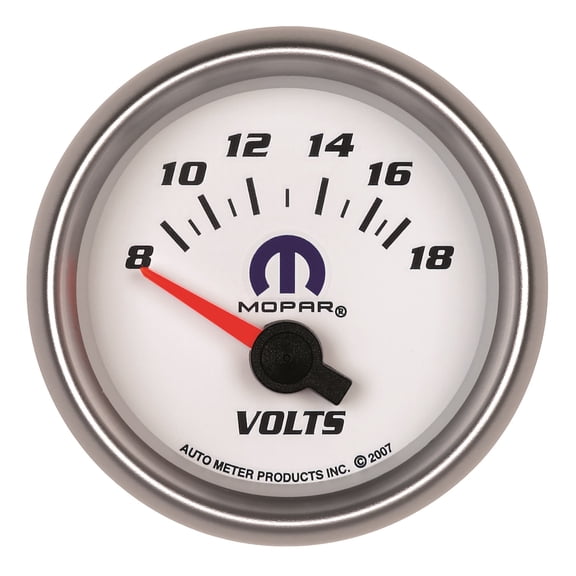

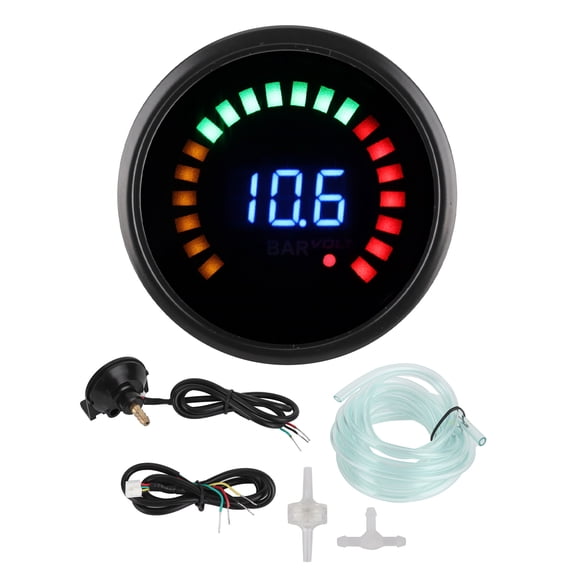

A voltmeter gauge provides live feedback on your vehicle's electrical system health. It displays the current voltage (in volts) being delivered by the battery and alternator.

• Typical readings range from 12V (engine off) to 13-14.5V (engine running and charging).
• Readings below or above this range could signal battery or alternator problems.

Most 2-inch (52mm) universal gauges are designed to fit a wide range of vehicles, including cars, boats, RVs, and motorcycles. However, it’s important to:

• Check your dashboard or panel for a compatible mounting spot.
• Verify your vehicle runs on a 12V electrical system.
• Review installation requirements, as some custom work or adapters may be needed, especially for older or specialty vehicles.

When in doubt, consult your vehicle’s manual or an automotive expert before purchasing.

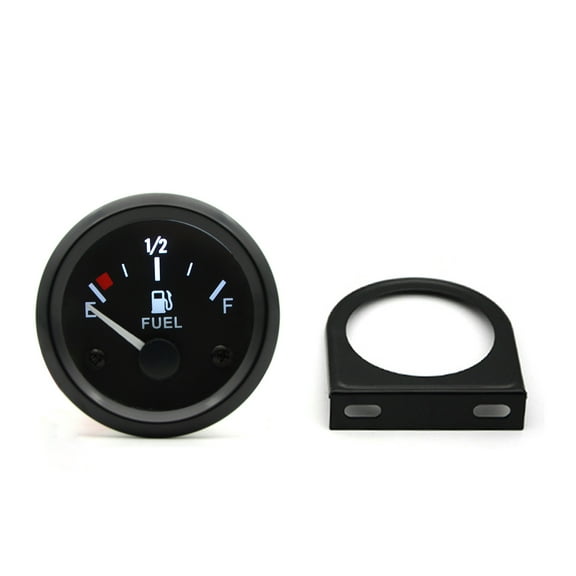

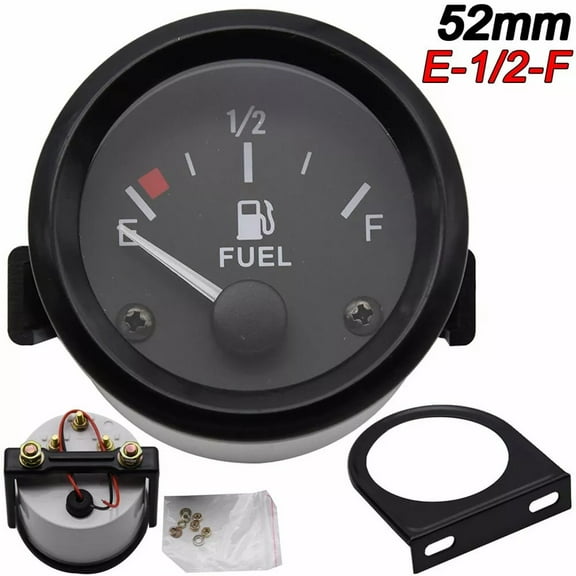

Reading a pointer-style fuel gauge is simple:

• The needle moves between “E” (empty), “1/2” (half full), and “F” (full) as your fuel level changes.

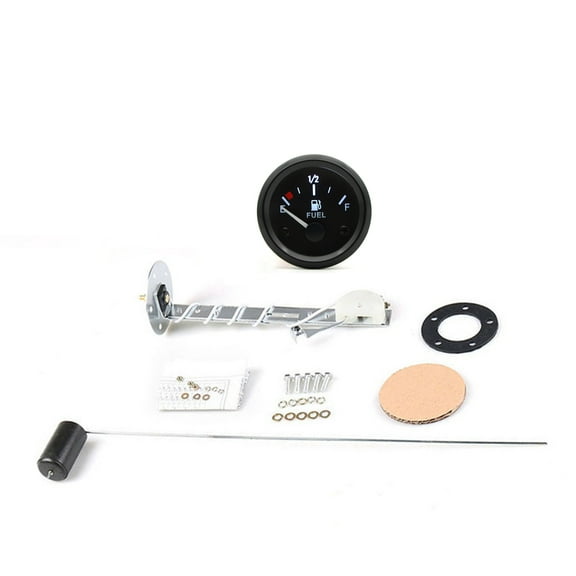

• The gauge receives signals from a sensor or float in your tank, updating in real-time.

To keep readings accurate, avoid abrupt stops/starts, which can briefly shift the float. If you notice inconsistent readings, it may be time to check the sensor or wiring for issues.

To safely clean analog dash meters:

1. Use a soft microfiber cloth to wipe the lens and dial gently.
2. If dirt persists, dampen the cloth with a little water—avoid excess moisture.
3. Stay away from harsh cleaners or sprays, as they could damage the dial or electronics.
4. For hard-to-reach spots, a soft-bristled brush can help remove dust.

Regular, gentle cleaning will keep your gauges clear and easy to read for years to come.
