Hero image 0 of Simrad NAC-3 High Current Course Computer [000-13250-001], 0 of 3

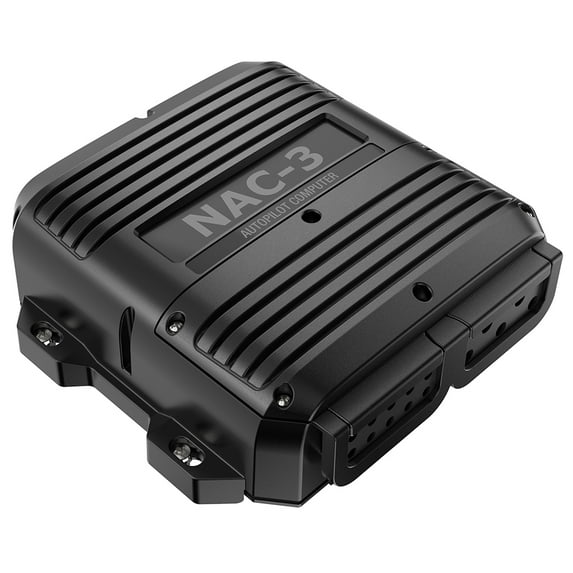

Simrad NAC-3 High Current Course Computer [000-13250-001]

(No ratings yet)

Key item features

Autopilot Core: The Simrad NAC-3 is the central processing unit for autopilot systems, incorporating B&G Reflex Sailing algorithms for optimal yacht control in diverse conditions.
Robust Power: It features a 12/24V input with a 30A continuous output (50A peak) for hydraulic or mechanical drive units, and a 3A clutch output.
Broad Compatibility: Designed for vessels 10 meters (33 feet) or greater, it supports high-current drives and solenoid valves.
Versatile Connectivity: Includes NMEA 0183 (1 in, 1 out) and NMEA 2000 interfaces, along with options for NMEA2000 (RF25) or Frequency (RF300) rudder feedback.
External Controls: Offers connections for NFU remotes, external mode input for system selection, and an external alarm output for buzzers or relays.
Durable Design: The unit boasts an IPx7 waterproof rating, ensuring resilience in marine environments.
Included Accessories: The package comes with the NAC-3 computer, a 0.61m (2-ft) NMEA extension cable (N2KEXT-2RD), and an NMEA T-connector (N2K-T-RD T).

Generated by AI

Specs

Boat accessory type
Autopilot Computer
Brand
Simrad
Material
New
Has written warranty
No
Model
SIM00013250001
Weight
4 lb

Current price is $1,699.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Sat, Jun 20

.

Order within 4 hr 2 min

|

Sold and shipped by Boating Store

4.657430730478589 stars out of 5, based on 1191 seller reviews(4.7)

Free 30-day returns

More seller options (1)

Starting from $1,699.00

About this item

Product details

Simrad NAC-3 High Current Autopilot Computer

Model: 000-13250-001
UPC: 9420024154397

B&G Reflex Sailing algorithms
12/24V input 30A continuous output (50A peak)
3A Clutch output
NMEA 0183 Interface (1 input, 1 output)
Solenoid output capable
Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Freq. Rudder -Feedback (RF300)
Solenoid output capable for larger vessels
Connection for NFU Remotes
External Mode input, External open/close or pulse contact for SYSTEM SELECT
External alarm output for buzzer/relay

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Specifications

Waterproof rating	IPx7
Power	12/24 V DC +10-30%
NMEA 2000 LEN	1
Interfaces
Reversible motor control of rudder	Max continious load 30A, peak 50A for 1s
On/off solenoid control of rudder	12/24V DC, common, load range 10mA to 10A, off current <1mA
Engage output for bypass/clutch	12/24V DC, min 10mA, max 3A
Rudder angle, frequency input	15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000
NFU port/stbd input and mode indicator output	External open/close contact, common ret, contact current max 30mA
Mode input	External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
External alarm output for buzzer/relay	Max 100mA, voltage level as local supply
Networking
NMEA0183	1 in 1 Out
NMEA 2000	1

What's in the Box:

NAC-3
N2KEXT-2RD - 0.61 m (2-ft) NMEA
N2K-T-RD T

Simrad NAC-3 High Current Autopilot Computer 000-13250-001

Simrad NAC-3 High Current Autopilot Computer

Model: 000-13250-001
UPC: 9420024154397

B&G Reflex Sailing algorithms
12/24V input 30A continuous output (50A peak)
3A Clutch output
NMEA 0183 Interface (1 input, 1 output)
Solenoid output capable
Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Freq. Rudder -Feedback (RF300)
Solenoid output capable for larger vessels
Connection for NFU Remotes
External Mode input, External open/close or pulse contact for SYSTEM SELECT
External alarm output for buzzer/relay

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Specifications

Waterproof rating	IPx7
Power	12/24 V DC +10-30%
NMEA 2000 LEN	1
Interfaces
Reversible motor control of rudder	Max continious load 30A, peak 50A for 1s
On/off solenoid control of rudder	12/24V DC, common, load range 10mA to 10A, off current <1mA
Engage output for bypass/clutch	12/24V DC, min 10mA, max 3A
Rudder angle, frequency input	15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000
NFU port/stbd input and mode indicator output	External open/close contact, common ret, contact current max 30mA
Mode input	External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
External alarm output for buzzer/relay	Max 100mA, voltage level as local supply
Networking
NMEA0183	1 in 1 Out
NMEA 2000	1

What's in the Box:

NAC-3
N2KEXT-2RD - 0.61 m (2-ft) NMEA
N2K-T-RD T
