Hero image 0 of RV1106 Mini Linux Development Board RISC-V Architecture 256MB Flash Artificial Intelligence Development Board, 0 of 7

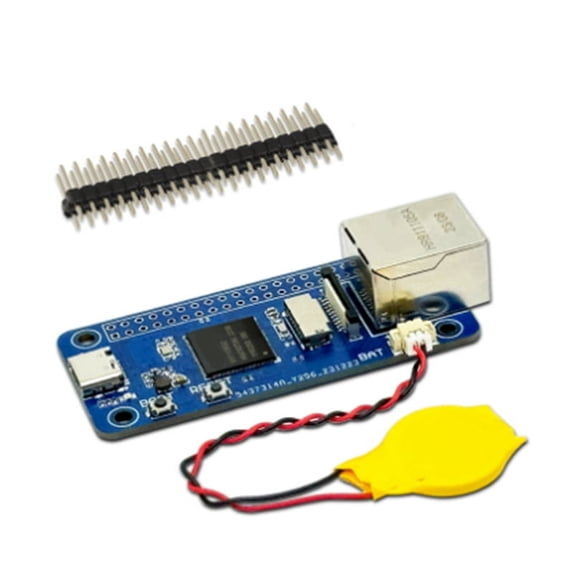

RV1106 Mini Linux Development Board RISC-V Architecture 256MB Flash Artificial Intelligence Development Board
(No ratings yet)
Key item features
- 5. The onboard 100Mbps Ethernet port has high computational accuracy, and the RV1106G2 chips are equipped with the 4th generation NPU of -Micro.
- 4. Built in RISC-V MCU design, supports low-power fast startup, supports 250ms fast capture, and simultaneously loads AI model library, enabling recognition to be completed within 1 second.
- 1. A7+MCU supports 0.5T computing power and 128MB DDR3L memory.
- 3. Supports multiple interfaces such as GPIO, UART, SPI, I2C, USB, etc., facilitating development and debugging.
- 2. Equipped with -Micro's self-developed 4th generation NPU, it has high computational accuracy and supports mixed quantization of int4, in8, and int16. The computing power of int8 is 0.5TOPS, while the computing power of int4 can reach 1. OTOPS. It supports various development environments such as C, C++, and Micro-Python.
Specs
- Model nameRV1106
- BrandUnbranded
- ColorBlue
- Has written warrantyNo
Current price is USD$22.67
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between Jul 15 - Jul 21
|
Sold and shipped by Huote Electronics
4.036496350364963 stars out of 5, based on 137 seller reviews(4.0)137 seller reviews
Free 30-day returns
About this item
Product details
Product Introduction:
The RV1106 mini LINUX development board is developed based on the -micro RV1106G2 chip, with a 100Mbps Ethernet port and 256MB onboard
NAND FLASH memory SD card slot and camera interface. Support NAND FLASH image burning development board to export various IOs, including GPIO, UART, SPI, , etc., for developers to quickly develop and debug. The module supports USB recognition and burning image files through a USB data cable.
Parameter:
1. Type-C port: power supply port+burning port
2. UART serial port: Connect USB to TTL module for serial port debugging
3. BOOT button: and hold the power button to enter the burning mode
4. Micro-SD card holder: mounting SD card storage
5. SPL Flash Memory: Used for SPI NAND FLASH image burning
6. Camera interface: compatible with SC3336 3MP Camera (A) camera
7. ETH Ethernet interface
8. LED indicator lights
9. MCU: RV1106 (LQFN-128)
Battery model: battery with 2-pin cable interface, 1.25mm
Due to different product batches, the appearance , which does not affect the use.
Colour:Blue
Material:PC
Size:30x68.5mm
Package Contents:
1 x development board(with bettery)
1 x double row pin 20PIN
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
The RV1106 mini LINUX development board is developed based on the -micro RV1106G2 chip, with a 100Mbps Ethernet port and 256MB onboard
NAND FLASH memory SD card slot and camera interface. Support NAND FLASH image burning development board to export various IOs, including GPIO, UART, SPI, , etc., for developers to quickly develop and debug. The module supports USB recognition and burning image files through a USB data cable.
Parameter:
1. Type-C port: power supply port+burning port
2. UART serial port: Connect USB to TTL module for serial port debugging
3. BOOT button: and hold the power button to enter the burning mode
4. Micro-SD card holder: mounting SD card storage
5. SPL Flash Memory: Used for SPI NAND FLASH image burning
6. Camera interface: compatible with SC3336 3MP Camera (A) camera
7. ETH Ethernet interface
8. LED indicator lights
9. MCU: RV1106 (LQFN-128)
Battery model: battery with 2-pin cable interface, 1.25mm
Due to different product batches, the appearance , which does not affect the use.
Colour:Blue
Material:PC
Size:30x68.5mm
Package Contents:
1 x development board(with bettery)
1 x double row pin 20PIN
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- 5. The onboard 100Mbps Ethernet port has high computational accuracy, and the RV1106G2 chips are equipped with the 4th generation NPU of -Micro.
- 4. Built in RISC-V MCU design, supports low-power fast startup, supports 250ms fast capture, and simultaneously loads AI model library, enabling recognition to be completed within 1 second.
- 1. A7+MCU supports 0.5T computing power and 128MB DDR3L memory.
- 3. Supports multiple interfaces such as GPIO, UART, SPI, I2C, USB, etc., facilitating development and debugging.
- 2. Equipped with -Micro's self-developed 4th generation NPU, it has high computational accuracy and supports mixed quantization of int4, in8, and int16. The computing power of int8 is 0.5TOPS, while the computing power of int4 can reach 1. OTOPS. It supports various development environments such as C, C++, and Micro-Python.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Model name
RV1106
Brand
Unbranded
Color
Blue
Has written warranty
No
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Similar items you might like
Based on what customers bought
EZP2023 High-Speed USB SPI FLASH Programmer EZP2023 Compiler Support 24/25/93/95 EEPROM 25 Flash Bios Chip $19.05
$1905current price $19.05EZP2023 High-Speed USB SPI FLASH Programmer EZP2023 Compiler Support 24/25/93/95 EEPROM 25 Flash Bios Chip
For LicheeRV Nano Mini Development Board SG2002 WIFI6 Ethernet 2Gbit AI Visual RISCV B $23.13
$2313current price $23.13For LicheeRV Nano Mini Development Board SG2002 WIFI6 Ethernet 2Gbit AI Visual RISCV B
W5500 Ethernet Network Module Hardware Tcp/Ip 51/Stm32 Microcontroller Program Over W5100 $7.28 Was $9.60
$728current price $7.28, Was $9.60$9.60W5500 Ethernet Network Module Hardware Tcp/Ip 51/Stm32 Microcontroller Program Over W5100
Teensy 2.0 USB AVR Development Board ATMEGA32U4 Expansion Board with Data Cable for $13.88
$1388current price $13.88Teensy 2.0 USB AVR Development Board ATMEGA32U4 Expansion Board with Data Cable for
RK3308B Quad-Core CPU Development Board DDR3-2Gbit IoT Development Board,Support Ethernet Port and Wifi,1 * Development Board $29.69
$2969current price $29.69RK3308B Quad-Core CPU Development Board DDR3-2Gbit IoT Development Board,Support Ethernet Port and Wifi,1 * Development Board
Tang Nano 9K FPGA Development Board GOWIN GW1NR-9 RISC-V -Compatible $25.88
$2588current price $25.88Tang Nano 9K FPGA Development Board GOWIN GW1NR-9 RISC-V -Compatible
FT232 USB UART Board Mini Interface USB to UART Serial Port Module FT232RNL for Win7/8/8.1/10/11 Android $12.52
$1252current price $12.52FT232 USB UART Board Mini Interface USB to UART Serial Port Module FT232RNL for Win7/8/8.1/10/11 Android
ESP32-S3 MINI Development Board Support 2.4GHz Wi-Fi and Bluetooth5 RISC-V Low Power Without 0.42-Inch OLED Display,1 * Development Board,Black $11.89
$1189current price $11.89ESP32-S3 MINI Development Board Support 2.4GHz Wi-Fi and Bluetooth5 RISC-V Low Power Without 0.42-Inch OLED Display,1 * Development Board,Black
ESP32C6-TINY SuperMini Microcontroller Development Board Support WIFI Bluetooth with Onboard WS2812 ESP32-C6FH4 $10.27
$1027current price $10.27ESP32C6-TINY SuperMini Microcontroller Development Board Support WIFI Bluetooth with Onboard WS2812 ESP32-C6FH4
8X CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module $12.78
$1278current price $12.788X CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module
Yammee 10PCS ATTINY88 Development Platform 3.0 ATmega328 Extended Compatible Microcontroller Development Board $23.47
$2347current price $23.47Yammee 10PCS ATTINY88 Development Platform 3.0 ATmega328 Extended Compatible Microcontroller Development Board
Tang Primer 25K Core Board High Cloud GW5A RISCV FPGA Development Board PMOD SDRAM $24.63
$2463current price $24.63Tang Primer 25K Core Board High Cloud GW5A RISCV FPGA Development Board PMOD SDRAM
10PCS for MB102 Breadboard Power Supply Module 2-Way 3.3V 5V for MB102 Breadboard Module $13.31
$1331current price $13.3110PCS for MB102 Breadboard Power Supply Module 2-Way 3.3V 5V for MB102 Breadboard Module
5X STM32F401 Development Board, STM32F401CEU6 STM32F4 Learning Board, Support for MicroPython/ Programming $21.82
$2182current price $21.825X STM32F401 Development Board, STM32F401CEU6 STM32F4 Learning Board, Support for MicroPython/ Programming
4Pcs ESP32 Breakout Board GPIO 1 Into 2 for 38PIN Narrow Version ESP32 ESP-WROOM-32 Microcontroller Development Board $17.64
$1764current price $17.644Pcs ESP32 Breakout Board GPIO 1 Into 2 for 38PIN Narrow Version ESP32 ESP-WROOM-32 Microcontroller Development Board
STM32F103C8T6 ARM STM32 Minimum System Development Board Module 2pcs $14.99
$1499current price $14.99STM32F103C8T6 ARM STM32 Minimum System Development Board Module 2pcs
CH347 High-Speed Programmer Module 24 EEPROM 25 SPI FALSH Supports TTL $13.98
$1398current price $13.98CH347 High-Speed Programmer Module 24 EEPROM 25 SPI FALSH Supports TTL
CH32V003 Development Board Kit Evaluation Board 32-Bit General- RISC-V MCU Functional Application Assessment $22.55
$2255current price $22.55CH32V003 Development Board Kit Evaluation Board 32-Bit General- RISC-V MCU Functional Application Assessment

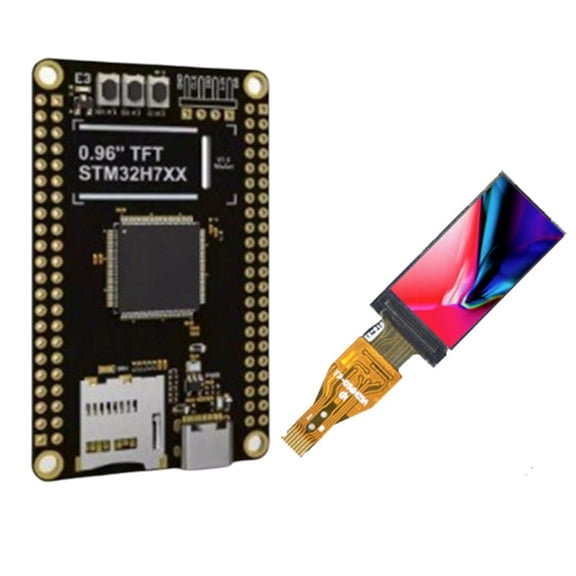

STM32H7 Core Board 0.96 Inch Screen STM32H750VBT6 Development Board Minimum System Board STM32 Development Board $21.95
