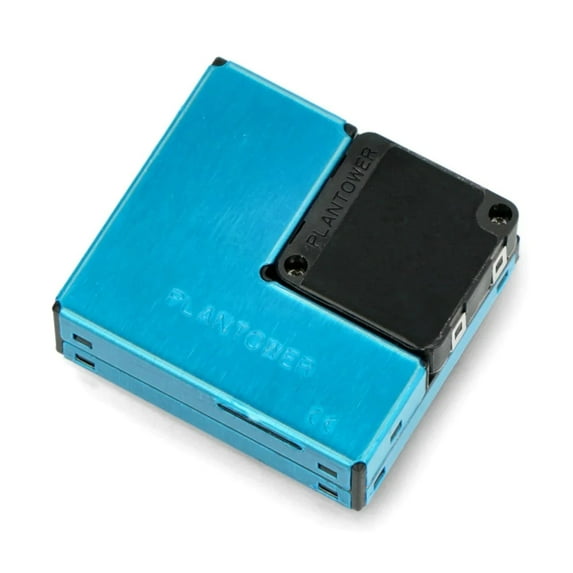

PMSA003 Air Monitor Sensor Module PM2.5 Air, Particle Dust Sensor
PMSA003 Air Monitor Sensor Module PM2.5 Air, Particle Dust Sensor
Hero image 0 of PMSA003 Air Monitor Sensor Module PM2.5 Air, Particle Dust Sensor, 0 of 4

PMSA003 Air Monitor Sensor Module PM2.5 Air, Particle Dust Sensor

(No ratings yet)

Key item features

PMSA003 Air Monitor Sensor Module PM2.5 Air, Particle Dust Sensor

Specs

Brand, UnbrandedModel, PMSA003Size, 38mmx35mmx12mmHas written warranty, No

About this item

Product details

You can track and measure the quality of the air around you with this PMSA003I Air Quality Sensor, so you can breathe easily. This sensor is excellent for keeping track of air quality.

The PMSA003 is a general-purpose digital particle concentration sensor that outputs data in a digital interface form and can be used to measure the mass and number of suspended particles in the air per unit volume. To give precise and timely concentration data, the sensors can be integrated into a range of environmental devices that measure suspended particulate matter in the atmosphere.

Parameter  Index Unit
Particle Range of measurement

0.3~1.0;   1.0~2.5; 2.5~10   Micrometer(μm)
Particle   Counting Efficiency 50%@0.3µm   98%@≥0.5µm
Particle Effective Range
    (PM2.5 standard)
0~500 μg/m³
Particle Maximum Range
    (PM2.5 standard)*
≥1000  μg/m³
Particle   Resolution 1 μg/m³
Particle Maximum Consistency Error (PM2.5
    standard data)
±10%@100~500μg/m³
±10μg/m³@0~100μg/m³

Particle   Standard Volume 0.1 Litre(L)
Single   Response Time <1  Second(s)
Total   Response Time <10  Second(s)
DC   Power Supply  Typ:5.0 Min:4.5 Max:5.5  Volt(V)
Active   Current ≤100  Milliampere(mA)
Standby   Current ≤200  Milliampere(mA)
Interface   Level  L<0.8 @3.3 H>2.7@3.3  Volt(V)
Working   Temperature Range -10~+60  ℃
Working   Humidity Range  0~99
Storage   Temperature Range -40~+80 ℃
MTTF ≥3 Year
Physical   Size 38mm×35mm×12mm mm
  • Zero percent false alarms
  • Timely reaction
  • accurate data
  • 0.3 micrometres is the smallest discernible particle diameter.
  • High anti-interference performance as a result of the six-sided shielding patent construction.
  • Optional air inlet and outflow directions to accommodate various designs
