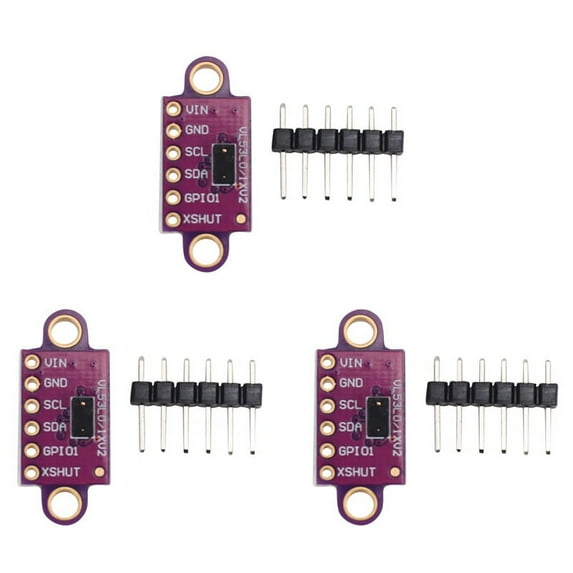

3X Time-Of-Flight Distance Sensor -VL53L0XV2 Module for
3X Time-Of-Flight Distance Sensor -VL53L0XV2 Module for
Hero image 0 of 3X Time-Of-Flight Distance Sensor -VL53L0XV2 Module for, 0 of 8

3X Time-Of-Flight Distance Sensor -VL53L0XV2 Module for

(No ratings yet)

Key item features

  • Ranging measurements are available through the sensor's I²C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.
  • The VL53L0 uses technology to precisely measure how long it takes for emitted pulses of infrared laser-light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement.
  • The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from +/-3% at best to over +/-10% in less optimal conditions.)
  • The is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for Minicontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.
  • Time-of-Flight Distance Sensor Breakout -VL53L0XV2 Module for ; The is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the , so we recommend careful reading of the datasheet (1MB pdf) before using this product.

Specs

Brand, UnbrandedModel, -VL53L0XV2Retail packaging, BundleHas written warranty, No

About this item

Product details

PIN Description
Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
Color:
material: plastic
Package includes :
3 x -VL53L0XV2V L53L0X Time-of-Flight Distance Sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Ranging measurements are available through the sensor's I²C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.
  • The VL53L0 uses technology to precisely measure how long it takes for emitted pulses of infrared laser-light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement.
  • The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from +/-3% at best to over +/-10% in less optimal conditions.)
  • The is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for Minicontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.
  • Time-of-Flight Distance Sensor Breakout -VL53L0XV2 Module for ; The is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the , so we recommend careful reading of the datasheet (1MB pdf) before using this product.
