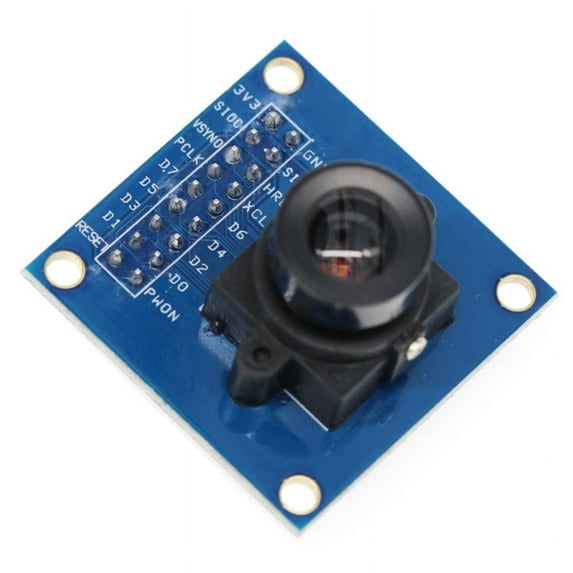

OV7670 300KP VGA Camera Module Lens Assembly for Arduino Camera Assembly Part
(No ratings yet)
Key item features
- OV7670 images sensor, small size, low operating voltage, provides all the functions of single VGA camera and image processor.
- SCCB bus control, output whole frame, sub-sample, take window and other ways of 8-bit impact data of various resolutions.
- VGA images up to 30 frames/second, can control over image quality, data format and transmission way.
- Gamma-curve, white balance, saturation, chroma, etc. can be programmed through SCCB interface.
- Application of proprietary sensor technology improves image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, tails, floating scatter, etc., resulting in clear, stable color images.
Specs
Compatible models, OV7670
Compatibility, Arduino
Model name, OV7670 300KP VGA Camera Module Lens Assembly
Brand, ROZYARD
Has written warranty, No
Accessories, OV7670 Camera Module
Compatible models
OV7670
Compatibility, Arduino
Compatibility
Arduino
Model name, OV7670 300KP VGA Camera Module Lens Assembly
Model name
OV7670 300KP VGA Camera Module Lens Assembly
Brand, ROZYARD
Brand
ROZYARD
Has written warranty, No
Has written warranty
No
Accessories, OV7670 Camera Module
Accessories
OV7670 Camera Module
About this item
Product details
Features:
OV7670 images sensor, small size, low operating voltage, provides all the functions of single VGA camera and image processor.
SCCB bus control, output whole frame, sub-sample, take window and other ways of 8-bit impact data of various resolutions.
VGA images up to 30 frames/second, can control over image quality, data format and transmission way.
Gamma-curve, white balance, saturation, chroma, etc. can be programmed through SCCB interface.
Application of proprietary sensor technology improves image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, tails, floating scatter, etc., resulting in clear, stable color images.
Specifications:
Sensor array: 640X480
IO-voltage: 2.5V to 3.0V (internal LDO to core power 1.8V)
Power operation:60mW/15fpsVGAYUV
Hibernation:less than 20μA
Temperature operation:-30℃ to 70℃
Stable operation:0℃ to 50℃
Output Format: (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical Size:1/6"
Field of view:25°
Max. chastity:30fps VGA
Sensitivity:1.3V/(Lux-sec)
Signal to noise ratio:46dB
Dynamic range:52dB
Viewing mode: Progressive
Electronic exposure: 1 line to 510 lines
Pixel area:3.6μmx3.6μm
Dark current: 12mV/s at 60°C
High sensitivity for low light level applications
Low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface
RawRGB, RGB(GRB4:2:2,RGB565/555/444), YUV(4:2:2) and YCbCr(4:2:2) output formats
Support VGA, CIF, and various sizes from CIF to 40x30
VarioPixel subsampling method
Automatic impact control functions: automatic exposure & automatic gain control, automatic white balance, automatic light streak removal, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP with noise elimination and bad point compensation function
Support image scaling, lens loss of light compensation, 50/60Hz auto detect
Saturation, edge enhancement, noise reduction auto-adjustment
Package includes:
1x OV7670 Camera Module
- OV7670 images sensor, small size, low operating voltage, provides all the functions of single VGA camera and image processor.
- SCCB bus control, output whole frame, sub-sample, take window and other ways of 8-bit impact data of various resolutions.
- VGA images up to 30 frames/second, can control over image quality, data format and transmission way.
- Gamma-curve, white balance, saturation, chroma, etc. can be programmed through SCCB interface.
- Application of proprietary sensor technology improves image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, tails, floating scatter, etc., resulting in clear, stable color images.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Compatible models
OV7670
Compatibility
Arduino
Model name
OV7670 300KP VGA Camera Module Lens Assembly
Brand
ROZYARD
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Similar items you might like
Based on what customers bought
Arduino Yun Yellow Case $5.99
$599current price $5.99Arduino Yun Yellow Case
Treedix 3pcs Compatible with Arduino GY-302 BH1750 Light Intensity Illumination Module $9.99
$999current price $9.99Treedix 3pcs Compatible with Arduino GY-302 BH1750 Light Intensity Illumination Module
Best seller, Raspberry Pi Zero 2 W Case Kit with Raspberry Pi Zero 2 W Case Power Supply $11.30
Best seller
$1130current price $11.30Raspberry Pi Zero 2 W Case Kit with Raspberry Pi Zero 2 W Case Power Supply

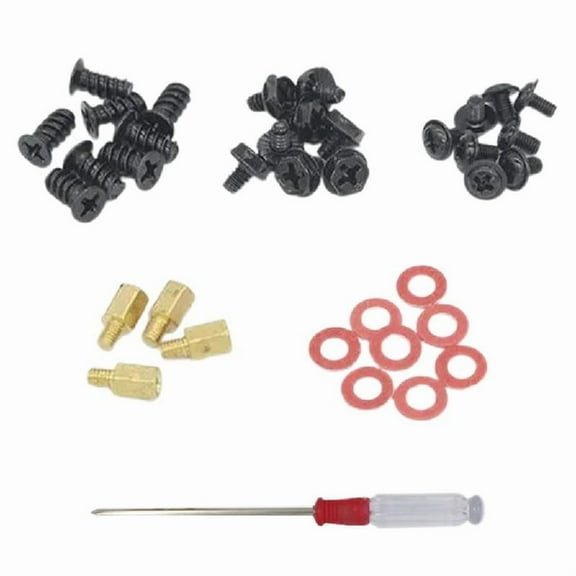

122.4 out of 5 Stars. 12 reviews2.4 out of 5 starsClearance, 228-Piece Computer Screw Assortment Kit for Motherboard Mounting and Hardware Repairs $8.69 Was $9.69
