Overview

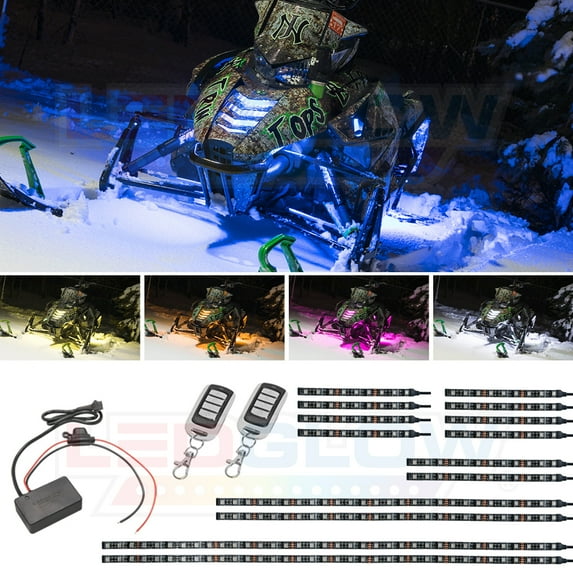

LEDGlow's 14pc Advanced Million Color Snowmobile Lighting Kit utilizes SMD LED technology, resulting in vibrant multi-color lighting and lighting patterns that transform the look of your snowmobile. This LED kit includes (8) 6”, (2) 8”, (2) 18” and (2) 24” flexible 5050 SMD LED strips. Each flex strip can be bent or curved to your preferred position, giving you the ability to build any layout you choose. Select colors and lighting effects to create a fully customized appearance when you’re on the slopes at night.
Waterproof Control Box & Wireless Remote
The control box is programmed with 15 Solid Color Modes, 2 Color Cycle Modes including Advanced Million Color Mode, 3 Flash Modes and 1 Fade Mode. Solid colors include Blue, Green, Red, Pink, Orange, Teal and more. The waterproof design seals the circuit board for protection from snow, water, dirt and mud. With a compact design of 1-1/2” x 2-5/8” x 3/4”, it is easy to store under the seat in the battery compartment. Attached to the control box is 20” of wire with a male modular connection that plugs into the included 6pc power harness. 10” of power and ground wires connect directly to the snowmobile’s 12 volt battery. The power wire features a waterproof 10 Amp Inline Blade Fuse that protects the power circuit.
Flex Strip Sizes & Installation
The strip lengths were carefully mapped out to ensure maximum brightness and maximum impact for your snowmobile. We recommend installing the longer strips under the tail and running boards, and the shorter strip lengths to the front section in the hood/grille area. The 6pc power harness connects the light strips to the control box, with additional wiring harnesses also included to make installation even easier. Mount each strip to a desired location with the double-sided tape which is pre-attached. Applying the included adhesion promoter before mounting the strip creates an extra layer of adhesion between the LED strip and the surface of the snowmobile.
LEDGlow Guarantee
LEDGlow includes free lifetime technical support and a one year limited warranty with each purchase.
