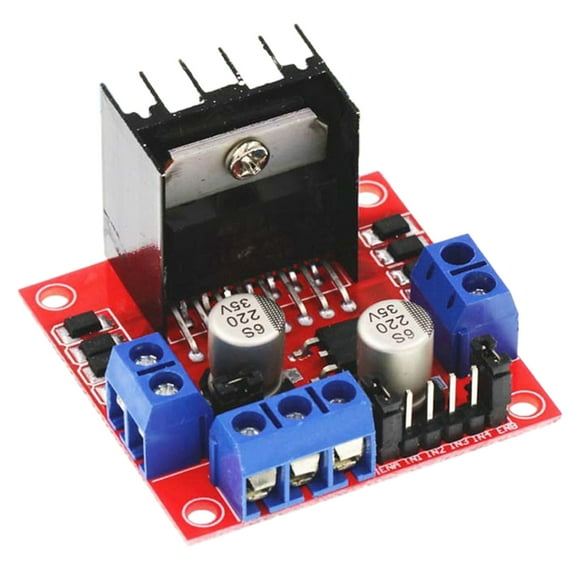

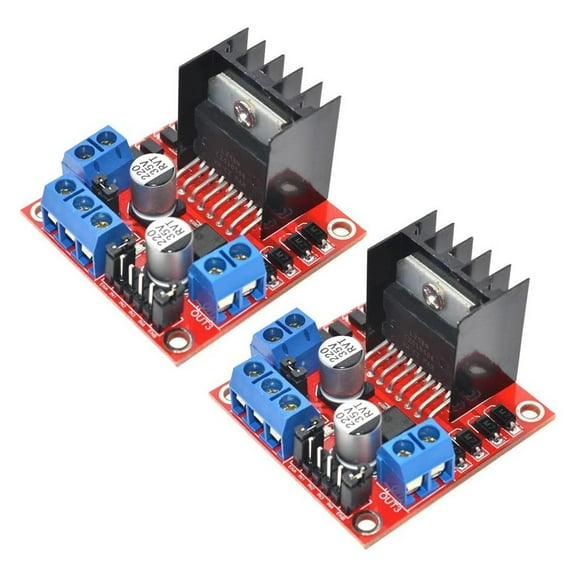

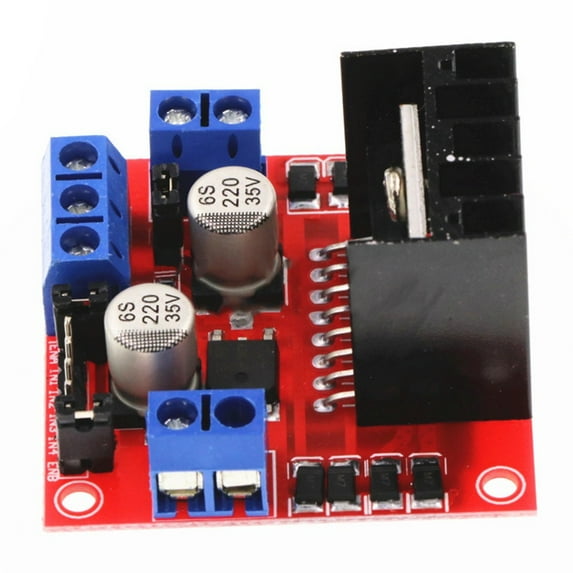

L298N Dual H Bridge Stepper Motor Driver Controller Board Module For Arduino

features:

*This module USES L298N as the main drive chip, with strong driving ability, low heat and strong anti-interference ability.

*Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12 v, please use the external power supply 5 v logic.

*This module USES a large capacity filter capacitance, a continuation protection diode, can improve reliability.

Specifications:

Module name : dual H bridge motor drive module

Work mode : H bridge drive (double road)

Main control chip : L298N

Packaging : electrostatic bag

Logical voltage : 5V

Drive voltage : 5v-35v

Logical current : 0mA-36mA

Driving current : 2A(MAX single bridge)

Storage temperature : - 20 ℃ to + 135 ℃

Maximum power : 25W

Weight : 30 g

Peripheral dimensions : 43*43*27mm

Package Contents:1*motor drive module

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
