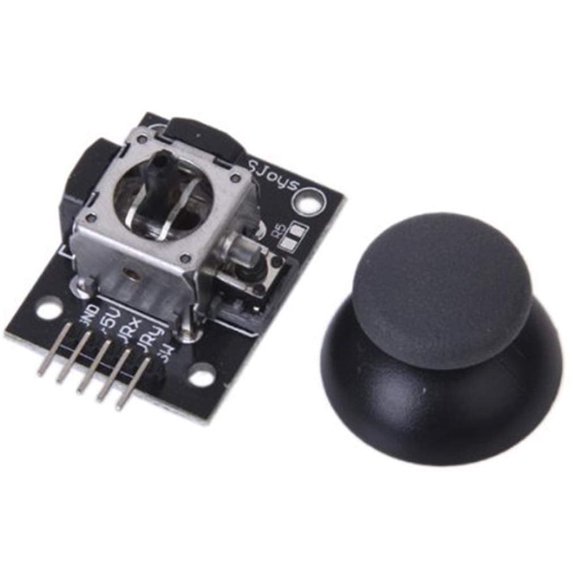

Game Joystick Sensor Game Controller Sensor JoyStick Breakout Module for Arduino PS2 Raspberry Pi
Game Joystick Sensor Game Controller Sensor JoyStick Breakout Module for Arduino PS2 Raspberry Pi
Hero image 0 of Game Joystick Sensor Game Controller Sensor JoyStick Breakout Module for Arduino PS2 Raspberry Pi, 0 of 4

Game Joystick Sensor Game Controller Sensor JoyStick Breakout Module for Arduino PS2 Raspberry Pi

(No ratings yet)

Key item features

  • ‌Premium built-in rocker ensures long service life and stable working performance.
  • Features dual analog outputs plus 1 digital output to meet various control demands.
  • X/Y axis adopt potentiometer design, rotation angle detectable via AD conversion.
  • Downward press triggers Z-axis digital signal with stable pull-up level output.
  • Ideal for 2-DOF servo pan-tilt and various remote proportional control projects.

Specs

Video game platform, PlayStation 2Accs type, Video Game AccessoriesWorks with, Arduino, PS2, Raspberry PiCompatibility, Arduino, PS2, Raspberry PiBrand, KumanWireless, N

About this item

Product details

This two-axis pushbutton rocker sensor module is equipped with a joystick potentiometer, featuring (X, Y) two-axis analog output and (Z) one-button digital output. When used with a sensor expansion board, it can be applied to create interactive works such as remote control devices. In addition, to facilitate users to connect the module with expansion boards and other standard interfaces more easily, the circuits of the X, Y, and Z axes are independently led out. Users can directly plug the module into the expansion board using a 3-pin dedicated cable for immediate use, eliminating complex wiring troubles. Product Performance 1. Input Voltage Range: DC 3.3V to 5V, compatible with most common controller power supplies, ensuring wide applicability. 2. Output Signal: The module is equipped with two-way analog output interfaces and one digital output interface. The output values correspond to the offset of the (X, Y) two axes, which are analog signals; the Z-axis button indicates whether the user presses it, and its output is a digital switch signal (high/low level), which is clear and easy to identify. 3. Creative Application: Through controller programming and connection with a sensor expansion board, users can easily complete the production of creative remote interactive works, suitable for DIY projects, electronic experiments, and interactive device development. 4. Rocker Principle: The cross rocker is equipped with a bidirectional 10K resistor. As the rocker moves in different directions, the tap resistance changes accordingly. When the module is powered by 5V, the readout voltage of X and Y axes in the original state is about 2.5V. When the rocker is pressed in the direction of the arrow, the readout voltage increases up to 5V; when pressed in the opposite direction of the arrow, the readout voltage decreases to a minimum of 0V, with stable and sensitive response. Product Parameters Parameter Name Specification Product Name Rocker Module (Two-Axis Button Rocker) Product Size 34.0mm * 26.0mm * 32.0mm (L×W×H) Colour Black Package Included 1 * Game Controller JoyStick Breakout Module
  • ‌Premium built-in rocker ensures long service life and stable working performance.
  • Features dual analog outputs plus 1 digital output to meet various control demands.
  • X/Y axis adopt potentiometer design, rotation angle detectable via AD conversion.
  • Downward press triggers Z-axis digital signal with stable pull-up level output.
  • Ideal for 2-DOF servo pan-tilt and various remote proportional control projects.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Video game platform

PlayStation 2

Accs type

Video Game Accessories

Works with

Arduino, PS2, Raspberry Pi

Compatibility

Arduino, PS2, Raspberry Pi
