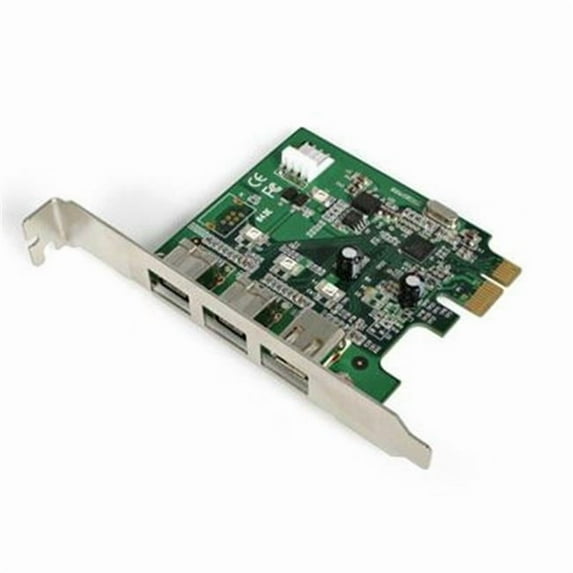

Firewire PCI Express Card

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders external hard drives digital cameras etc.).

The 2b 1a card features a native (single chip) PCI Express chipset - resulting in faster more reliable and cost effective performance than expansion cards that utilize a"bridge" chip.

Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices.

Utilizes a native PCI Express chipset design rather than a bridge chip ensuring a fast reliable and cost-effective FireWire expansion.

Two 9-pin FireWire 800 ports each with transfer rates up to 800Mbps.

One 6-pin FireWire 400 port each with transfer rates up to 400Mbps.

Built with a native PCI Express chipset no bridge chip.

Includes low profile/half-height installation bracket.

Internal power connector for high powered FireWire devices.

Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards.

Plug-and-Play and hot-swap compatible.

Add a high speed FireWire port to a desktop without any FireWire ports.

Connect a digital camera to a desktop with a PCI Express slot to download photos and video.

Connect a high-speed external hard drive to a PCI Express-enabled system.
Technical Specifications.

Lifetime.

Bus Type PCI Express.

External Ports 1 - Firewire 400 (6 pin; IEEE 1394a) Female.

External Ports 2 - Firewire 800 (9 pin; IEEE 1394b) Female.

Industry Standards IEEE-1394/1394A/1394B.

OHCI.

PCI 2.2.

Interface FireWire 800.

Maximum Data Transfer Rate 800000000 Kbits/Sec.

Number of Ports 3.

Humidity 0 90% RH.

Operating Temperature 0-C to 70-C (32-F to 158-C).

Storage Tempera- SKU: ZX9DHPEX1394B3
