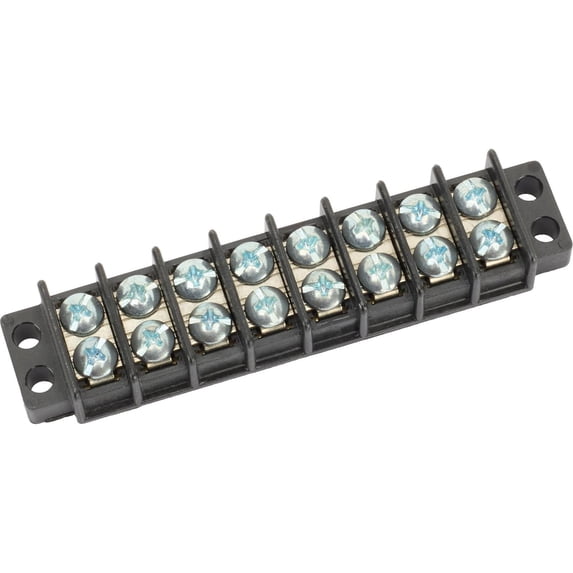

Electrical 8 Terminal Block Bus Strip

Name: Electrical 8 Terminal Block Bus Strip
Brand: Speedway Motors
SKU: 565743429
Price: 24.04 USD
Availability: InStock
Rating: 4.4 (8 reviews)

|8 ratings

Check if this fits your vehicle

Key item features

Convenient Wiring: Connects all wires within a panel or enclosure in one centralized location, functioning as a barrier terminal strip for organized electrical connections.
Certified Safety: Recognized by UL and certified by CSA, ensuring adherence to established safety and performance standards for electrical components.
Durable Construction: Features tin-plated brass terminals and nickel-plated steel screws, providing robust and corrosion-resistant contact points for secure wire connections.
Electrical Capacity: Each circuit is rated for 20 Amperes, accommodating wire sizes from 22 to 12 AWG, with #6-32 screw terminals for reliable fastening.
Physical Specifications: Measures 3.66 inches in length, 0.87 inches in width, and 0.47 inches in height, with a 0.38-inch center-to-center spacing and 0.17-inch mounting holes.
Phenolic Base: Constructed with a phenolic block, offering a sturdy and insulating base for the terminal connections, enhancing overall product durability.
Specific Application: Designed as a terminal strip and explicitly not intended for use as a ground strip without modification, requiring all terminals to be pigtailed for grounding purposes.

Generated by AI

Specs

Volts
20 V
Number of pins
8
Brand
Speedway Motors
Dimensions
3.66 x 0.87 x 1.00 in
Color
black
Count per pack
1

Price when purchased online

More seller options (1)

Starting from $24.04

About this item

Product details

Connect all the wires in your panel or enclosure in one convenient place. Also known as barrier terminal strips, these blocks have screw terminals—just loosen a screw and wrap a stripped wire end around it (or use a spade terminal) and tighten the screw. All have four mounting holes. Color is black. UL recognized and CSA certified. Phenolic block. Tin-plated brass terminals. Ni-plated steel screws. Amps Per Circuit: 20A. For Wire Size, AWG: 22-12. Screw Terminal Size: #6-32. Center-to-Center: 0.38" Mount Hole Diameter: 0.17" Note: These are terminal strips and are NOT intended for use as ground strips. To be used as a ground strip, all terminals on one side would need to be pigtailed together. Item Details3.66" L x 0.87" W x .047" H

Connect all the wires in your panel or enclosure in one convenient place
UL recognized and CSA certified
Tin-plated brass terminals
Ni-plated steel screws
Amps Per Circuit: 20A

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Volts

20 V

Number of pins

Brand

Speedway Motors

Dimensions

3.66 x 0.87 x 1.00 in

Warranty

Warranty information

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
