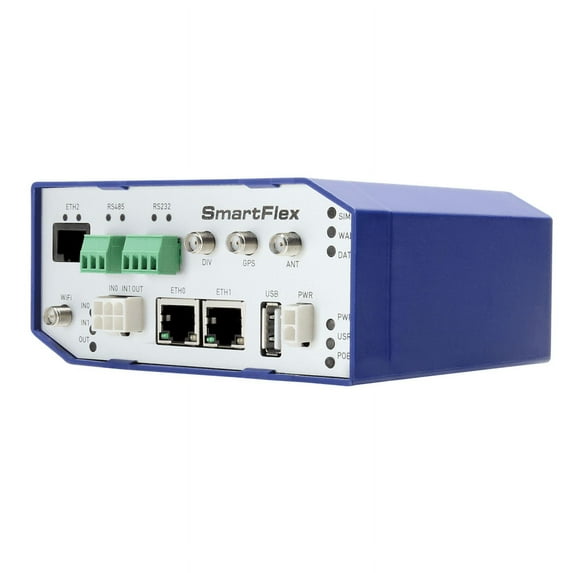

B+B SmartWorx SmartFlex SR305 Cellular Modem/Wireless Router
Key item features
- Powerful CPU and enhanced memory to support high demand customer applications
- Extended operational temperature range from -40 ��C to +75 ��C
- 10-60 VDC operated with transient and reverse polarity voltage protection
- Flexible Port options, such as 3-port Switch, Ethernet and RS232/422/485 serial ports with isolation
- Version without cellular module (XR)
- GPS and GLONASS support
- MicroSD card holder
- Low power consumption mode for solar and battery power applications
- Optional industrial grade WiFi
- PoE PD, PoE PSE, In/Out, USB Host
- Advanced security features
Specs
- Router typeHome Router
- BrandB & B Electronics
- Wireless4G, LTE
- Interface typeEthernet
- Maximum download speed100 Mbps
- Transfer rate100 Mbps
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
The SmartFlex��� cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can be used to provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical, and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbit/s and download speeds of up to 100 Mbps, the SmartFlex��� provides ample bandwidth, even for applications that require video.
The SmartFlex��� is designed and manufactured for use in tough environmental conditions. Specifications include wide operating temperature ranges from -40 to +75 ��C (-20 to +60 ��C LTE450 module). It accepts input voltage ranges from 10 V DC to 60 V DC and is equipped with sleep mode for reducing electrical consumption.
The SmartFlex��� places intelligence out at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage the SmartFlexTM from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and they can create multiple configurations for the same router. Users may switch from one configuration to another at any time.
The flexible SmartFlex��� can be configured to suit any application. The standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses. The standard configuration also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O) , 1 binary output (I/O) and onboard GPS. An optional built-in WiFi module is also available, with industrial grade operating temperature ranges from -40 to +75 ��C (-20 to +60 ��C LTE450 module). Further optional boards available: 3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or ETH - RS232 - RS485 (isolation strenght up to 2.5kV) or RS232 - RS485 (isolation strenght up to 2.5kV) or RS232.
The SmartFlex��� supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like SmartCluster VPN Server and R-SeeNet.
INTELLIGENT MANAGEMENT SOFTWARE
SmartFlex��� is easy to install using SmartWorx HUB���, a full featured configuration and monitoring tool. Our VPN configuration tool, SmartCluster���, makes it easy to configure multiple routers via the same VPN tunnel.
- Powerful CPU and enhanced memory to support high demand customer applications
- Extended operational temperature range from -40 ��C to +75 ��C
- 10-60 VDC operated with transient and reverse polarity voltage protection
- Flexible Port options, such as 3-port Switch, Ethernet and RS232/422/485 serial ports with isolation
- Version without cellular module (XR)
- GPS and GLONASS support
- MicroSD card holder
- Low power consumption mode for solar and battery power applications
- Optional industrial grade WiFi
- PoE PD, PoE PSE, In/Out, USB Host
- Advanced security features
Specifications
Router type
Brand
Wireless
Interface type
Warranty
Warranty information
Similar items you might like
Based on what customers bought
100+ bought since yesterday Standard 4 X: High-Speed, Low-Latency Internet (Latest Model) $349.00
100+ bought since yesterday
$34900current price $349.00Standard 4 X: High-Speed, Low-Latency Internet (Latest Model)
15074.5 out of 5 Stars. 1507 reviews50+ bought since yesterday NETGEAR Nighthawk BE3100 WiFi 7 Dual-band Router (RS70) $82.00 Was $109.00
50+ bought since yesterday
$8200current price $82.00, Was $109.00$109.00NETGEAR Nighthawk BE3100 WiFi 7 Dual-band Router (RS70)
7864.5 out of 5 Stars. 786 reviewsCradlePoint S750-C4D Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router $183.34 Was $799.00
$18334current price $183.34, Was $799.00$799.00CradlePoint S750-C4D Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router
Best seller TP-Link Archer C54 | AC1200 MU-MIMO Dual-Band WiFi Router| Works with All Home Internet Providers $28.00
Best seller
$2800current price $28.00TP-Link Archer C54 | AC1200 MU-MIMO Dual-Band WiFi Router| Works with All Home Internet Providers
19014.1 out of 5 Stars. 1901 reviewsBest seller NETGEAR Nighthawk Dual-Band WiFi 7 Router (RS90) – Security Features, BE3600 Wireless Speed (up to 3.6 Gbps) – Covers up to 2,000 sq. ft., 50 Devices - 2.5 Gig Internet Port $92.00 Was $129.00
Best seller
$9200current price $92.00, Was $129.00$129.00NETGEAR Nighthawk Dual-Band WiFi 7 Router (RS90) – Security Features, BE3600 Wireless Speed (up to 3.6 Gbps) – Covers up to 2,000 sq. ft., 50 Devices - 2.5 Gig Internet Port
7214.6 out of 5 Stars. 721 reviews50+ bought since yesterday TP-Link Archer AX1500 4 Stream Dual-Band Wi-Fi 6 Wireless Router, Up to 1.5 Gbps Speeds, Upgrade Any Home Internet $68.00
50+ bought since yesterday
2 optionsAvailable in additional 2 options$6800current price $68.00TP-Link Archer AX1500 4 Stream Dual-Band Wi-Fi 6 Wireless Router, Up to 1.5 Gbps Speeds, Upgrade Any Home Internet
19984.3 out of 5 Stars. 1998 reviewsNETGEAR – Nighthawk AX2700 DOCSIS 3.1 WiFi 6 Router, 2.7Gbps (CAX30) $298.00
$29800current price $298.00NETGEAR – Nighthawk AX2700 DOCSIS 3.1 WiFi 6 Router, 2.7Gbps (CAX30)
1394.5 out of 5 Stars. 139 reviewsDigi EX15 2 SIM Ethernet Cellular Cable DSL Modem/Wireless Router $545.74
$54574current price $545.74Digi EX15 2 SIM Ethernet Cellular Cable DSL Modem/Wireless Router
Reduced price TP-Link Archer BE9300 Router | Tri-Band WiFi 7 Wireless Router | up to 9.2 Gbps Speeds | Easy Setup | Parental Controls $169.00 Was $199.00
Reduced price
$16900current price $169.00, Was $199.00$199.00TP-Link Archer BE9300 Router | Tri-Band WiFi 7 Wireless Router | up to 9.2 Gbps Speeds | Easy Setup | Parental Controls
3734.3 out of 5 Stars. 373 reviewsNETGEAR - Nighthawk M7 Pro WIFI 7 Mobile Hotspot - Black (AT&T) $499.00
$49900current price $499.00NETGEAR - Nighthawk M7 Pro WIFI 7 Mobile Hotspot - Black (AT&T)
1913.1 out of 5 Stars. 191 reviewsNETGEAR Nighthawk Dual-Band WiFi 7 Router (RS200) – Security Features, BE6500 Wireless Speed (up to 6.5 Gbps) - Covers up to 2,500 sq. ft., 80 Devices – 2.5 Gig Internet Port $229.00
$22900current price $229.00NETGEAR Nighthawk Dual-Band WiFi 7 Router (RS200) – Security Features, BE6500 Wireless Speed (up to 6.5 Gbps) - Covers up to 2,500 sq. ft., 80 Devices – 2.5 Gig Internet Port
5784.6 out of 5 Stars. 578 reviewsSTARLINK - Mini Kit AC Dual Band Wi-Fi System - White (International Version) $299.00
$29900current price $299.00STARLINK - Mini Kit AC Dual Band Wi-Fi System - White (International Version)

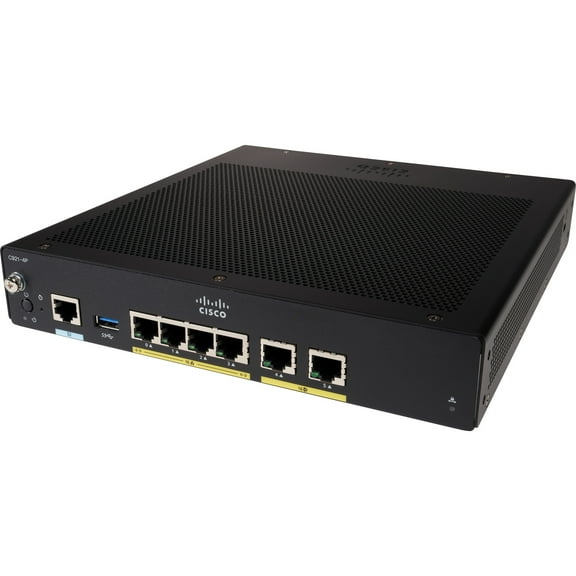

273.6 out of 5 Stars. 27 reviewsCisco C921-4PLTEGB 1 SIM Ethernet, ADSL2, VDSL2 , Cellular Modem/Wireless Router $799.00
$79900current price $799.00Cisco C921-4PLTEGB 1 SIM Ethernet, ADSL2, VDSL2 , Cellular Modem/Wireless Router
NETGEAR Nighthawk Tri-Band WiFi 7 Router (RS500) – Security Features, BE12000 Wireless Speed (up to 12 Gbps) - Covers up to 3,000 sq. ft., 120 Devices – 2.5 Gig Internet Port $399.00
$39900current price $399.00NETGEAR Nighthawk Tri-Band WiFi 7 Router (RS500) – Security Features, BE12000 Wireless Speed (up to 12 Gbps) - Covers up to 3,000 sq. ft., 120 Devices – 2.5 Gig Internet Port
6264.7 out of 5 Stars. 626 reviewsPeplink BR1 Mini 5G (with WiFi) $549.00
$54900current price $549.00Peplink BR1 Mini 5G (with WiFi)
Best seller NETGEAR Nighthawk Dual-Band WiFi 7 Router (RS180) – Security Features, BE5500 Wireless Speed (up to 5.5 Gbps) – Covers up to 2,500 sq. ft., 80 Devices - 2.5 Gig Internet Port $143.00 Was $199.00
Best seller$14300current price $143.00, Was $199.00$199.00NETGEAR Nighthawk Dual-Band WiFi 7 Router (RS180) – Security Features, BE5500 Wireless Speed (up to 5.5 Gbps) – Covers up to 2,500 sq. ft., 80 Devices - 2.5 Gig Internet Port
5984.7 out of 5 Stars. 598 reviewsNETGEAR - Nighthawk WiFi 7 Router, 9.3 Gbps Wireless Speed (BE9300), Security Features, Covers up to 2,500 sq. ft., 100 Devices, 2.5 Gig Internet Port $249.00
$24900current price $249.00NETGEAR - Nighthawk WiFi 7 Router, 9.3 Gbps Wireless Speed (BE9300), Security Features, Covers up to 2,500 sq. ft., 100 Devices, 2.5 Gig Internet Port
784.1 out of 5 Stars. 78 reviewsZyxel C4000BZ 3.0 Gbps DSL Modem Router $80.00 Was $124.99
$8000current price $80.00, Was $124.99$124.99Zyxel C4000BZ 3.0 Gbps DSL Modem Router

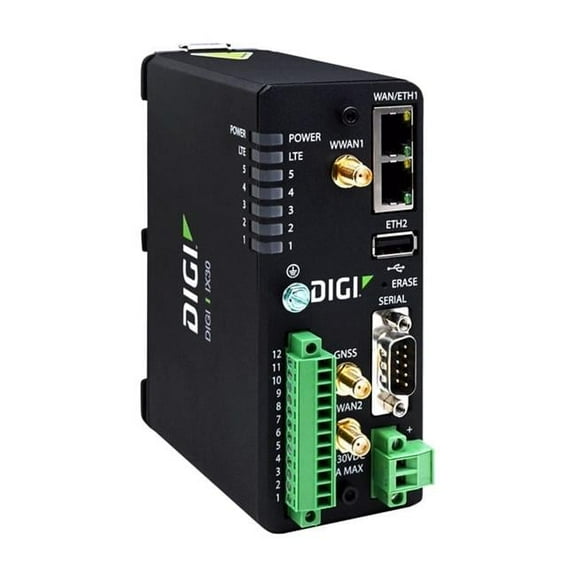

1284.3 out of 5 Stars. 128 reviewsDigi IX30 2 SIM Ethernet, Cellular Modem/Wireless Router $870.91
