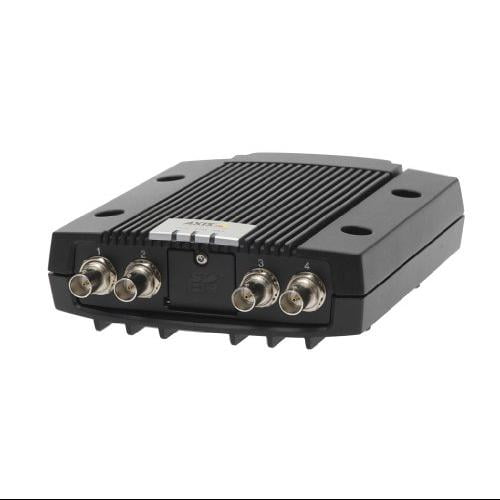

Axis Q7424-R Video Decoder - Functions: Video Encoding, Audio Streaming - NTSC, PAL

Rugged video encoder for tough environments

AXIS Q7424-R is a high performance 1-4 channel standalone solution that enables flexible migration of analog cameras into an IP-based video surveillance system in challenging conditions. AXIS Q7424-R features a rugged design optimized to withstand vibrations, shocks and extreme temperatures.

Reduced bandwidth and storage needs

AXIS Q7424-R offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.

Powerful and full-featured

AXIS Q7424-R supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes, using the built-in RS-422 and RS-485 serial port. The video encoder also includes edge storage through a built-in SD/SDHC memory card slot.

Technical Information

Functions: Video Encoding, Audio Streaming
Video System: NTSC, PAL
Maximum Resolution: 720 x 576
Frame Rate: 30 fps NTSC, 25 fps PAL
Video Formats: H.264, MPEG-4

Interfaces/Ports

Audio Line In: Yes
Audio Line Out: Yes
Composite Video: Yes
Number of Composite Video Inputs: 4

Physical Characteristics

Height: 1.8"
Width: 5.3"
Depth: 6.6"
Weight (Approximate): 1.76 lb

Miscellaneous

Package Contents:

• Q7424-R Video Decoder
• Installation Guide
• CD with Installation and Management Tools
• Software
• User's Manual
• Windows Decoder user License

Certifications & Standards:

• EN 55022 Class B
• EN 61000-3-2
• EN 61000-3-3
• EN 55024
• EN 61000-6-1
• EN 61000-6-2
• FCC Part 15 Subpart B Class B
• ICES-003 Class B
• VCCI Class B
• C-tick AS/NZS CISPR 22
• KCC Class B
• EN 50121-4
• EN 50155 (Vibration and Shock Category 1 Class B, Temperature Class TX)
• NEMA TS 2(vibration, shock, temperature, humidity)
• IEC 60068-2-1
• IEC 60068-2-2
• IEC 60068-2-14
• IEC 60068-2-27
• IEC 60068-2-30
• IEC 60068-2-64
• IEC 60068-2-78
• CEN/TS 45545-2
• UL/IEC/EN 60950-1

Warranty

Limited Warranty: 3 Year
