Raspberry Pi Expansion Board Module 5 Cm5

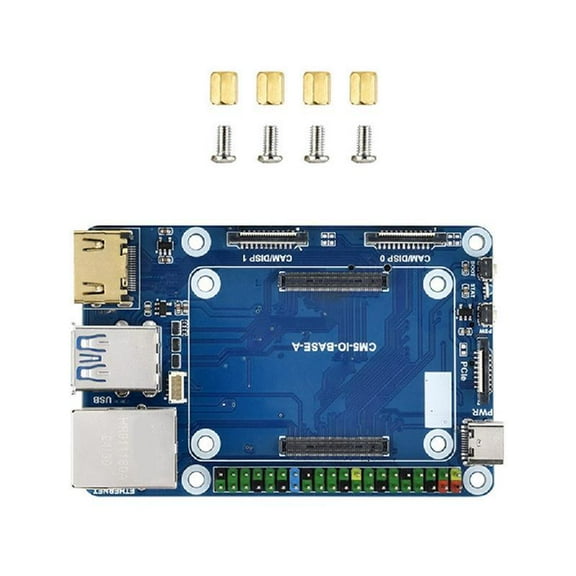

Raspberry Pi Expansion Board Compute Module 5 CM5 Compute Module Motherboard Type A Motherboard

Adapter module features: board

CM5 basic expansion, powerful functions, small size, only the size of a bank card, convenient for learning and evaluating Raspberry Pi computing modules or integrating them directly into products

Connects to the Compute Module 5 motherboard, integrated 40-pin GPIO interface and standard CM5 connector, supports access to the Compute Module 5 Lite/eMMC series motherboard

Although the board is small, it has all the necessary functions. Equipped with multiple interfaces, it is more convenient to use.

Power supply/recording interface, CM5 connector, PCIe interface, 40-pin GPIO interface, power button, Gigabit Ethernet RJ45 port, recording button, bi-color status LED, USB 3.0 interface, MIPI interface, HDMI interface

It can be connected to the cooling fan

Specs:

CM5 card reader: applicable to all versions of Compute Module5

Networks: Gigabit Ethernet RJ45 interface

Connector:

PCle (PCle Gen2/3 x1)

Raspberry Pi 40PIN USB GPIO Interface:

USB 3.2 Gen1 (Type A) x2; USB 2.0 x2 (6-pin 1mm FFC connector) MIPI: 4-channel MIPI interface* 2 (22-pin 0.5mm FFC connector)

Video: HDMI interface* 2 (including FFC main interface* 1), supports dual 4K output

Storage: Integrated micro SD card slot (for versions without eMMC)

Fan interface: 5V, four-pin JST-SH PWM fan connector

Power input: DC 5V 5A

Size: 85 x 56 (mm)

Package included:

1

CM5-IO-BASE-A screw pack
