Angle Sensor Module SW-520D Ball Switch Tilt Sensor Module for Arduino 1pcs
Key item features
Specification:
Working Voltage: 3.3V - 5V
Output Form: Digital Switch Output (0 and 1)
Small Board PCB Size: 37mm x 14mm x 7mm
Total Length: 51mm
Package Content:
1pcs x Angle Sensor Module
Specs
Brand, Unique Bargains
Weight, 0.01 lb
Model, SW-520D
Count per pack, 1
Size, 37mm x 14mm x 7mm
About this item
Product details
Description:
1.A fixed bolt holes for easy installation.
2.Sensor can sense changes in body angle.
3.The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma.
4.Using the highly sensitive switch SW-520D as the angle sensor. Using a wide voltage LM393 comparator.
Module for use:
1.Switch module output depends on the angle of the switch is turned on and off, when the angle switches off, DO output high, angle switch is turned on, DO output low.
2.The output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the angle change.
3.The output of the module can directly drive relays, which can be composed of a high-power switching angles to protect electrical equipment and other products when dumped automatic power-off function.
Module Wiring Instructions:
1.VCC: Power Supply +
2.GND: Power Supply -
3.DO: Digital Signal Output
4.AO: This function is invalid with this vibration sensor
For purchasing electronic components, modules should have some basic knowledge of electronics. Most modules only provide descriptions or information. There is no technical consultation support. Beginners should be cautious.
Specification:
Working Voltage: 3.3V - 5V
Output Form: Digital Switch Output (0 and 1)
Small Board PCB Size: 37mm x 14mm x 7mm
Total Length: 51mm
Package Content:
1pcs x Angle Sensor Module
Specifications
Sensor type
Brand
Weight
Model
Warranty
Warranty information
Warnings
Similar items you might like
Based on what customers bought
Uxcell 2 Set Digital Load Cell Weight Sensor 1KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit $11.30
Sponsored$1130current price $11.30Uxcell 2 Set Digital Load Cell Weight Sensor 1KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit
Shipping, arrives in 3+ daysHigh Sensitive Vibration Switch Sensor Module SW-18010P Normally Open Alarm Sensor Module for Arduino 3 pcs $8.59
$859current price $8.59High Sensitive Vibration Switch Sensor Module SW-18010P Normally Open Alarm Sensor Module for Arduino 3 pcs
MPU-6050 GY-521 6DOF Electronic Accelerometer and Gyro Sensor Board, Anti Interference PCB Module for / $10.86
$1086current price $10.86MPU-6050 GY-521 6DOF Electronic Accelerometer and Gyro Sensor Board, Anti Interference PCB Module for /
Uxcell Digital Load Cell Weight Sensor 20KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit $9.69
$969current price $9.69Uxcell Digital Load Cell Weight Sensor 20KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit
4mm Inductive Proximity Sensor Switch PNP NO DC 5-30V 200mA 3-wire SN04-P $9.28
$928current price $9.284mm Inductive Proximity Sensor Switch PNP NO DC 5-30V 200mA 3-wire SN04-P
GJX 4Pcs Ds18B20 Waterproof Temperature Sensor Probes, Stainless Steel | Digital 1-Wire Interface, Includes Adapter Cables, Compatible with Arduino, Raspberry Pi and Esp32 $9.93
$993current price $9.93GJX 4Pcs Ds18B20 Waterproof Temperature Sensor Probes, Stainless Steel | Digital 1-Wire Interface, Includes Adapter Cables, Compatible with Arduino, Raspberry Pi and Esp32

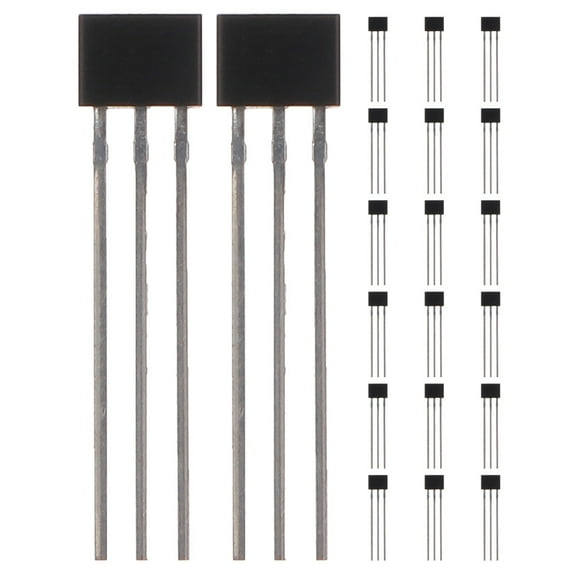

Uxcell Hall Effect Sensors, 20 Pack Magnetic Detector Hall Switch Single Pole Hall IC $9.59
$959current price $9.59Uxcell Hall Effect Sensors, 20 Pack Magnetic Detector Hall Switch Single Pole Hall IC
Uxcell Digital Load Cell Weight Sensor 1KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit $9.16
$916current price $9.16Uxcell Digital Load Cell Weight Sensor 1KG HX711 Module Weighing Sensor 24 Bit Precision A/D Dual-Channel 20x33mm for DIY Portable Electronic Kitchen Scale Kit
SW-420 Vibration Tilt Sensor Alarm Module Vibration Sensor for Blue $11.99
$1199current price $11.99SW-420 Vibration Tilt Sensor Alarm Module Vibration Sensor for Blue

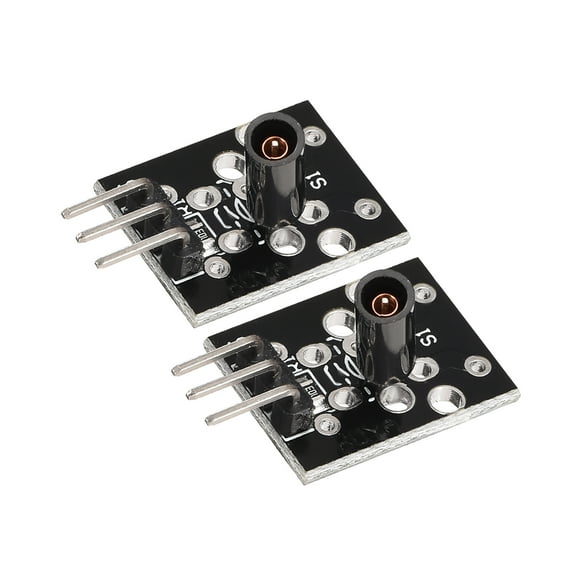

KY-002 SW-18015P Shock Vibration Switch Sensor Module for Arduino 2 pcs $6.99
$699current price $6.99KY-002 SW-18015P Shock Vibration Switch Sensor Module for Arduino 2 pcs
DRV5032 Digital Magnetic Hall Effect Sensor Module 1.65V-5.5V for Door and Window Magnetic Sensor Switch $9.85
$985current price $9.85DRV5032 Digital Magnetic Hall Effect Sensor Module 1.65V-5.5V for Door and Window Magnetic Sensor Switch
5pair for IR Break Beam Sensor LEDs Counting Module Split Distance Sensor Infrared Beam Sensor LED Counting Module $10.79
$1079current price $10.795pair for IR Break Beam Sensor LEDs Counting Module Split Distance Sensor Infrared Beam Sensor LED Counting Module
Uxcell 6Pack Hall Magnetic Sensor Module, 3144EUA-S 3144E Hall Effect Sensor for AVR Smart Cars DIY Starter Contactless Switch $10.64
$1064current price $10.64Uxcell 6Pack Hall Magnetic Sensor Module, 3144EUA-S 3144E Hall Effect Sensor for AVR Smart Cars DIY Starter Contactless Switch
IR Break Beam Sensor LED Counting Module, 5-Pair Split Distance Sensor, 20x10x8mm, Infrared Beam Sensor $11.07
$1107current price $11.07IR Break Beam Sensor LED Counting Module, 5-Pair Split Distance Sensor, 20x10x8mm, Infrared Beam Sensor
Electric Vehicle 500-2000W Hall Sensor For 3 Wheel Motor Series Motors Hall Sensor Pcb Board Cable Replacement Parts Accessories $5.09
$509current price $5.09Electric Vehicle 500-2000W Hall Sensor For 3 Wheel Motor Series Motors Hall Sensor Pcb Board Cable Replacement Parts Accessories
11 out of 5 Stars. 1 reviews1 out of 5 starsHC-SR501 Infrared Sensor Module Motion Detection Compatible with Arduino 3-Pack $10.25
$1025current price $10.25HC-SR501 Infrared Sensor Module Motion Detection Compatible with Arduino 3-Pack
11 out of 5 Stars. 1 reviews1 out of 5 starsModule Sensor Ky-037 Microphones Sensitivity Solar Power Sound Sensor 20Db $5.79 Was $7.89
$579current price $5.79, Was $7.89$7.89Module Sensor Ky-037 Microphones Sensitivity Solar Power Sound Sensor 20Db

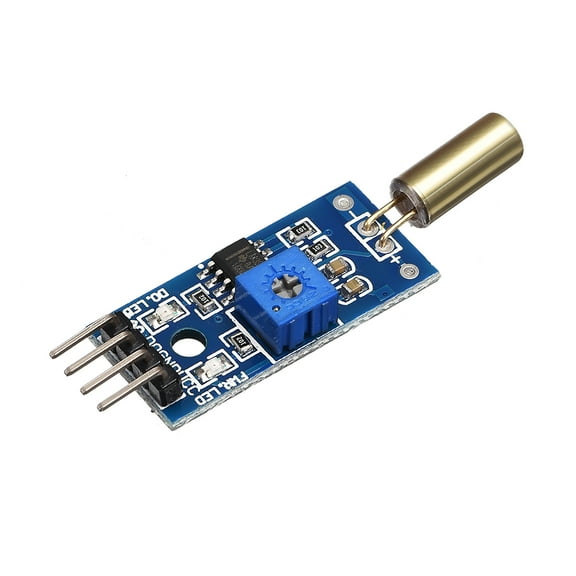

Angle Sensor Module SW-520D Golden Ball Switch Tilt Sensor Module $6.49
