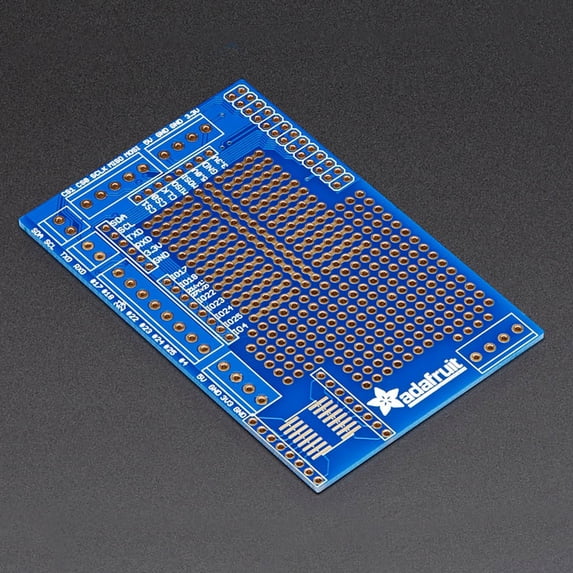

Adafruit Prototyping Pi Plate Kit for Raspberry Pi
Key item features
- Comes as a set of parts, a little soldering is required to put it together but its really easy
- Best used for the Raspberry Pi® Model A or Model B
- Snap onto the Pi PCB (and is removable later if you wish)
- All the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them
Specs
Compatibility, Raspberry Pi
Brand, Adafruit
Has written warranty, No
Accessories, 10 - 2-pin terminals, 3 - 3-pin terminals, 3 - strips of header, 1 - 13x2 header, 1 - Pi Plate, 1 - tactile button
Retail packaging, Kit
About this item
Product details
Key Features:
- Comes as a set of parts, a little soldering is required to put it together but its really easy
- Best used for the Raspberry Pi® Model A or Model B
- Snap onto the Pi PCB (and is removable later if you wish)
- All the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them
Now that you've finally got your hands on a Raspberry Pi® , you're probably itching to make some fun embedded computer projects with it. What you need is an add on prototyping Pi Plate from Adafruit, which can snap onto the Pi PCB (and is removable later if you wish) and gives you all sorts of prototyping goodness to make building on top of the Pi super easy.
Adafruit added lots of basic but essential goodies. First up, there's a big prototyping area, half of which is 'breadboard' style and half of which is 'perfboard' style so you can wire up DIP chips, sensors, and the like. Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them. On the edges of the prototyping area, (almost all of) the breakout pins are also connected to labeled 3.5mm screw-terminal blocks. This makes it easy to semi-permanently wire in sensors, LEDs, etc. There's also a 4-block terminal block broken out to 0.1" pads for general non-GPIO wiring. Finally, we had a little space remaining over the metal connectors so we put in an SOIC surface mount chip breakout area, for those chips that dont come in DIP format.
Item Specifics
10 - 2-pin terminals
3 - 3-pin terminals
3 - strips of header
1 - 13x2 header
1 - Pi Plate
1 - tactile button
Note: This kit is best used for the Raspberry Pi Model A or Model B. You can use it with any "2x20 GPIO type" Pi (A+, B+, Zero, Pi 2, Pi 3) but only the 'top 26 pins' will be broken out for use
- Comes as a set of parts, a little soldering is required to put it together but its really easy
- Best used for the Raspberry Pi® Model A or Model B
- Snap onto the Pi PCB (and is removable later if you wish)
- All the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them
Specifications
Compatible models
Compatibility
Brand
Has written warranty
Warranty
Warranty information
