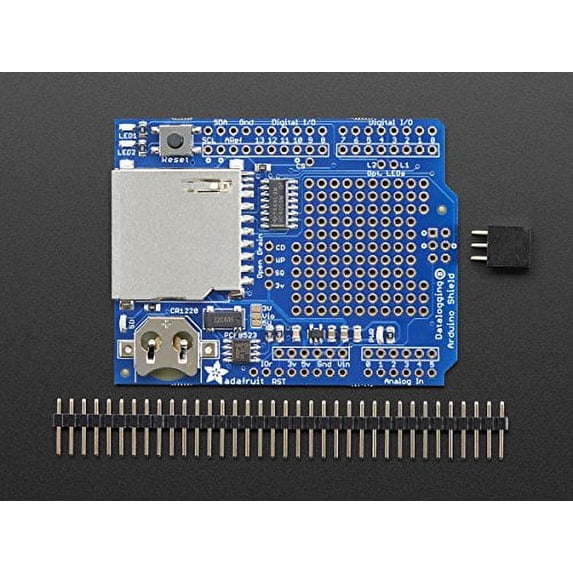

Adafruit Assembled Data Logging Shield for Arduino
Key item features
- On board Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery will last for years.
- Adafruit libraries and example code for both SD and RTC mean you can get going quickly
- Prototyping area for soldering connectors, circuitry or sensors
- Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported.
Specs
Compatibility, Arduino
Brand, Adafruit
Height, 0.65 in
Has written warranty, No
Retail packaging, Single Piece
About this item
Product details
Key Features:
- On board Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery will last for years.
- Adafruit libraries and example code for both SD and RTC mean you can get going quickly
- Prototyping area for soldering connectors, circuitry or sensors
- Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher.
Here's a handy Arduino shield: a lot of people are looking for a dedicated and well-designed data logging shield. Adafruit worked hard to engineer an inexpensive but well-rounded design. Not only is it easy to assemble and customize, it also comes with great documentation and libraries.
The latest version of this popular shield has all the features of the popular original, and is "R3" compatible so you can use it with just about any Arduino or compatible. You can be up and running with it in less than 15 minutes - saving data to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program. We even have a tutorial on how to use two free software programs to plot your data. The included RTC (Real Time Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when! Note: The RTC requires a small coin cell battery (not included). The board will still operate without the coin cell battery. Once installed, the battery will last for years.
Item Specifics
Dimensions (assembled): 70mm x 53mm x 17mm (2.7in x 2in x 0.65in)
SD Card Format: FAT16 or FAT32
SD Card protrudes by 10mm (0.4in) when inserted
Weight: 22g/0.8oz
The RTC uses I2C 7-bit address 0x68.
ADK/Mega R2 or lower are not supported.
Does not come with an Arduino, SD Card or cell battery.
Requires soldering of header pins
- On board Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery will last for years.
- Adafruit libraries and example code for both SD and RTC mean you can get going quickly
- Prototyping area for soldering connectors, circuitry or sensors
- Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported.
Specifications
Compatible models
Compatibility
Brand
Height
Warranty
Warranty information
