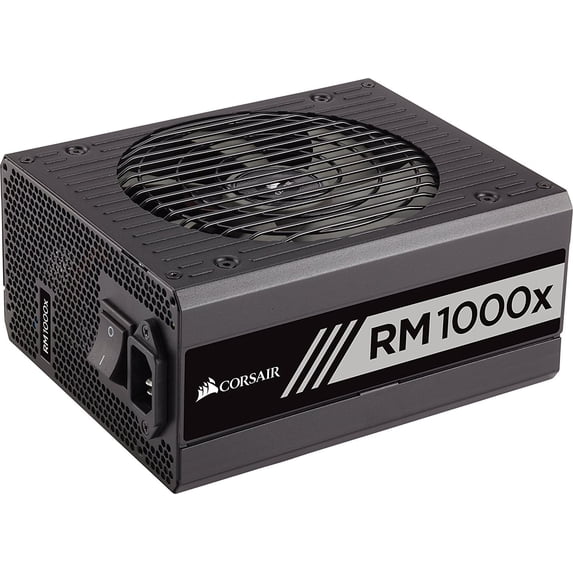

Corsair RM Series 1000W 80+ Gold Power Supply
Corsair RM Series 1000W 80+ Gold Power Supply
Hero image 0 of Corsair RM Series 1000W 80+ Gold Power Supply, 0 of 9
Visit the Corsair Store

Corsair RM Series 1000W 80+ Gold Power Supply

|1 rating

Key item features

  • 80 PLUS Gold certified Gold certification ensures high efficiency operation for less excess heat and lower operating costs.
  • 100% Japanese 105°C capacitors Premium internal components ensure solid power delivery and long term reliability.
  • Zero RPM Fan Mode Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.
  • Ten year warranty Your guarantee of reliable operation that will last across several system builds.
  • Fully modular cable set Installation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
  • Package contents RMx Series High-Performance ATX Power Supply AC power cord DC Modular cable set DC Modular cable storage bag Cable ties Corsair case badge User Manual
  • Compatibility 6th generation Intel® Core™ processor Ready (Intel Skylake and Z170 motherboards) ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
  • 80 PLUS® Gold efficiency, delivering 90% energy efficiency at real world load conditions.
  • ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
  • 135mm thermally controlled fan spins up as needed.
  • Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
  • Engineered to meet maximum power output at a server-grade 50°C temperature rating.
  • Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
  • Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
  • Weight 2.003kg MTBF 100,000 hours 80 Plus Gold Power 1000 Watts Fanless mode Yes Fan bearing technology Rifle Fan size (mm) 135mm C-Link Digital No Continuous output rated temperature (°C) 50°C
  • Dimensions 150mm x 86mm x 180mm Modular Fully Sleeved cables Sleeved and Flat Black Cables ATX Connector 1 EPS Connector 2 Floppy Connector 1 Four Pin Peripheral Connector 12 PCIe Connector 8 SATA Connector 11 Plug Type NA
  • Corsair RM1000x Fully Modular Power Supply AC Input Rating DC Output Rating AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb Current: 13A - 6.5A Max Load 25A 25A 83.3A 0.8A 3A Frequency: 47Hz - 63Hz Maximum Combined Wattage 150W 1000W 9.6W 15W Total Power: 1000W

Specs

Computer power supply form factor, InternalFeatures, ModularBrand, CorsairInput voltage, 120 VoltsInternal/external, InternalSize, 3.4" x 7.1" x 5.9"

About this item

Product details

Gold-certified efficiency with extremely tight voltage regulation to deliver superior performance. Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
  • 80 PLUS Gold certified Gold certification ensures high efficiency operation for less excess heat and lower operating costs.
  • 100% Japanese 105°C capacitors Premium internal components ensure solid power delivery and long term reliability.
  • Zero RPM Fan Mode Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.
  • Ten year warranty Your guarantee of reliable operation that will last across several system builds.
  • Fully modular cable set Installation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
  • Package contents RMx Series High-Performance ATX Power Supply AC power cord DC Modular cable set DC Modular cable storage bag Cable ties Corsair case badge User Manual
  • Compatibility 6th generation Intel® Core™ processor Ready (Intel Skylake and Z170 motherboards) ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
  • 80 PLUS® Gold efficiency, delivering 90% energy efficiency at real world load conditions.
  • ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
  • 135mm thermally controlled fan spins up as needed.
  • Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
  • Engineered to meet maximum power output at a server-grade 50°C temperature rating.
  • Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
  • Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
  • Weight 2.003kg MTBF 100,000 hours 80 Plus Gold Power 1000 Watts Fanless mode Yes Fan bearing technology Rifle Fan size (mm) 135mm C-Link Digital No Continuous output rated temperature (°C) 50°C
  • Dimensions 150mm x 86mm x 180mm Modular Fully Sleeved cables Sleeved and Flat Black Cables ATX Connector 1 EPS Connector 2 Floppy Connector 1 Four Pin Peripheral Connector 12 PCIe Connector 8 SATA Connector 11 Plug Type NA
  • Corsair RM1000x Fully Modular Power Supply AC Input Rating DC Output Rating AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb Current: 13A - 6.5A Max Load 25A 25A 83.3A 0.8A 3A Frequency: 47Hz - 63Hz Maximum Combined Wattage 150W 1000W 9.6W 15W Total Power: 1000W
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Computer power supply form factor

Internal

Features

Modular

Brand

Corsair

Input voltage

120 Volts

Warranty

Warranty information

7 YEAR
