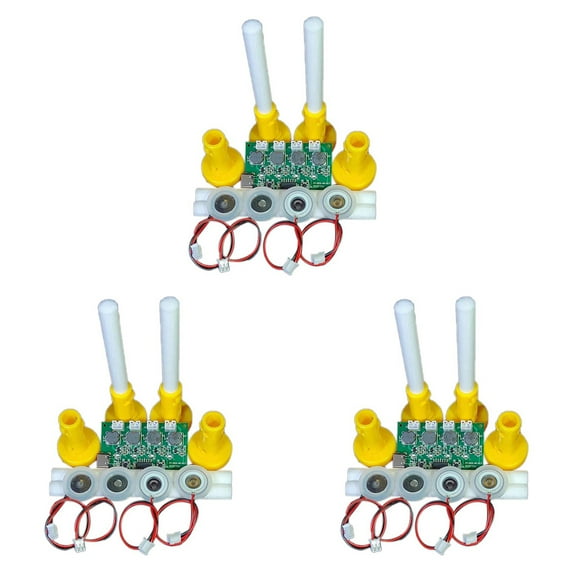

3X Four- Humidifier Module Humidifier Control Board Atomizer Driver Board Four- Humidifier Module,Set D

Description: 1. Water Tank Capacity: 0.5-1L
2. Function: Ultrasonic
3. Timing Function: 2-8 Hours
4. Rated Power: 2 W
5. Material: PCB
6. Noise: Below 36dB
7. Humidification : Mist
8. Power Supply Mode: USB
9. Rated Voltage: ≤36V
10. Module Size: 25 x 50 x 1.2mm (Width x Length Thickness)
11. Rated Voltage: DC 5V
12. Rated Current: 300mA
13. Power: 2.5-3W
14. Atmospheric Lighting: White Light
15. Atomization Frequency: 108KHZ±2KHZ
Atomizer Parameters: 1. Name: Microporous Atomizing Sheet
2. Diameter: 16mm
3. Driving Voltage: DC3V-12V
4. Rated Power: 1.5W
5. Atomization Amount: 25-660M/H
6. Power Range: 0.6W-3W
7. Resonant Frequency: 103-113KHZ±5
8. Outer Diameter Of Silicone Sleeve: 20mm
9. Wire Length: 100mm-300mm
10. Wire Terminal: 2.0
Color: As Shown
Material: PCB

Package Contents:
3 x Controller Module
12 x Sheet
12 x Yellow Bracket
12 x Cotton Swab

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
