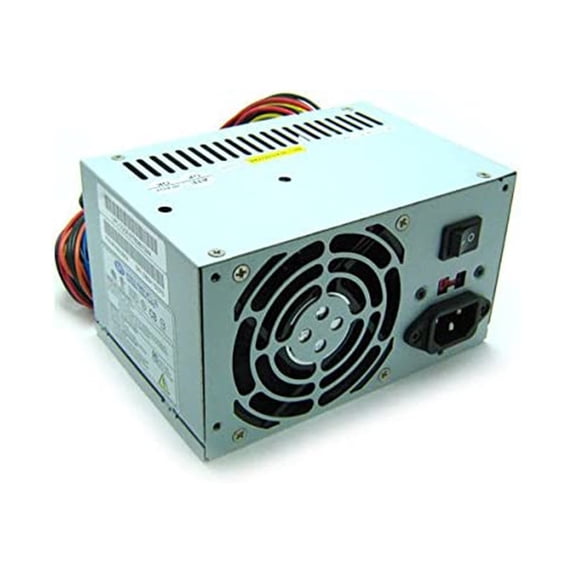

SPI FSP350-60GNV 350W SFX New Power Supply Gray, 20+4PIN, 8CM BB Fan, APFC Micro ATX Internal 12V DC

(No ratings yet)

Key item features

350W output power provides reliable performance
Includes a 1-year warranty for peace of mind
Micro ATX form factor for compact systems
Supports AC input range of 90V - 265V
MTBF of 100,000 hours ensures long-lasting use
Equipped with an 8cm fan for efficient cooling
6cm ball-bearing fan ensures quiet, durable operation
Active PFC meets EN61000-3-2 standards for high efficiency
Dimensions: 5" x 5.1" x 2.5", fits small form factor cases
Features a 20-pin connector for versatile compatibility

Specs

Computer power supply form factor, Micro ATXBrand, SparkleInternal/external, InternalColor, GrayModel name, FSP350-60GNV

About this item

Product details

Key Features Output Power 350 W Warranty 1 Year. Electronics Feature Form Factor Micro ATX AC Input 90V - 265V MTBF 100,000 Hours Fan Features 8cm Fan Dimensions WxDxH 5" x 5.1" x 2.5" Connectors 20 Pin Detail Specifications Input Range - 90 to 265Vac (RMS), Full Range Input Frequency - 47 to 63Hz Input Current - 4.5A (RMS) at 115Vac, 2A (RMS) at 230Vac Inrush Current - No damage, typical 80A Max at cold start Dielectric Withstand - Input to frame ground 1800 VAC for 1 second Efficiency - 75% at minimum measured at nominal AC main voltage and frequency with full load on all outputs Rise time - Less than 20ms Hold-up Time - 17ms minimum at nominal input voltage Power Good Signal - Power on delay time 100 to 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current - Not exceed 3.5mA MTBF - 100,000 hours on maximum load at +25C Dimensions (LxWxH) - 130x125x63.5mm/5.1x5x2.5inch Low noise and ripple Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950 or VDE EN60950, NEMKO EN60950 (CB Report), CE - Complied with SFX and SFX12V standard - Active Power Factor Correction (PFC) meet EN61000-3-2 - High efficiency and reliability - Remote ON/OFF function - Internal 12V DC fan included - Noise Killer (thermal fan speed control function) - Low noise and ripple - Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation - Output over voltage, short circuit, and over current protection - 100% Hi-pot, ATE, and burn-in tested - Re-settable power shut down - Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950 or VDE EN60950, NEMKO EN60950 (CB Report), CE Weight - 3.50lbs Warranty - 1 year. This item's Condition is New.

350W output power provides reliable performance
Includes a 1-year warranty for peace of mind
Micro ATX form factor for compact systems
Supports AC input range of 90V - 265V
MTBF of 100,000 hours ensures long-lasting use
Equipped with an 8cm fan for efficient cooling
6cm ball-bearing fan ensures quiet, durable operation
Active PFC meets EN61000-3-2 standards for high efficiency
Dimensions: 5" x 5.1" x 2.5", fits small form factor cases
Features a 20-pin connector for versatile compatibility

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Computer power supply form factor

Micro ATX

Brand

Sparkle

Internal/external

Internal

Color

Gray

Warranty

Warranty information

N

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
