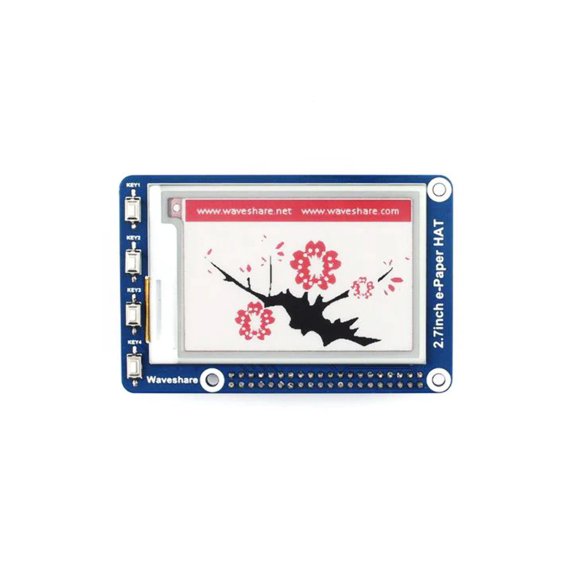

Hero image 0 of 2.7inch e-Paper E-Ink Display HAT For Raspberry Pi (264x176), 0 of 6
2.7inch e-Paper E-Ink Display HAT For Raspberry Pi (264x176)
(No ratings yet)
Key item features
2.7inch e-Paper E-Ink Display HAT For Raspberry Pi (264x176)
Specs
Compatible models, Raspberry Pi 2B/3B/Zero/Zero W
Compatibility, Raspberry Pi
Brand, Unbranded
Color, Red
Has written warranty, No
Retail packaging, Kit
Compatible models
Raspberry Pi 2B/3B/Zero/Zero W
Compatibility, Raspberry Pi
Compatibility
Raspberry Pi
Brand, Unbranded
Brand
Unbranded
Color, Red
Color
Red
Has written warranty, No
Has written warranty
No
Retail packaging, Kit
Retail packaging
Kit
About this item
Product details
This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with an embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra-low power consumption, wide viewing angle, the great effect under sunlight, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.
Features- No backlight keeps displaying last content for a long time even when power down
- Ultra-low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi 2B/3B/Zero/Zero W
- Onboard 4x Keys
- SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Key Parameters:
| Operating voltage: | 3.3V |
| Interface: | 3-wire SPI, 4-wire SPI |
| Outline dimension: | 85mm × 56mm |
| Display size: | 57.288mm × 38.192mm |
| Dot pitch: | 0.217 × 0.217 |
| Resolution: | 264 × 176 |
| Display colour: | Red, Black, White |
| Grey level: | 2 |
| Full refresh time: | 15s |
| Refresh power: | 26.4mW(type.) |
| Standby power: | <0.017mW |
| Viewing angle: | >170° |
Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
- 1 x 2.7inch e-Paper HAT (B)
- 2 x RPi screws pack (2pcs)
- 1 x PH2.0 20cm 8Pin
