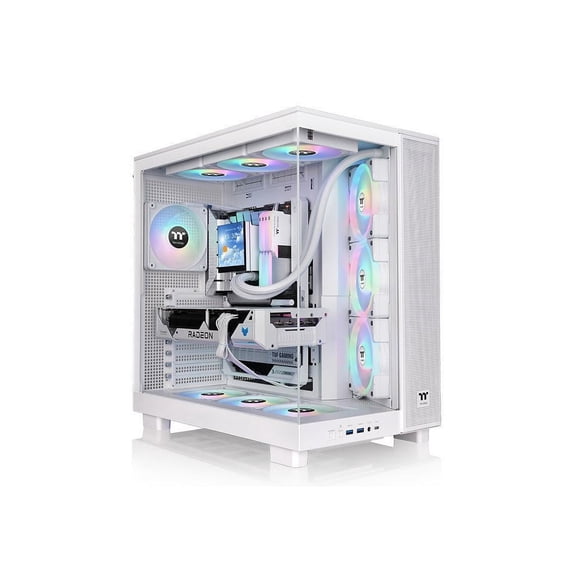

Thermaltake View 380 XL TG ARGB Snow Mid Tower Chassis CA-11E-00M6WN-00
Thermaltake View 380 XL TG ARGB Snow Mid Tower Chassis CA-11E-00M6WN-00
Hero image 0 of Thermaltake View 380 XL TG ARGB Snow Mid Tower Chassis CA-11E-00M6WN-00, 0 of 6
Thermaltake

Thermaltake View 380 XL TG ARGB Snow Mid Tower Chassis CA-11E-00M6WN-00

(No ratings yet)

Key item features

  • Striking Aesthetic: A snow-white mid-tower chassis features tempered glass front and left panels for internal visibility, complemented by an angled mesh. Its dual-chamber design ensures clean looks and efficient cable management.
  • Hidden-Connector Ready: Engineered for ATX hidden-connector motherboards (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH) plus standard ATX, Micro ATX, and Mini ITX motherboard compatibility.
  • Robust Cooling: Supports up to ten 120mm fans and dual 360mm radiators on the top and motherboard side. Four 120mm Hydraulic Bearing ARGB Lite fans come pre-installed.
  • Expansive Capacity: Provides generous internal space for CPU coolers (160mm max height), GPUs (420mm max length), and PSUs (180mm max length). Includes a built-in GPU holder and drive bays.
  • Front I/O: Convenient front ports include two USB 3.0, one USB 3.2 Gen 2 Type C, and dedicated audio input/output jacks for seamless peripheral and audio connections.
Generated by AI

Specs

Computer case type, Mid TowerWeight, 24 lbCompatible fan sizes, 119.89 mmBrand, ThermaltakeColor, WhiteNumber of drive bays, 3

About this item

Product details

General Information

View 380 XL TG ARGB Snow Mid Tower Chassis

The View 380 XL TG ARGB Snow Mid Tower Chassis is a dual-chamber ATX case with Hidden-Connector Motherboard support, four 120mm Hydraulic Bearing ARGB Lite fans, and space for a 360mm radiator at both the top and motherboard side. It supports up to ten 120mm fans and features a built-in GPU holder, front I/O ports, a recessed bottom compartment, and an angled motherboard side design, offering users enhanced flexibility for their ideal build.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL TG ARGB Snow Mid Tower Chassis features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

Compatible with hidden-connector motherboards:

ASUS BTF Series

MSI PROJECT ZERO Series

GIGABYTE PROJECT STEALTH Series

Dual Chamber Design

The dual-chamber design provides more build space, improved cable management and increased airflow for greater flexibility.

Tempered Glass Front and Left Panels

The View 380 XL TG ARGB Snow Mid Tower Chassis offers enhanced visibility with tempered glass front and left panels, letting users showcase their system.

Good Radiator Support

For good cooling support, users can choose to place a 360mm radiator on the top and motherboard side.


Four Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed

The View 380 XL TG ARGB Snow Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Reversed Fans at the motherboard side and one Hydraulic Bearing 120mm ARGB Lite Fan at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Built-in GPU Holder

The built-in GPU holder prevents graphics card sagging with extra support.


Flexibility to Build Your Ideal PC

The View 380 XL TG ARGB Snow Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 420mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with four Hydraulic Bearing 120mm ARGB Lite Fans, and up to ten 120mm fans can be installed. For radiator compatibility, it can support up to a 360mm radiator at the top or the motherboard side, giving more options for high-end expansion!

Dimensions

CPU Cooler

Max height 160mm

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)

VGA

Length limitation

420mm

PSU Support

PSU

Max length 180mm


More from the Manufacturer

Technical Information
Motherboard Supported: ATX
Motherboard Supported: Mini ITX
Motherboard Supported: Micro ATX
Number of Fans Supported: 2
Number of Fans Installed: 3
Fan Size Supported: 4.72"
Fan Size Supported: 5.51"
Installed Fan Size: 4.72"
Installed Fan Size Details: 4 x 120mm
Features: Dual Chamber
Features: Cable Management
Features: Built-in GPU Holder
Window Panel: Yes
Window Panel Location: Front
Window Panel Location: Left Side

Bays
Number of Internal 3.5" Bays: 1
Number of Internal 2.5" Bays: 2
Number of Total Expansion Bays: 3

I/O Expansions
Total Number of Expansion Slots: 8

Interfaces/Ports
Total Number of USB Ports: 3
USB Port Details: 2 x USB 3.0
USB Port Details: 1 x USB 3.2 Gen 2 Type C
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes

Physical Characteristics
Color Family: White
Product Color: Snow
Product Material: Tempered Glass
Product Material: SPCC
Cooler Type: Fan Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 6.30"
Maximum PSU Length: 7.09"
Maximum GPU Length: 16.54"
Height: 18.5"
Width: 11.3"
Depth: 18.5"

Warranty
Limited Warranty: 3 Year
  • Wrapped with a combination of 4 mm Tempered glass and mesh panels that View 380 XL provides an excellent look at the system inside while still providing plenty of cooling.
  • Extra cutouts allow support for ATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
  • Featuring support for up to ten 120 mm fans as well as 360 mm radiator support on the top and side of the chassis. Even maxxed out on cooling the View 380 XL has plenty of space to work in while building and maintenance. Preinstalled are three 120 mm ARGB Lite fans mounted on the side angeled tray as intake along with a single additonal fan mounted in the rear as exhaust to start you off.
  • Located next to the bottom mounted I/O in the front side of the chassis we have angled out the side fan tray to better angle incoming air towards components, and to maintain the clean look of the View series we added in an angled mesh panel.
