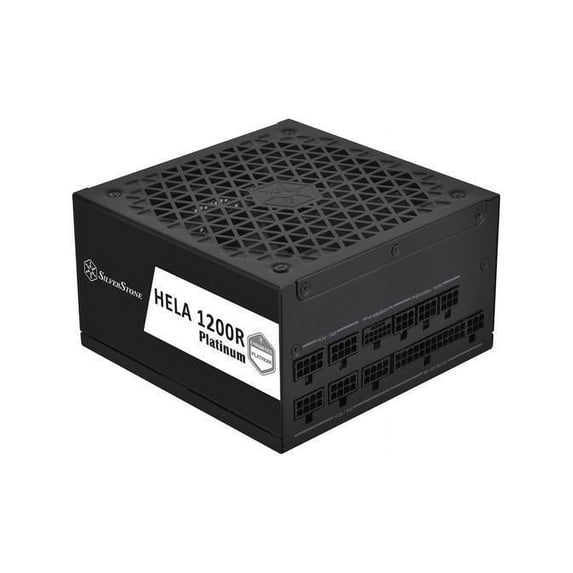

Silverstone HELA 1200R Platinum Cybenetics Platinum 1200W PCIe 5.0 Fully Modular Power Supply

HELA 1200R Platinum

Cybenetics Platinum 1200W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply

Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard

Cybenetics Platinum efficiency certification

24/7 continuous power output with 50^o operating temperature

Fully Modular design

All Japanese electrolytic capacitors

Ultra silent 135mm FDB fan with semi-fanless function

12VHPWR PCIe connector supports ATX 3.0 specifications

The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems

Cybenetics Platinum Certified

Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity

Fully modular design with universal EPS / PCIe connector interface

Flat cables have much greater flexibility to allow for tighter folding and management of cable

All Japanese electrolytic capacitors

Ensure reliable power and extended life span

Silent 135mm FDB fan

Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office usProduct No.
SST-HA1200R-PMModel (safety certification)
SST-AX1200MCPT-AColor
Black (lead-free paint)Max. DC Output
1200WPower density
620W per literLoad Range
Output / +3.3V / +5V / +12V / +5VSB / -12V
Max.(Amps) / 22A / 22A / 100A / 2.5A / 0.3A
Min.(Amps) / 0A / 0A / 0A / 0A / 0A
Range (%) / +/-3% / +/-3% / +5/-7% / +/-5% / +/-5%
Line Reg.(%) / +/-1% / +/-1% / +/-1% / +/-1% / +/-1%
Ripple(mVp-p) / 30mV / 30mV / 70mV / 40mV / 40mVCombined +3.3V and +5V
120WCombined +12V
1200WInput Voltage
90 - 264 VrmsInput Frequency Range
47Hz - 63HzPFC
Active PFC (PF>0.9 at full load)Efficiency
Greater than or equal 87% and <89% overall efficiencyMTBF
100,000 hoursOperating temperature
0^oC - 50^oCProtection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operationConnectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
6 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connectorCooling System
Silent 135mm FDB fanNoise Level
0 dBA minimumCertification
Cybenetics PlatinumForm factor
ATX (PS2)
