SPDT stands for Single Pole Double Throw. This type of toggle switch lets you control two different circuits from a single switch. When you flip the switch, it connects the input to one of two outputs, making it great for applications where you want to switch between two devices or functions. SPDT switches are commonly used in automotive, marine, and home improvement projects. If you need to alternate power between two sources or devices, an SPDT toggle switch can be a practical choice.

Wiring an SPDT toggle switch involves connecting three terminals: one common and two outputs. Here’s a general guide:

1. Identify the common terminal (usually the center).
2. Connect your power source or input wire to the common terminal.
3. Attach your two output wires to the remaining terminals.
4. Secure all connections and ensure the switch is rated for your voltage and current needs.

Always turn off power before wiring and consult a qualified electrician if you’re unsure. Product instructions may vary, so check the included manual for details.

Many SPDT toggle switches are designed to handle both low-voltage (like 12V DC) and standard household voltage (like 120V AC), but it’s important to check the switch’s voltage and current ratings. You’ll find this information on the product packaging or in the specifications. Using a switch outside its rated limits can be unsafe. For automotive or RV projects, 12V switches are common, while home wiring typically uses 120V-rated switches. Always match the switch to your project’s requirements for safe operation.

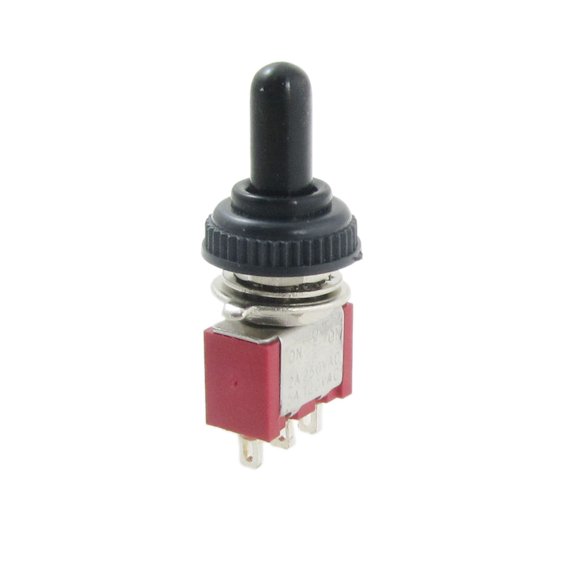

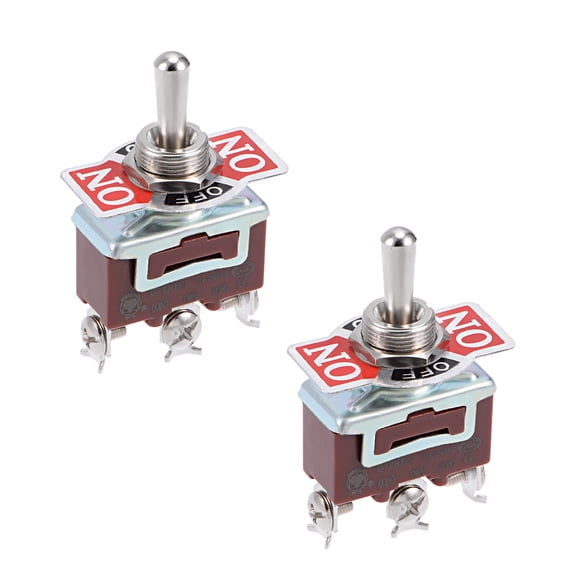

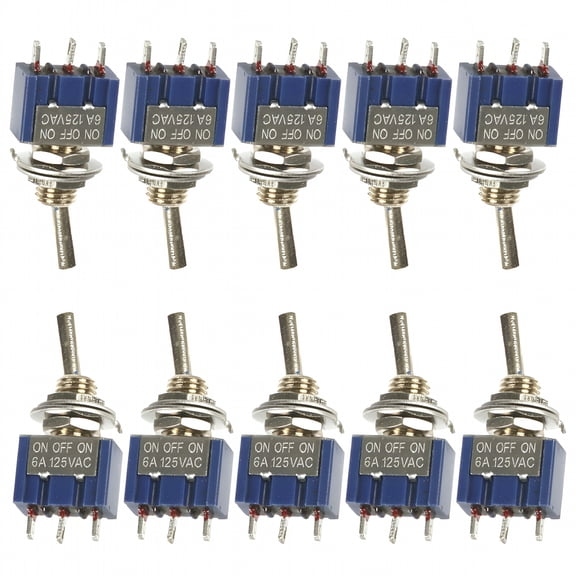

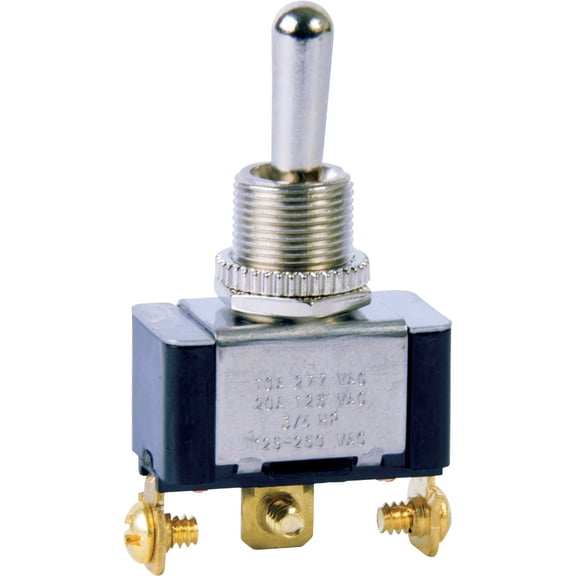

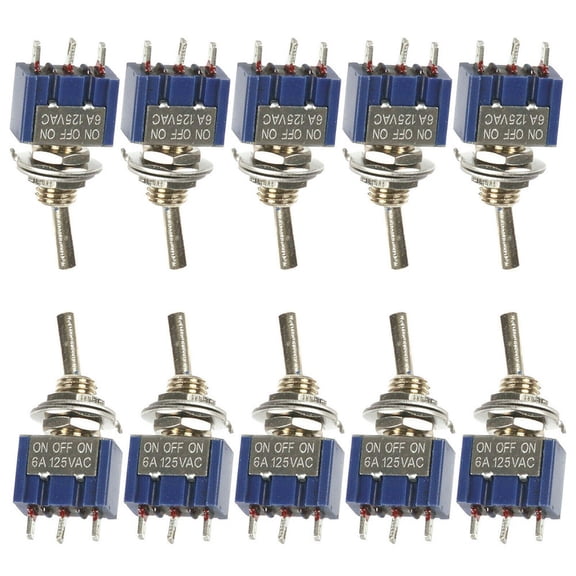

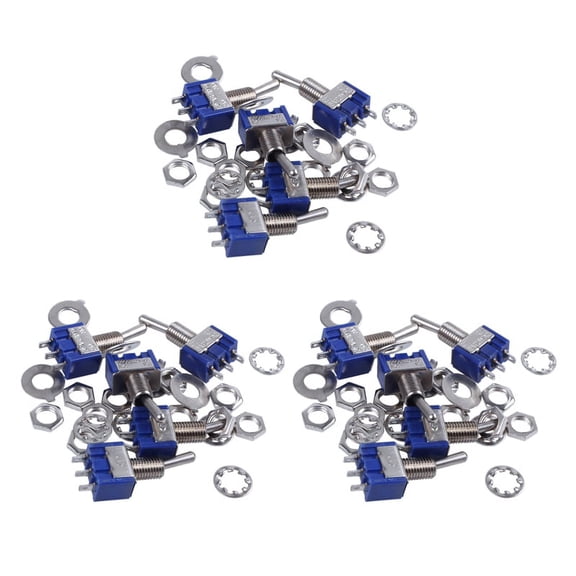

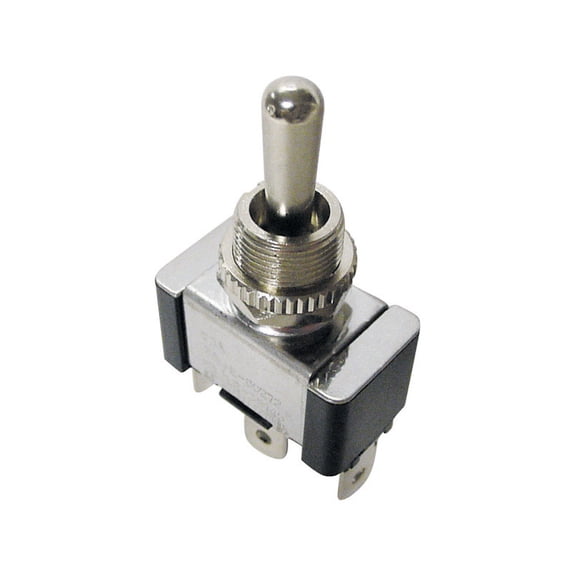

An On/On SPDT switch toggles between two active circuits, with no off position. An On/Off/On switch adds a center off position, letting you disconnect both outputs. The right choice depends on your needs:

• On/On: Switches between two devices or functions.
• On/Off/On: Lets you turn both outputs off or select between them.

Check your project requirements to decide which style fits best.

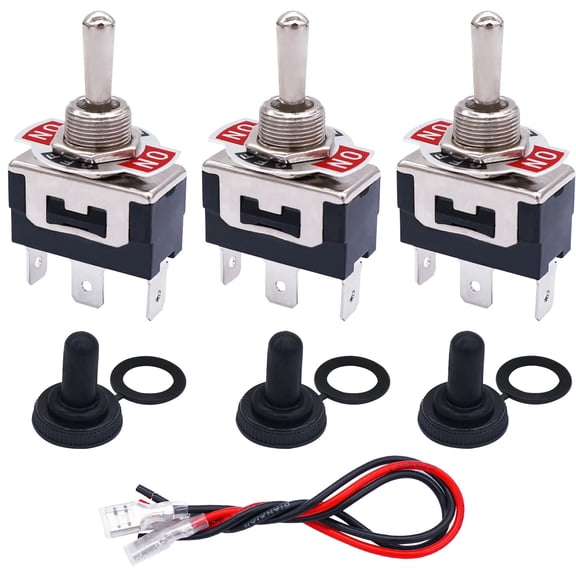

For outdoor or damp environments, look for SPDT toggle switches labeled as "sealed" or "weather-resistant." These switches are designed to help protect against moisture and dust. Always check the product description for details about environmental ratings. If you’re installing a switch in a location exposed to the elements, using a weatherproof cover or enclosure can add extra protection. Following these steps can help extend the life of your switch in outdoor settings.
