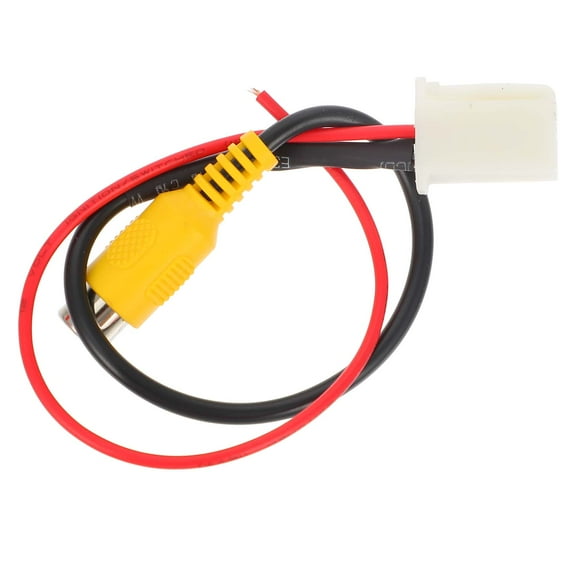

Most backup camera cables include two kinds of red wires:

• Camera power lead: The thicker red wire at the camera usually connects to a 12V source (commonly the positive wire on the reverse light). The black wire goes to a reliable ground.

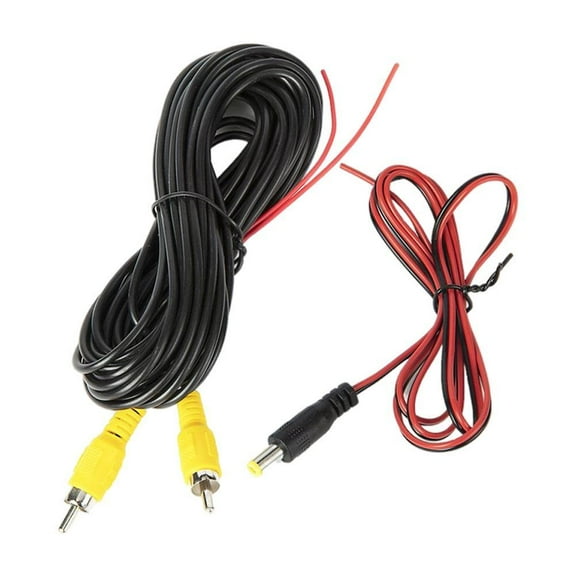

• Thin red “trigger” pigtail: Often bundled alongside the RCA video cable on both ends. At the rear, you can tie it to the same 12V reverse signal. Up front, connect it to your screen’s “reverse/backup trigger” input so the display switches when you go into reverse.

Vehicle wiring varies, so it’s smart to confirm with a test light or multimeter and add an inline fuse near the tap. If your display auto-detects video, the trigger may be optional.

For most backup camera setups, the yellow RCA handles the video signal. Here’s a quick guide:

• Display connection: Plug the yellow RCA into the screen’s “CAM IN” or “VIDEO IN” port.
• Power is separate: RCA is for video only. Power and ground use dedicated red/black wires, while a thin red pigtail can carry a 12V trigger to the head unit.
• Direction labels: Some cables are labeled “camera” and “monitor.” If so, follow those markings; if not, most RCA runs can work either way.

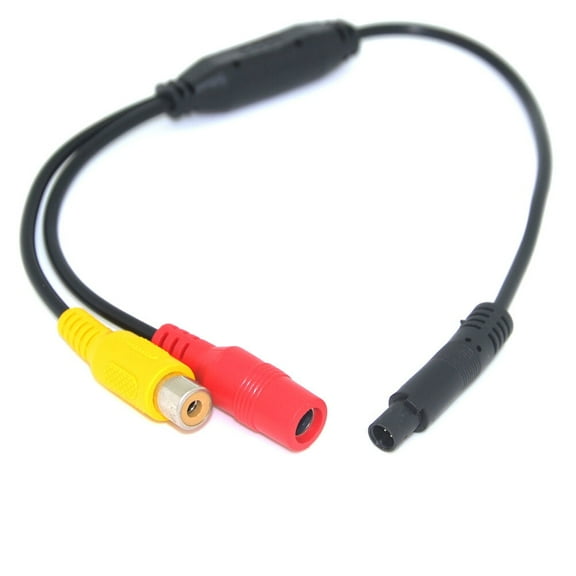

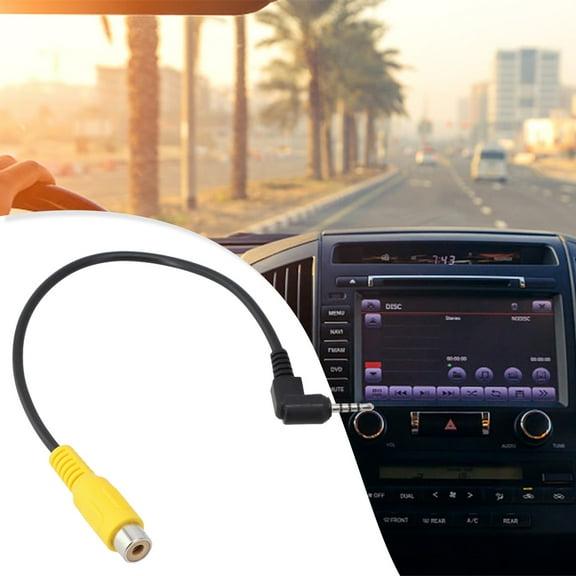

• Adapters: If your gear uses 4‑pin or BNC connectors, use a compatible adapter to convert to RCA.

For a cleaner picture, avoid routing the video lead tightly alongside high-current power cables.

Most backup cameras use a few common connections:

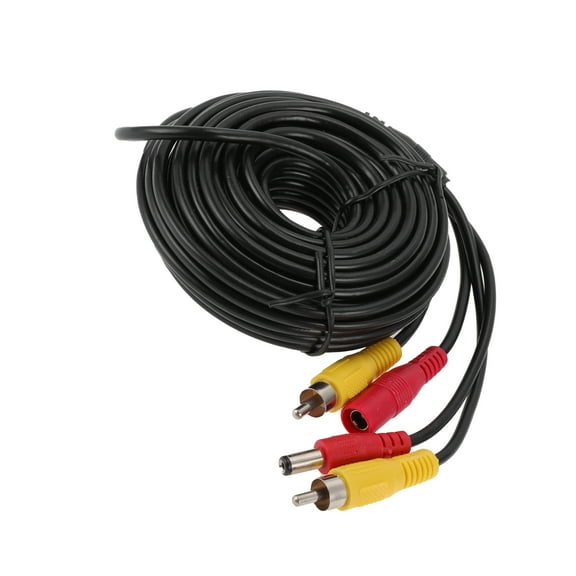

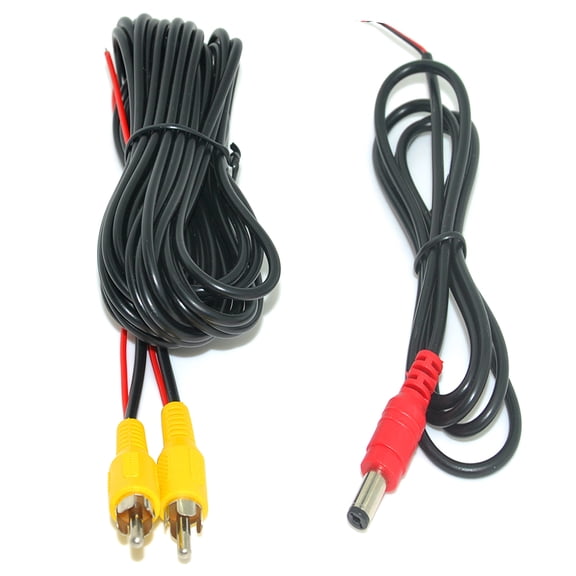

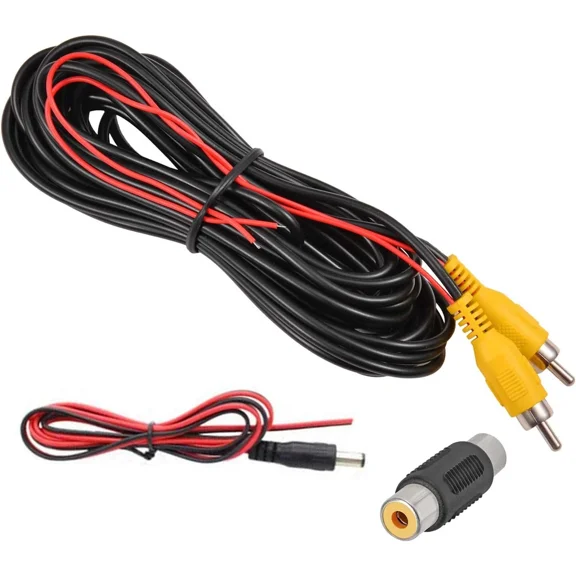

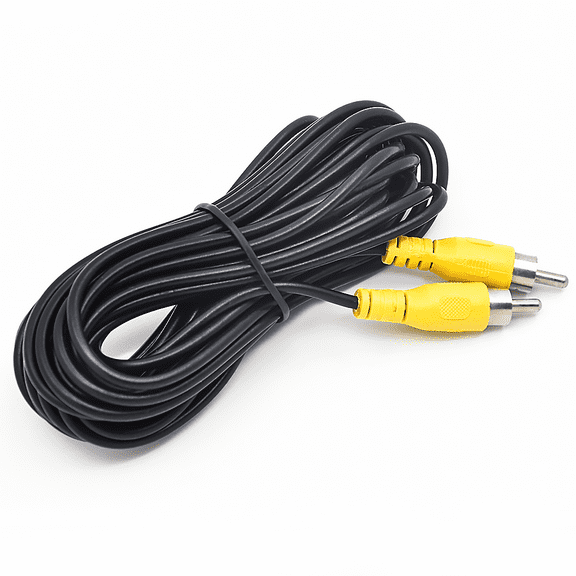

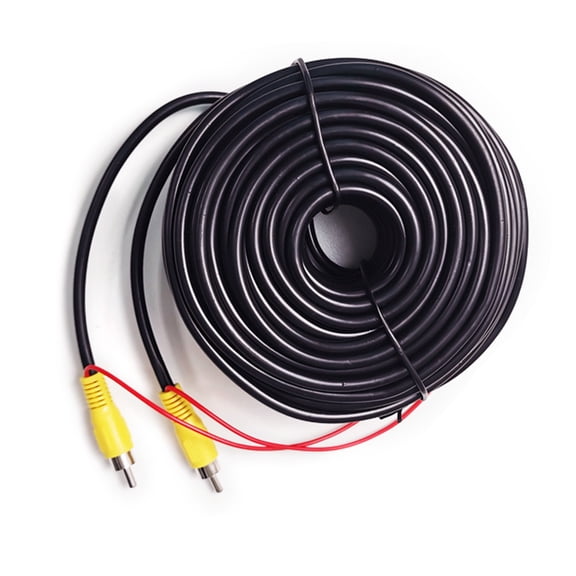

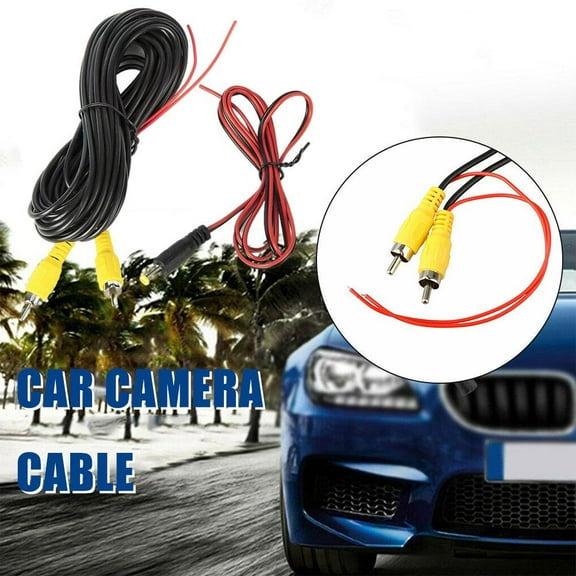

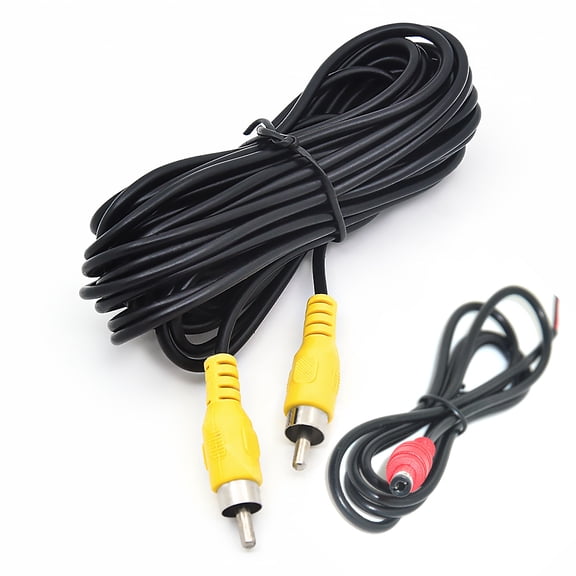

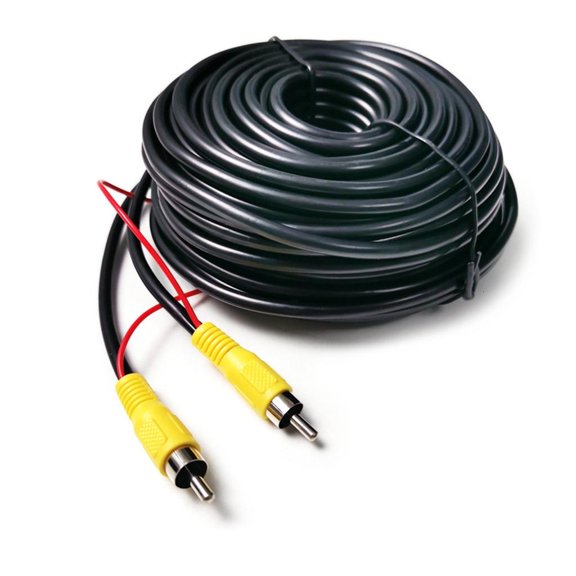

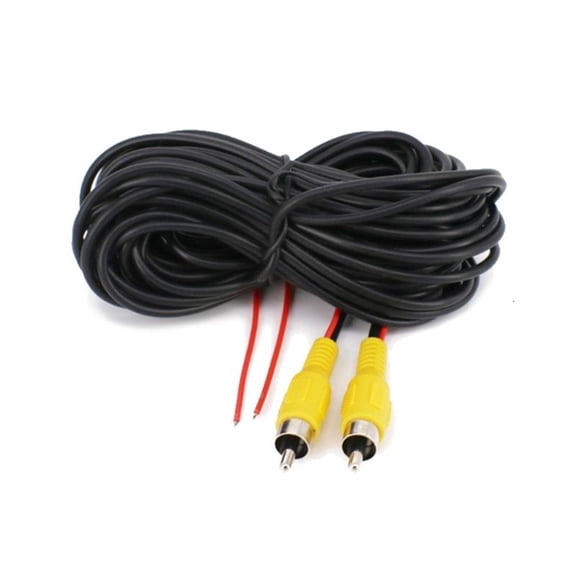

• RCA video cable: Carries the video signal from the camera to the monitor or head unit. Many options include a built-in thin red pigtail for a 12V trigger.
• Power leads: A red (+12V) and black (ground) for the camera. These are often tied into the reverse light circuit, or another switched 12V source depending on your setup.
• Trigger wire: A small red wire that can run alongside the RCA to signal the screen to switch to the camera view.

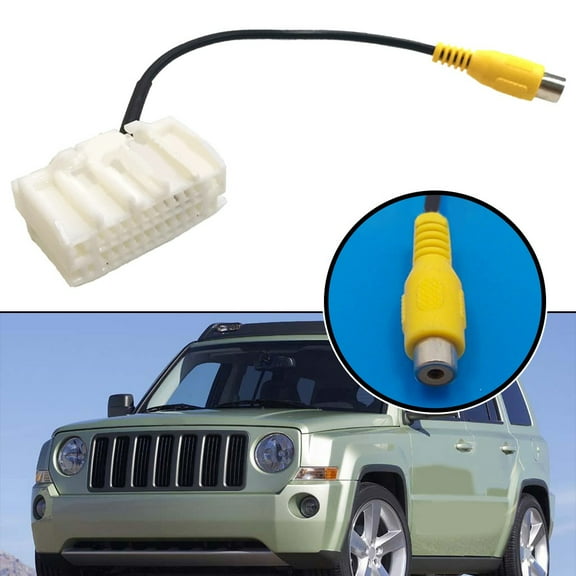

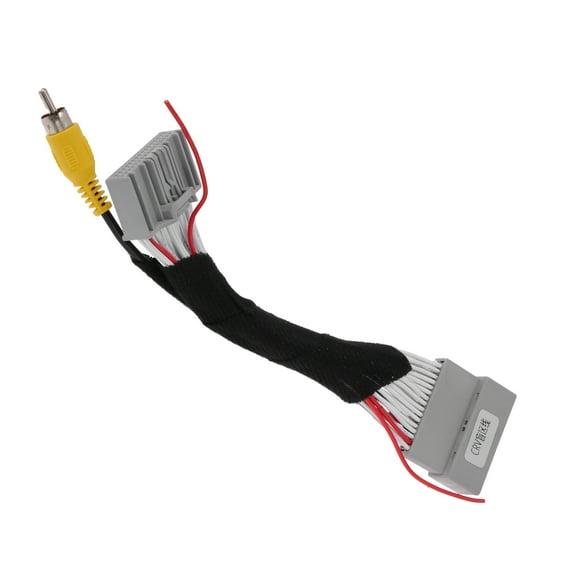

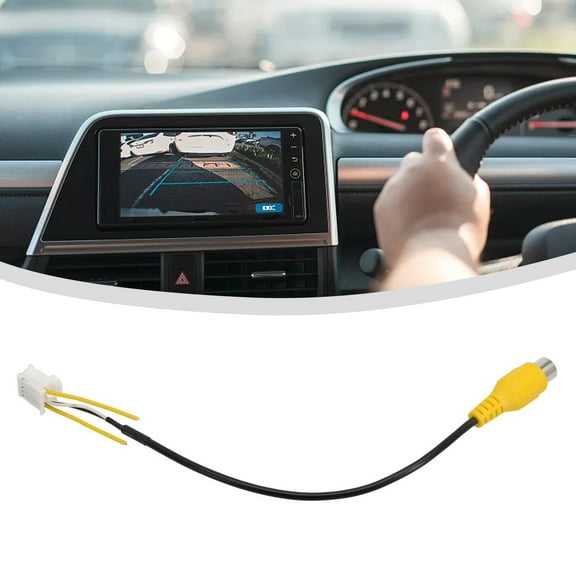

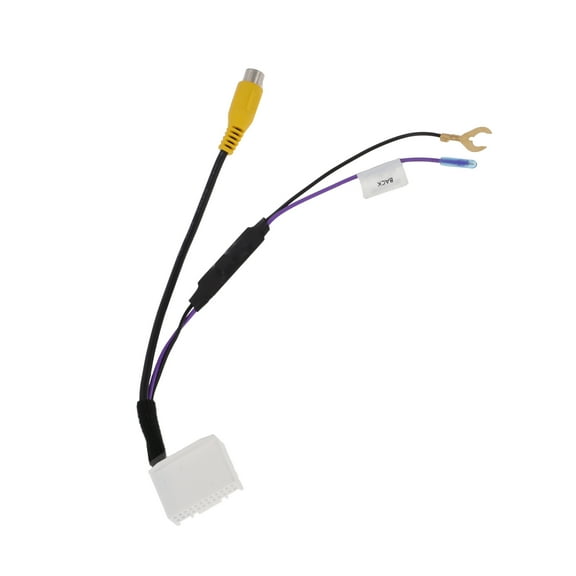

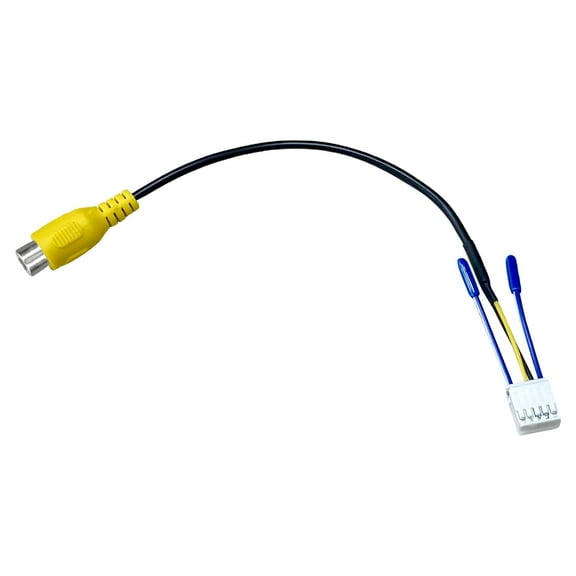

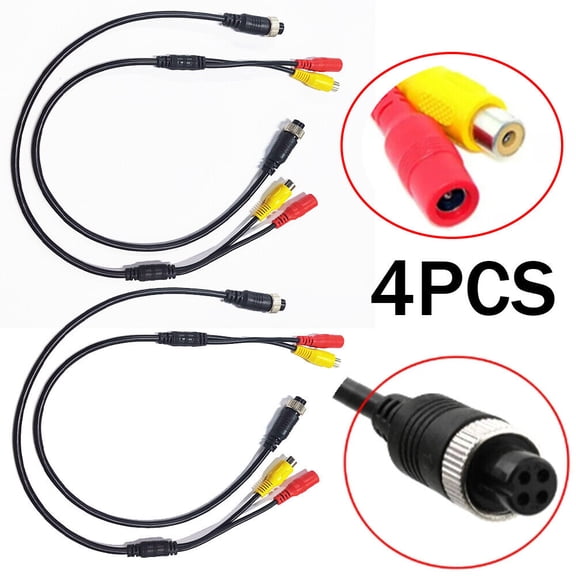

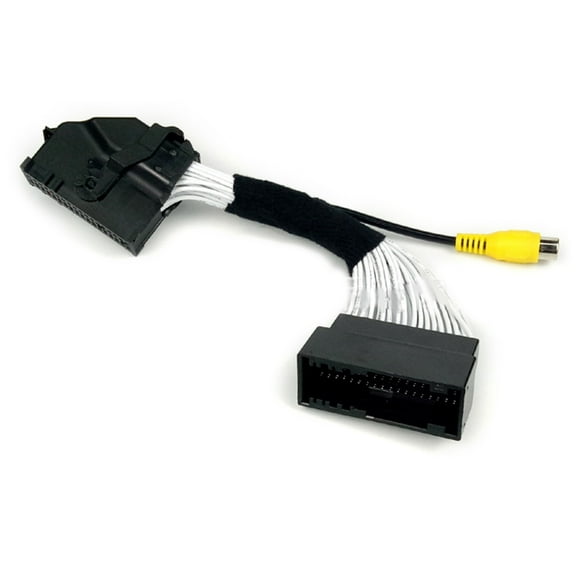

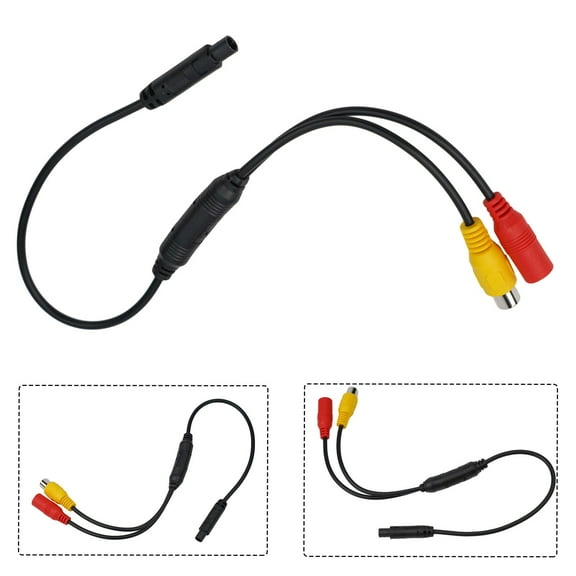

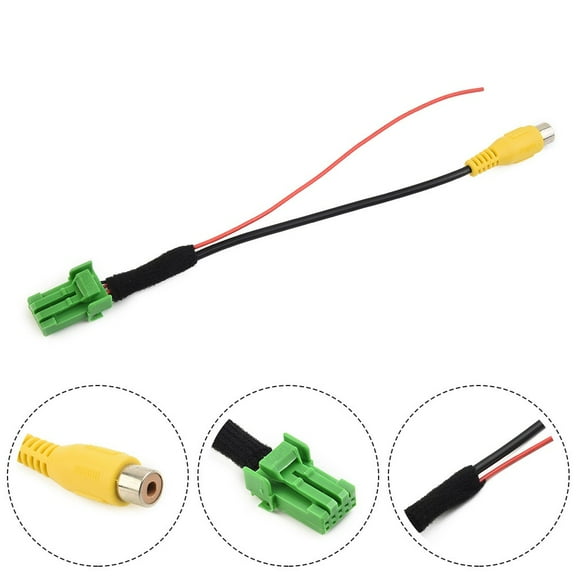

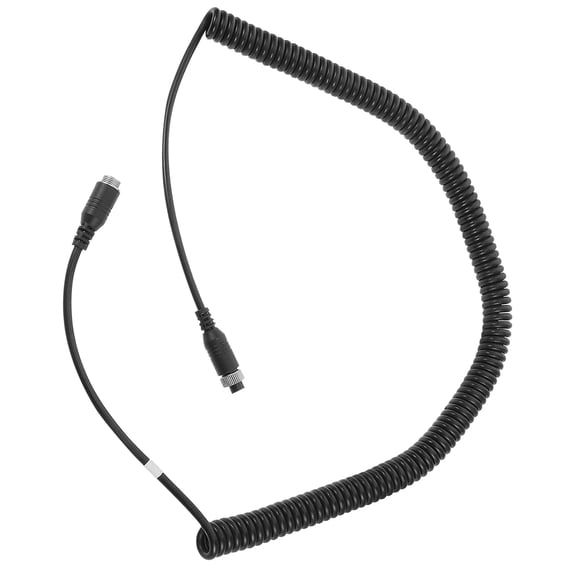

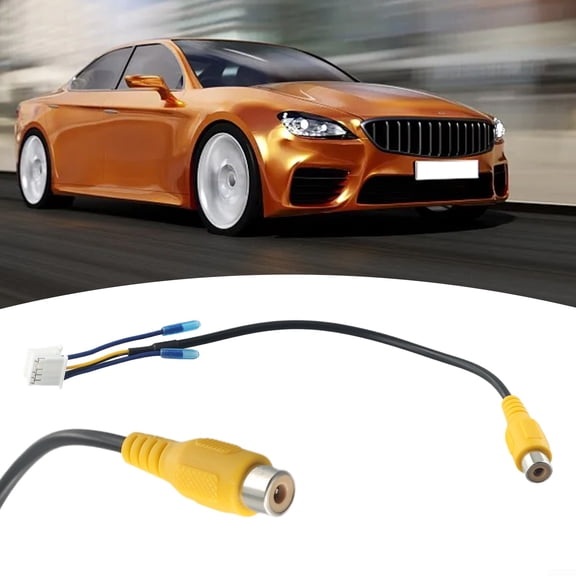

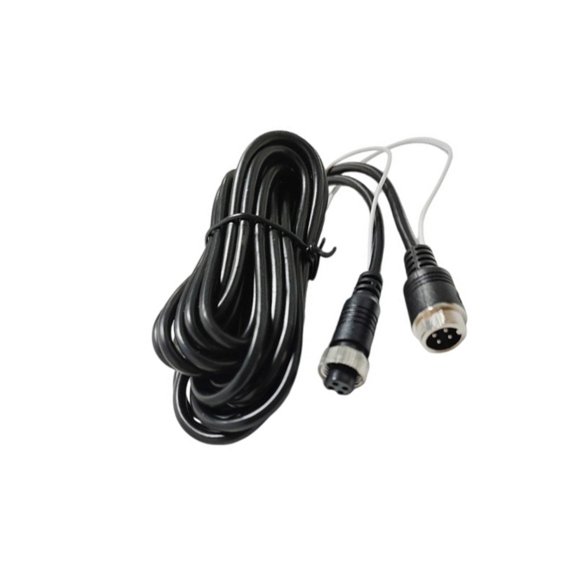

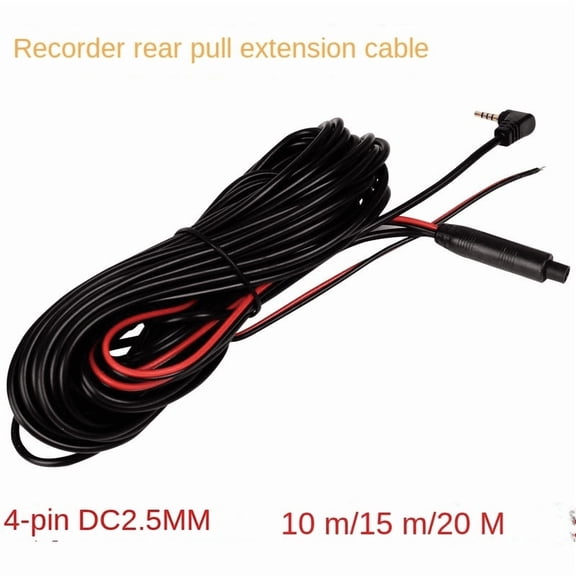

• Connector variations: Some systems use BNC, DC barrel plugs, 4‑pin “aviation” connectors, or vehicle‑specific adapters (e.g., to convert a factory harness to RCA).

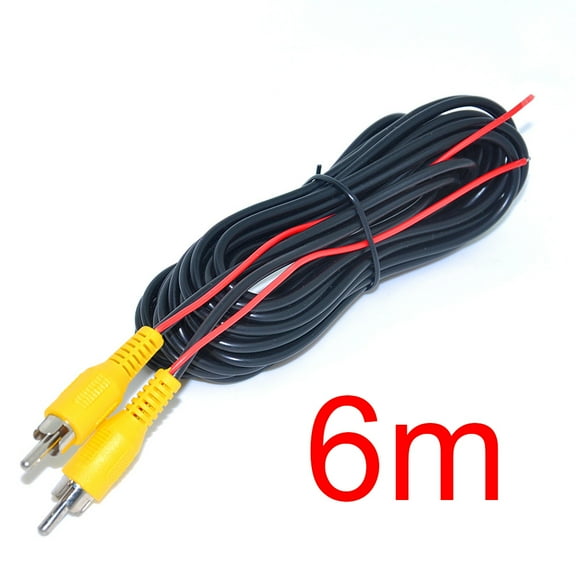

Lengths commonly range from 5m to 20m for different vehicle sizes.

A tidy install can help reduce noise and wear:

1. Plan the route: Measure from the rear to the dash along door sills. Hatchbacks and SUVs may need extra slack for tailgate movement.
2. Test first: Power the camera and screen temporarily to confirm video works before hiding cables.
3. Disconnect the battery: This can help avoid electrical issues while working.
4. Hide the cable: Tuck the RCA under trim panels, use existing grommets, and add cable loom where it passes metal edges.
5. Avoid hazards: Keep clear of moving hinges, sharp edges, and side‑curtain airbag paths. Don’t tightly coil excess.
6. Reduce interference: Don’t run parallel to high‑current wires for long stretches.

Longer options (e.g., 10–20m) are available if your vehicle requires extra reach.

Length depends on your vehicle’s size and routing path:

• Measure the path: Run a string from the camera location to the screen along the intended route, then add a little extra for slack and turns.
• Typical picks: Around 5m can suit many sedans; 10m often fits larger SUVs and crossovers; 20m may be helpful for vans, limos, or long trucks.
• Extra is safer: A bit longer is usually easier to manage than too short. Coil excess loosely away from power modules.
• Signal quality: Very long runs can soften the image. Choosing a shielded cable and minimizing extra adapters may help maintain picture quality.

You’ll find multiple lengths and adapter styles to match most installs.
