Start by matching the tool to what you work on most.

• Coverage: Look for a nut and bolt thread checker that includes both metric and SAE if you see mixed hardware. Check the count of sizes and pitches.

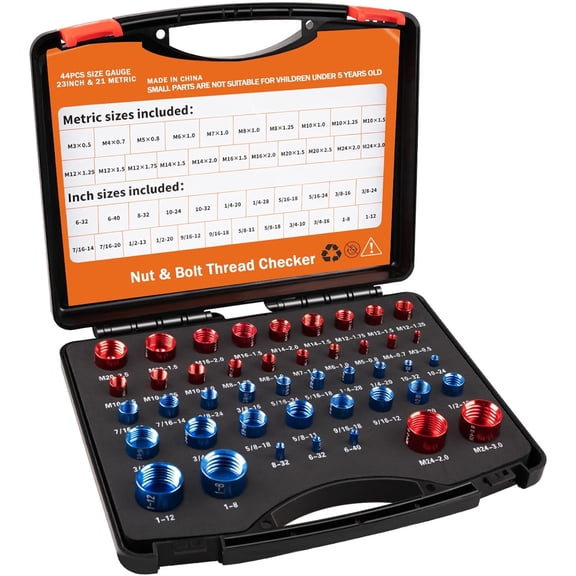

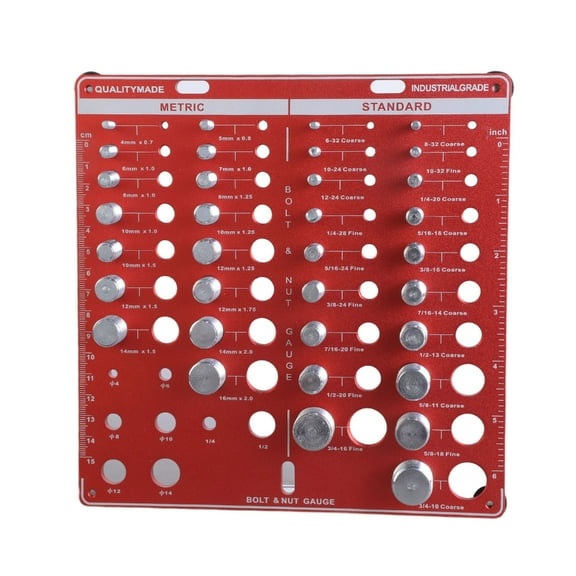

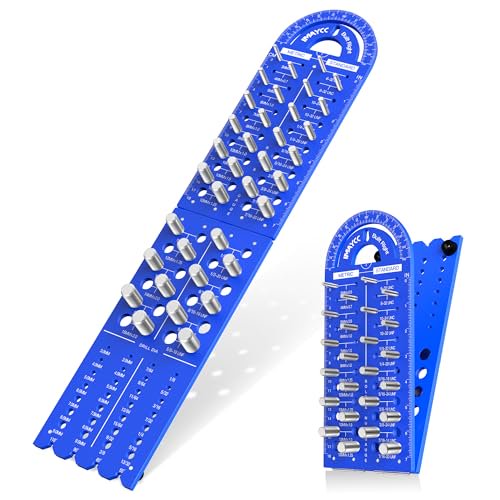

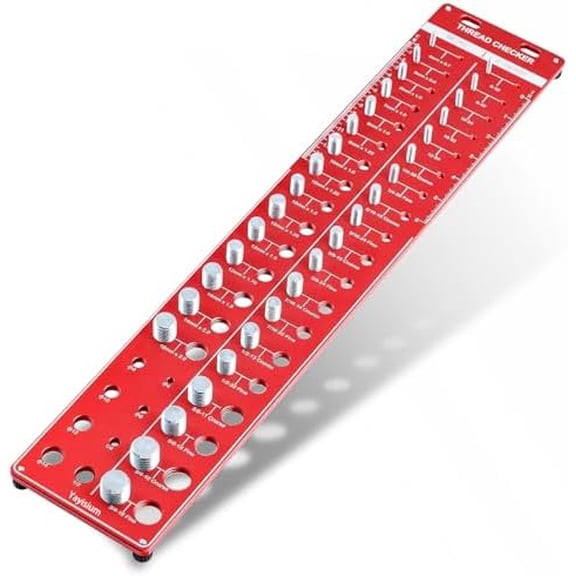

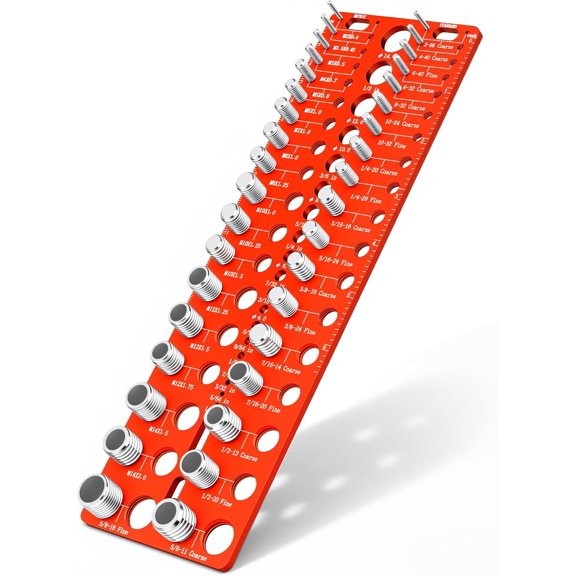

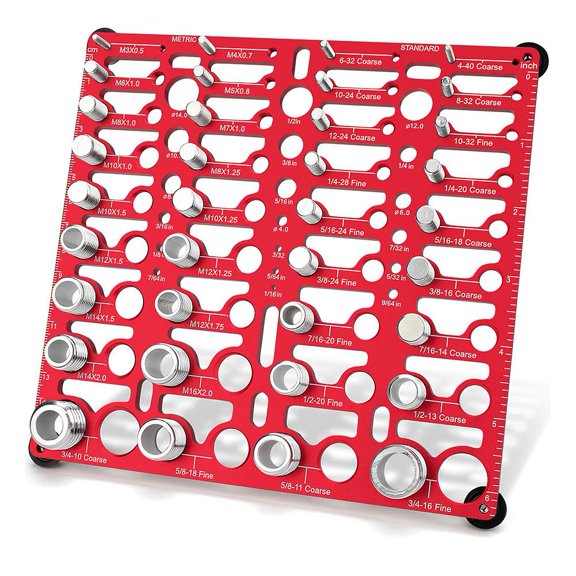

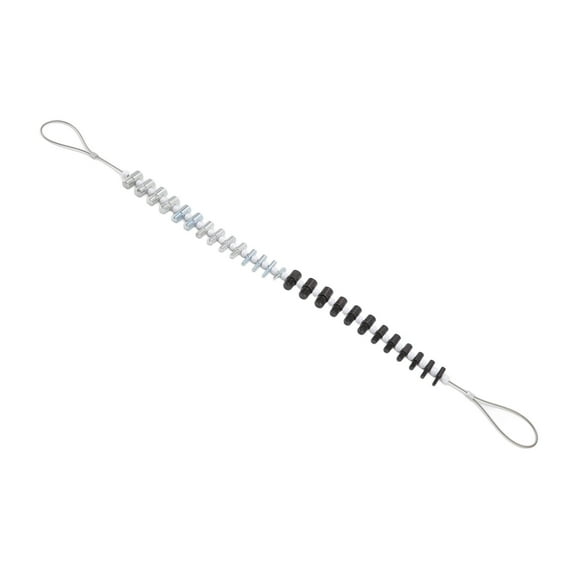

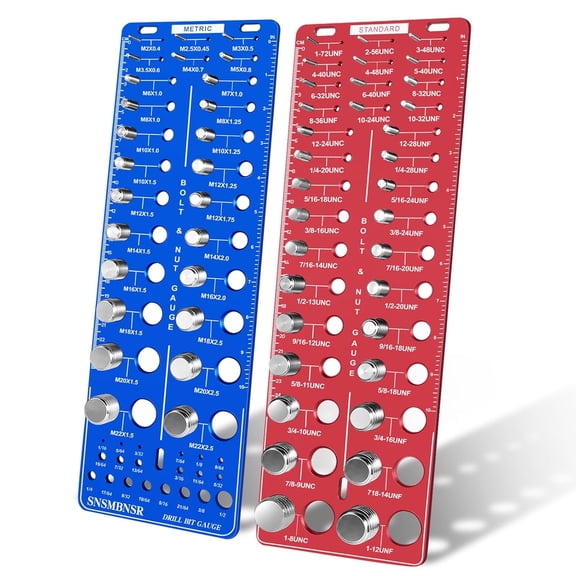

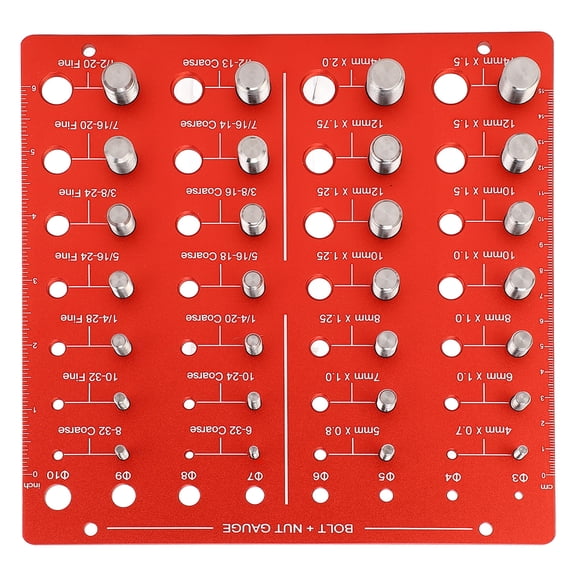

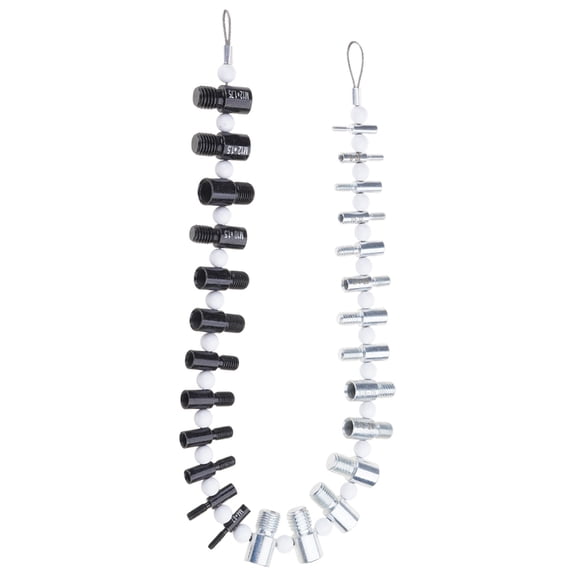

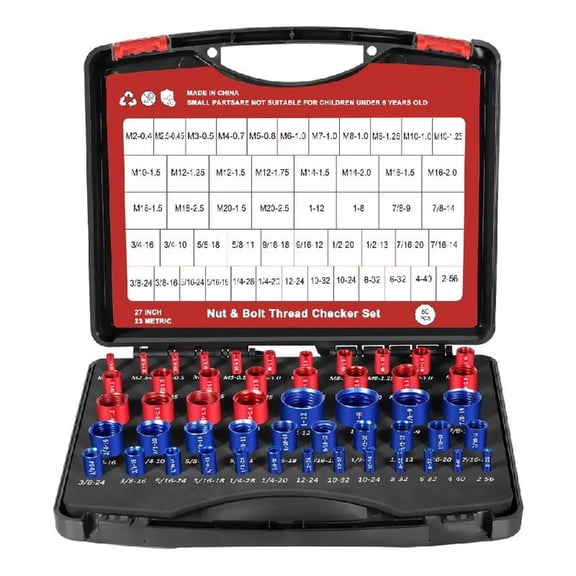

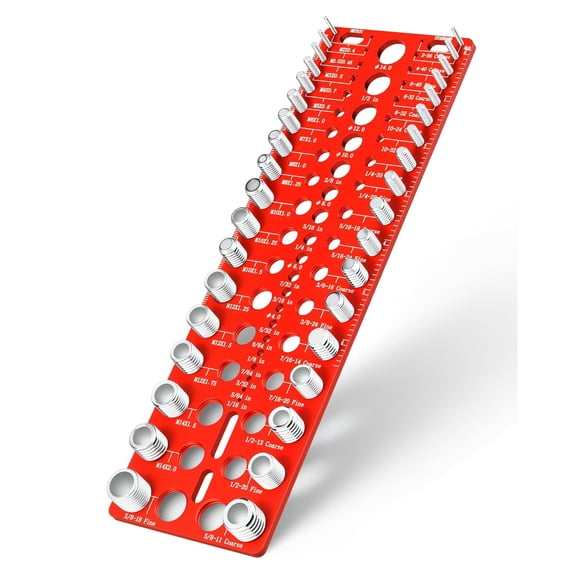

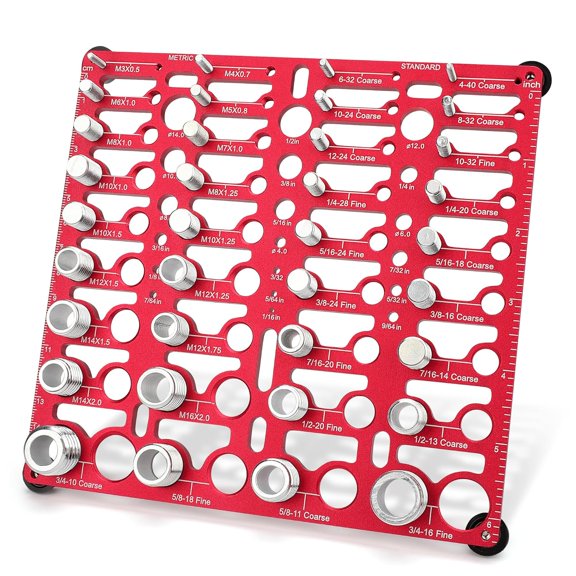

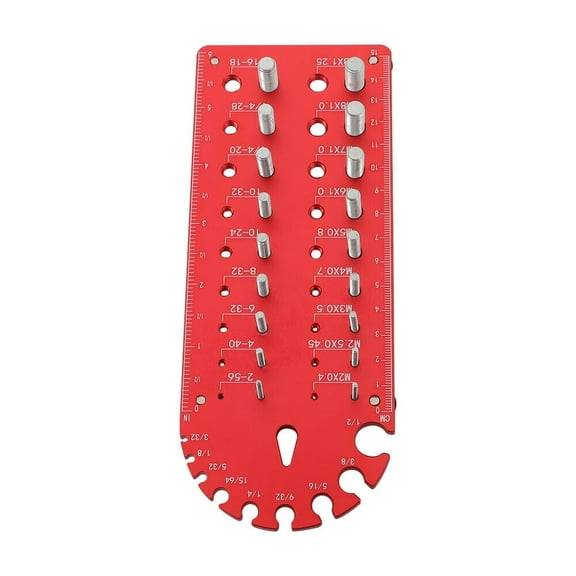

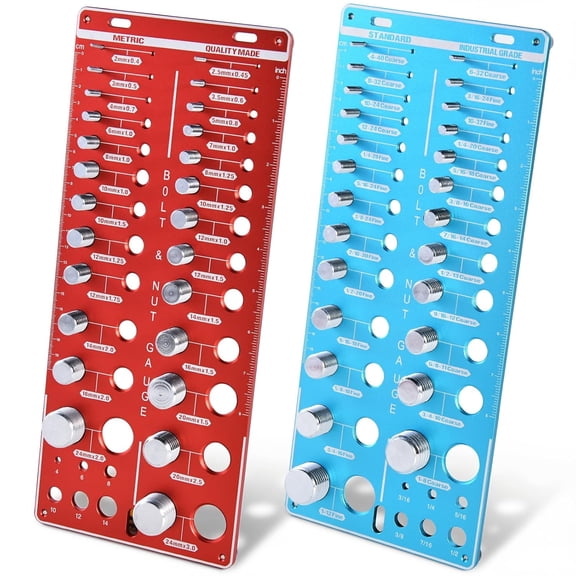

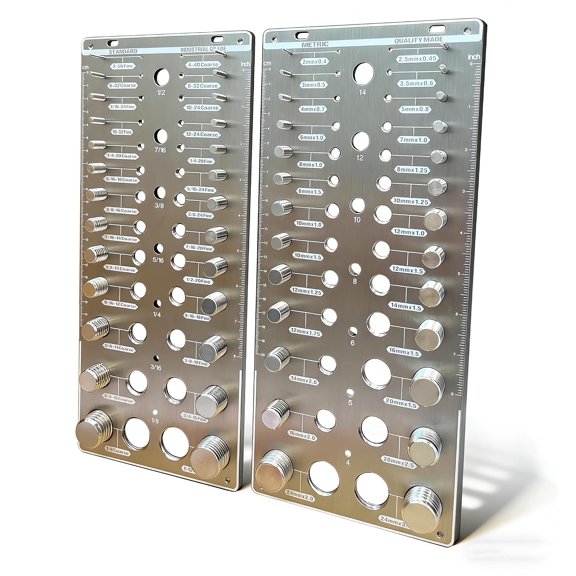

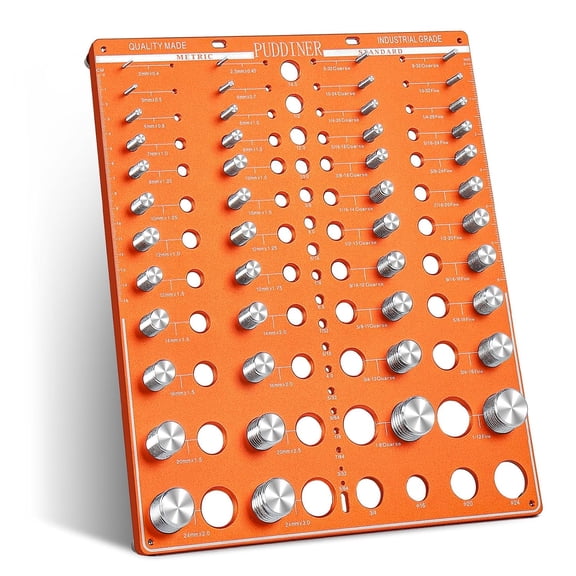

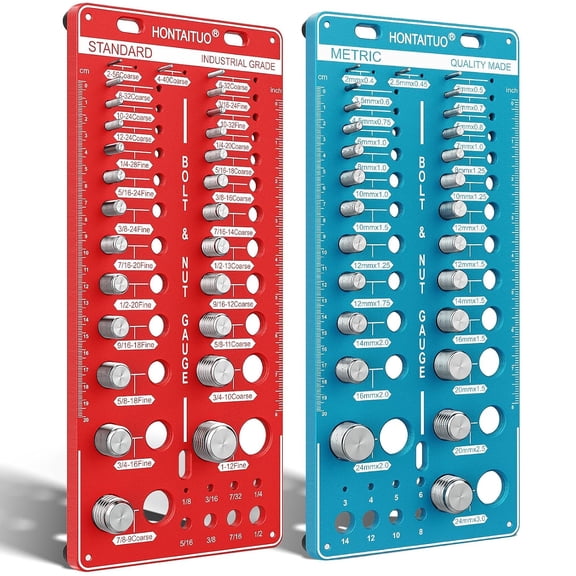

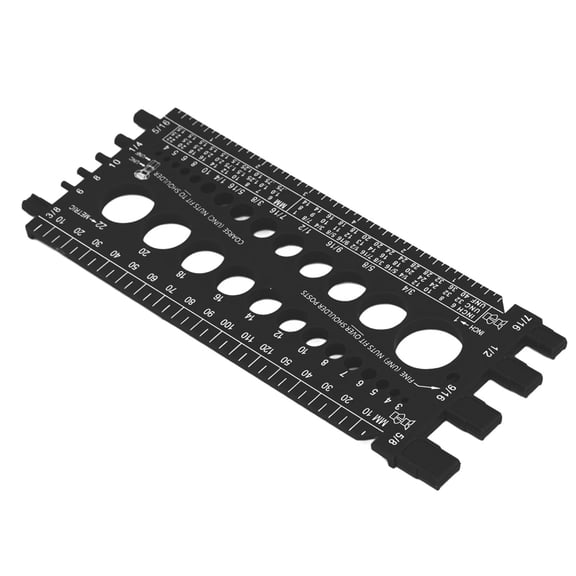

• Format: Wall‑mount boards are great for shop benches; compact, cabled sets travel well and slip into a toolbox.
• Compatibility: If you deal with long bolts, verify stud length or through‑hole depth in the product specs.
• Extras: Some sets add drill bit gauges and rulers for quick reference.
• Durability & readability: Clear labels and sturdy materials can make daily use easier.

You can compare features using filters and specs on the product page, and reviews may offer real‑world context. Availability and options can vary by location.

1. Identify the fastener: Decide if you’re sizing a bolt (male) or a nut (female).
2. Clean the threads: Wipe off debris so the fit isn’t misleading.
3. Match the diameter: Start with a likely size on the checker (studs or holes).
4. Find the pitch: Try different thread pitches (TPI for SAE or mm pitch for metric) until it threads smoothly.
5. Confirm fit: A correct match turns by hand without wobble or resistance—don’t force it.
6. Note the label: Record the size and pitch shown on the tool for replacements.

For long bolts, cabled or board‑style checkers with protruding studs can help. Following these steps can improve accuracy, but results may vary based on wear and thread condition.

Use the labels and pitches on the thread checker as your guide.

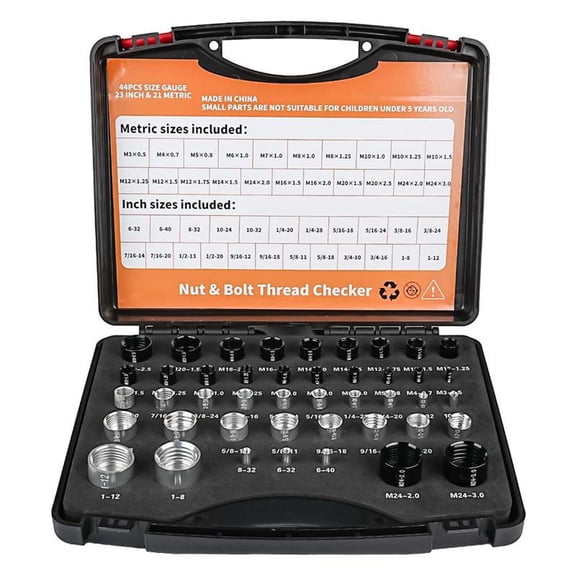

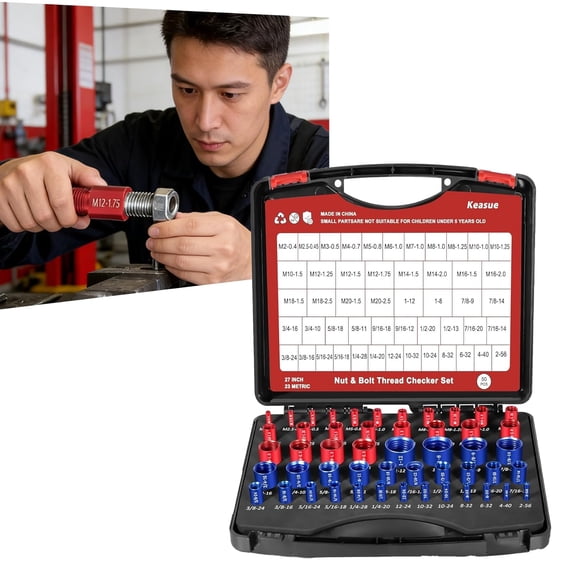

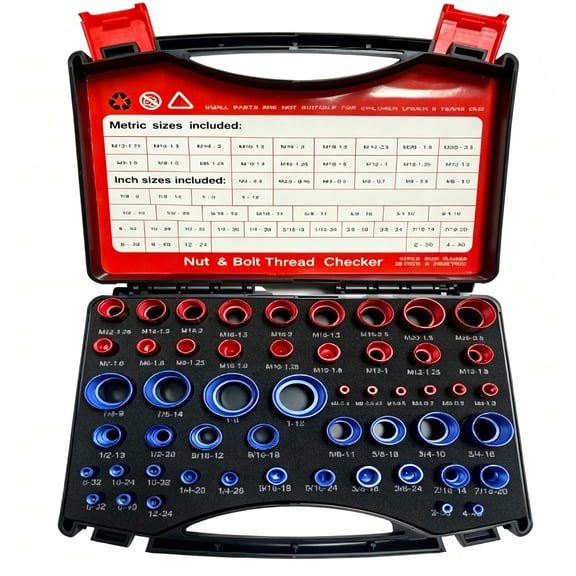

• Read the markings: Metric sizes display in millimeters (e.g., M6 × 1.0). SAE shows inch sizes with threads per inch (e.g., 1/4‑20).
• Test both systems: If you’re unsure, try a metric stud/hole first, then an SAE option, and compare which threads more smoothly by hand.
• Check the pitch type: Metric gauges measure distance between threads; SAE gauges count threads per inch. The correct match should start easily and seat flush.

It’s common to encounter both standards. Using a nut and bolt thread checker that includes metric and SAE can simplify identification, though coverage varies by set.

Coarse and fine refer to the thread pitch. Your thread checker will have multiple pitches for the same diameter.

1. Pick the diameter: Start with the size that fits the bolt or nut best.
2. Try coarse first: Coarse pitches (e.g., 1/4‑20 or M6 × 1.0) usually engage quickly.
3. Test fine options: If the coarse pitch binds or wobbles, try finer pitches (e.g., 1/4‑28 or M6 × 0.75) until it turns smoothly.
4. Verify by feel: A proper match threads by hand without cross‑threading; don’t force it.

This approach can help distinguish pitch types, but actual fit may vary with wear, coatings, or damaged threads.

Basic care helps a thread gauge deliver consistent results over time.

• Keep it clean: Wipe studs and holes after use to remove metal dust and oils.
• Avoid force: Don’t use the checker as a wrench; forcing can bend gauges.
• Store dry: Moisture can lead to corrosion; use the included case or hang board‑style tools in a clean, dry spot.
• Inspect regularly: Check for bent studs, burrs, or loose cables. If labels fade, keep a reference card handy.
• Verify sizes: Occasionally test against known fasteners to spot wear.

If you need replacements or accessories, check the product page for available components or contact the seller. Availability can vary by item.
