Most ebike displays aren’t universal. Matching the new screen to your system can help avoid compatibility headaches.

• Voltage: Confirm the display supports your setup (e.g., 24V, 36V, 48V, 60V, or 72V).

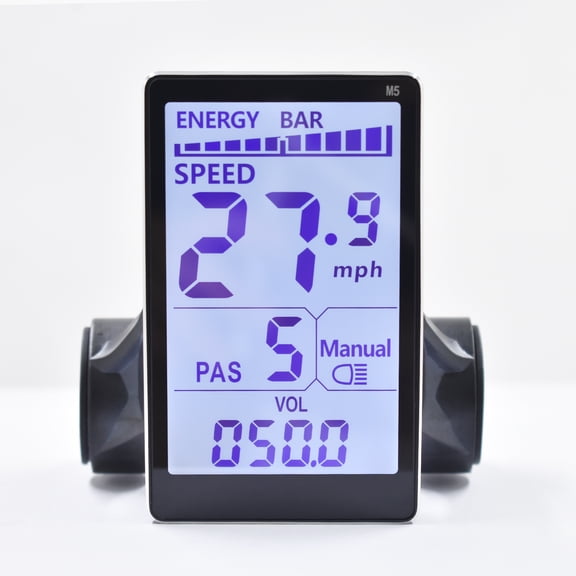

• Protocol: Match the communication type (e.g., UART, KT, or No. 2). The display and controller must speak the same “language.”

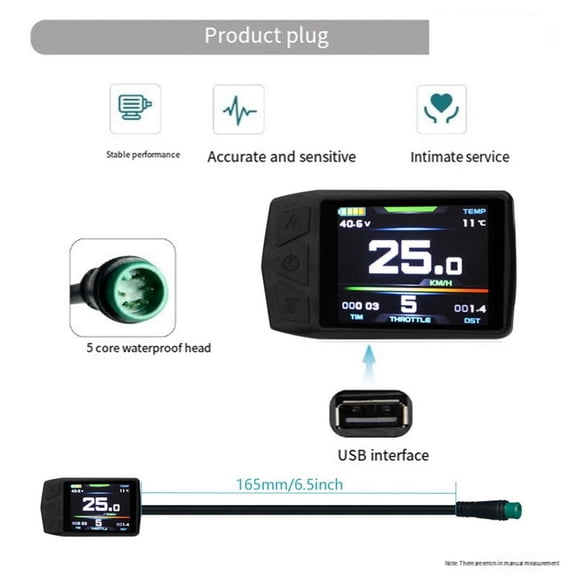

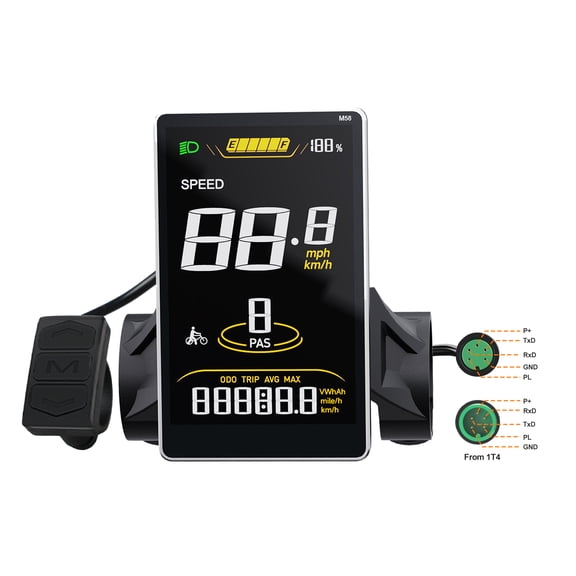

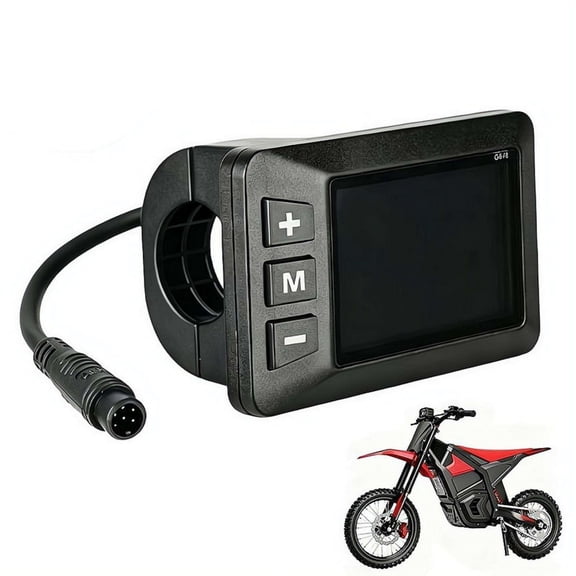

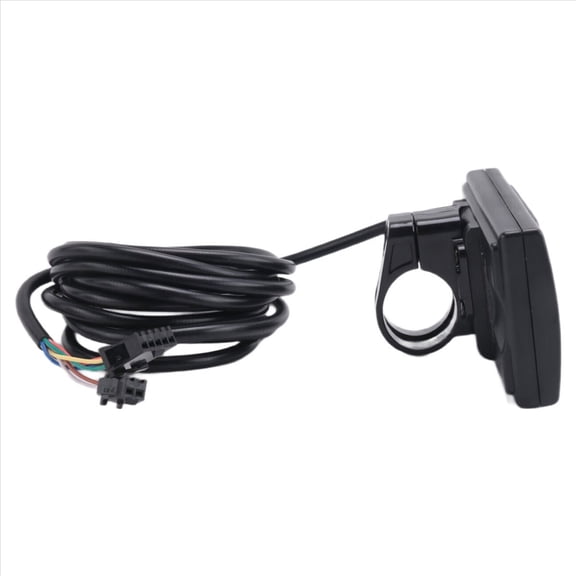

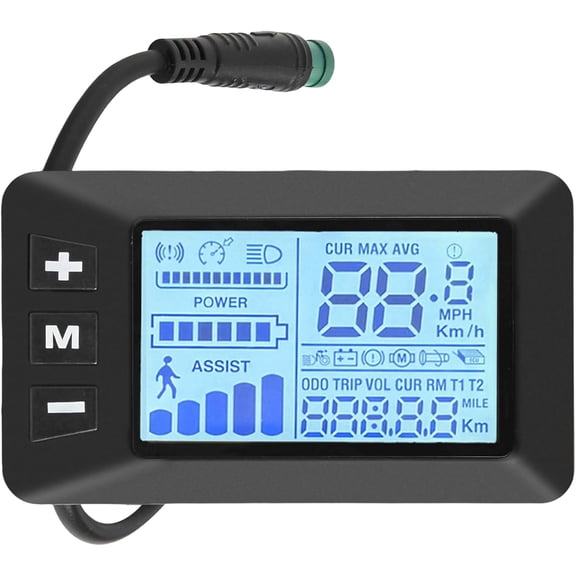

• Connector/pins: Check plug style and pin count (commonly 5‑pin waterproof/Julet or SM). Pinout must align.
• Handlebar size: Most mounts fit 22.2 mm bars; verify clamp size.
• Features: Make sure your controller supports functions shown (PAS levels, lights, USB charge, throttle readout).

It’s helpful to read the controller label/manual and compare to product specs on Walmart.com. If uncertain, a matched display‑and‑controller kit can reduce guesswork.

You can often swap a damaged display at home with basic tools, but it’s important to proceed carefully.

1. Power down: Turn the bike off and remove the battery before unplugging anything.
2. Match parts: Confirm the new display’s voltage, protocol (e.g., UART/KT), connector type, and pin count match your controller.
3. Document wiring: Take photos of existing connections for reference.
4. Unplug & mount: Disconnect the old 5‑pin/SM plug (don’t pull wires), then mount the new screen on your 22.2 mm handlebar.
5. Reconnect & configure: Plug in firmly (align arrows), then set wheel size, PAS levels, and units (mph/km/h) in the menu.

If the display won’t power up, re‑check connections and compatibility. When in doubt, a qualified bike technician can assist. You can find compatible displays and controller kits on Walmart.com.

Motor wattage indicates potential power, not a direct mph value. There’s no simple watts‑to‑speed conversion because top speed depends on multiple factors:

• Controller limits: Many systems cap speed electronically.
• Battery voltage: Higher voltage can support higher speeds, depending on the controller.
• Gearing, tire size, and terrain: These influence how power translates to road speed.
• Rider and wind: Weight and aerodynamics matter.

Product pages often list estimated top speeds for a given setup (some show around 28–32 mph on certain models, with higher figures on specific off‑road configurations). Your display shows real‑time speed; keeping wheel size and units set correctly helps accuracy. Always follow local e‑bike speed rules.

Ghost pedaling is when your legs spin with little resistance while the motor does most of the work—common at high assist levels or when you’re in too low a gear at higher speeds.

• Shift up: Use a higher gear so your cadence matches the bike’s speed.
• Lower PAS: Drop to a gentler pedal‑assist level to add more of your own input.
• Tune settings: Some displays let you adjust start strength, assist levels, or speed limits to reduce the effect.
• Ride cadence: Aim for a comfortable, steady spin rather than very fast, light pedaling.

If it persists, a general tune‑up or checking with the bike’s support team can help identify system‑specific adjustments.

Speed readings can drift for a few common reasons, and a few quick checks may improve accuracy.

• Wheel size setting: Make sure the menu matches your tires (e.g., 20", 26", 27.5", 29", or 700C). Fat tires (like 4.0") may need the correct circumference setting.
• Units: Verify mph vs. km/h is set as intended.
• Signal source: Depending on your system, speed may come from a wheel sensor or the motor/controller. Ensure the sensor, magnet alignment, and cable are intact if applicable.
• Compatibility: Mismatched protocols or pinouts between display and controller can cause odd readings.

After adjustments, compare against a known distance or GPS. If discrepancies remain, consider contacting the bike maker or a technician.
