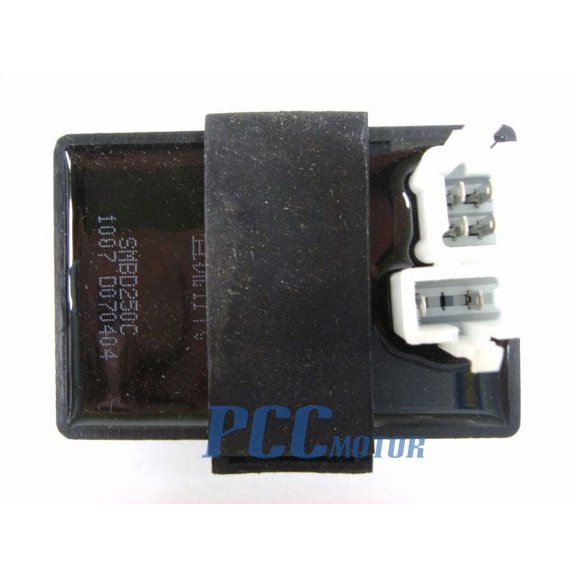

A DC CDI (Capacitor Discharge Ignition) box works by using the vehicle's battery to store and release electrical energy for ignition. Here's a simple breakdown:

• Battery Power: The unit draws power directly from the battery, not the stator.
• Capacitor Charging: It charges an internal capacitor with DC voltage.
• Ignition Timing: When triggered by the engine's timing signal, the capacitor releases a burst of energy to the ignition coil.
• Spark Creation: This energy is converted into a high-voltage spark that ignites the fuel-air mixture in the engine.

This setup can provide more consistent ignition, especially at lower RPMs, compared to AC CDI systems.

To figure out if your CDI box is AC or DC, check these points:

• Wiring: DC CDI boxes usually have a direct connection to the battery, while AC types get power from the stator.
• Starting: If your vehicle needs a charged battery to start, it likely uses a DC CDI. AC CDI systems can often start with just a kick, even if the battery is weak.
• Labeling: Sometimes, the CDI box or your owner's manual will specify the type.

If you’re unsure, consult your vehicle’s wiring diagram or ask a qualified technician for help.

There are a few common symptoms that might point to a failing CDI box:

• Engine Misfires: Irregular or weak sparks can cause the engine to misfire or run rough.
• No Start: If the engine cranks but won’t start, the CDI box could be the issue.
• Intermittent Power Loss: Sudden stalling or power drops while riding may be related to ignition problems.
• No Spark: If there’s no spark at the plug, the CDI box might not be sending voltage to the ignition coil.

Other issues can cause similar symptoms, so it’s a good idea to rule out things like spark plugs or wiring before replacing the CDI box.

The main difference is how each CDI box gets its power:

• AC CDI: Uses alternating current from the stator to charge the capacitor. It’s common on older or smaller engines.
• DC CDI: Draws direct current from the battery, offering more consistent performance, especially at low RPMs.

Choosing the right type depends on your vehicle’s electrical system. Always check your owner’s manual or wiring diagram to match the correct CDI box.

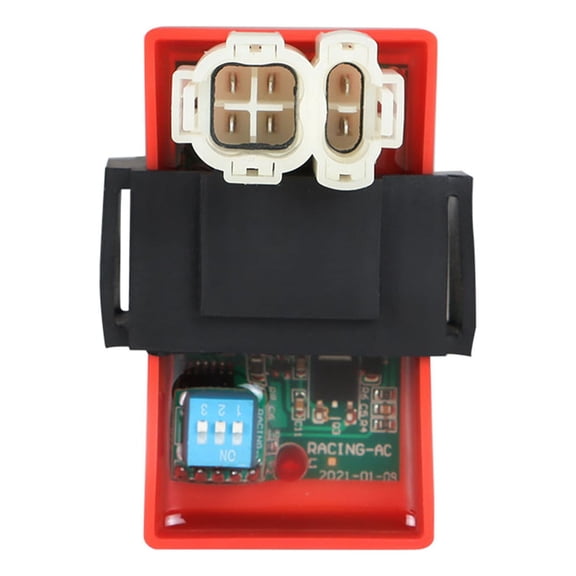

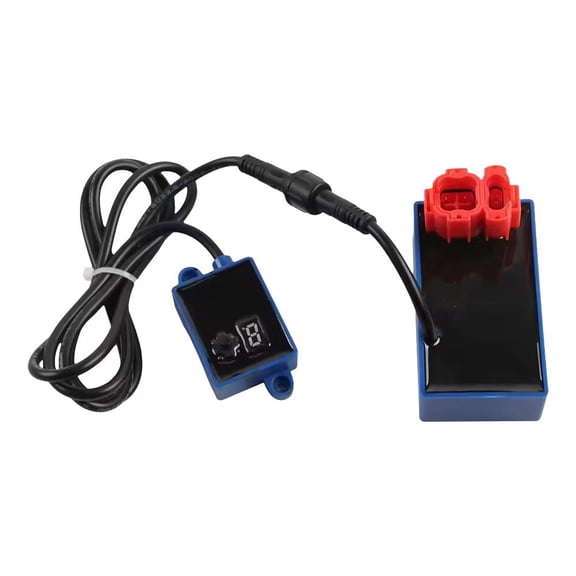

Upgrading to a performance DC CDI box can help improve throttle response, raise the rev limit, or offer adjustable ignition timing. However, results can vary based on your engine and setup. Here are a few things to keep in mind:

• Compatibility: Make sure the new CDI box matches your vehicle’s make, model, and wiring (pin count).
• Installation: Some upgrades may require additional tuning or adjustments.
• Warranty: Modifying your ignition system could affect your vehicle’s warranty.

Always follow the manufacturer’s instructions and consider consulting a professional if you’re unsure.
