You can use a multimeter to check for power and ground much like a 12V test light.

1. Set the dial to DC volts (around 20V or auto-range).
2. Connect the black lead to a clean chassis ground or the battery negative.
3. Touch the red probe to the wire, fuse, or socket you want to test.
4. A reading near 12–14V suggests power is present on that point.
5. To find a good ground, connect the red lead to battery positive and probe with the black lead; a ~12V reading indicates a ground path.
6. For fuses (power off), switch to continuity or ohms to identify opens.

Tips: Back-probe when possible, avoid piercing insulation, and don’t use resistance/continuity mode on live circuits. Results can vary by vehicle and tester.

It depends on the tester’s design and rated range.

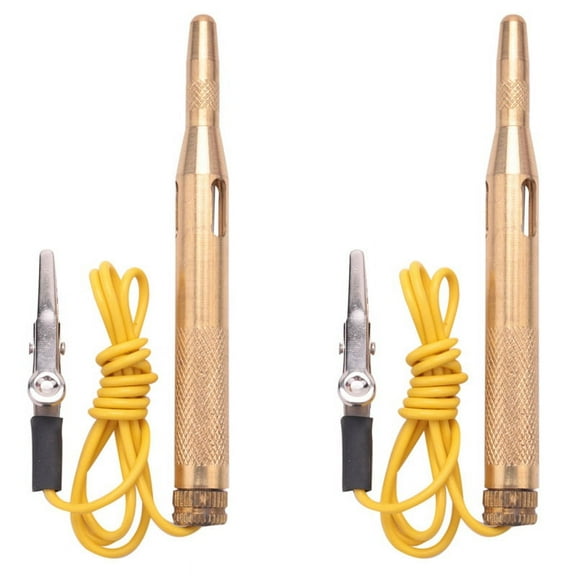

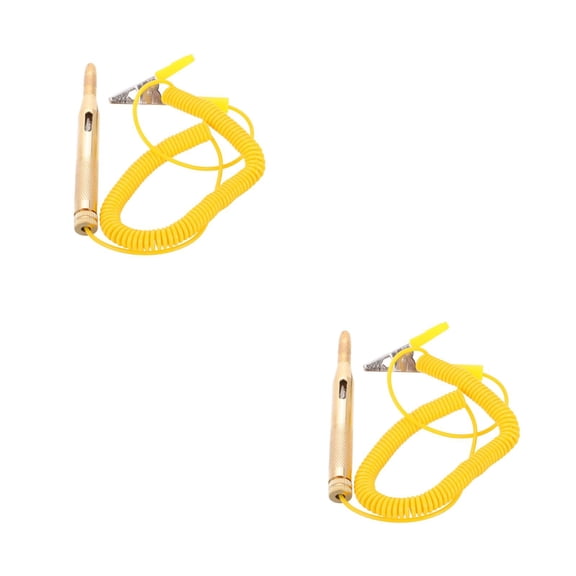

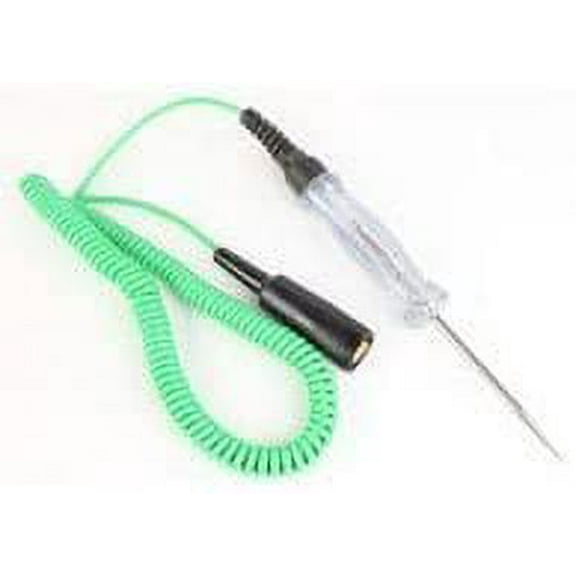

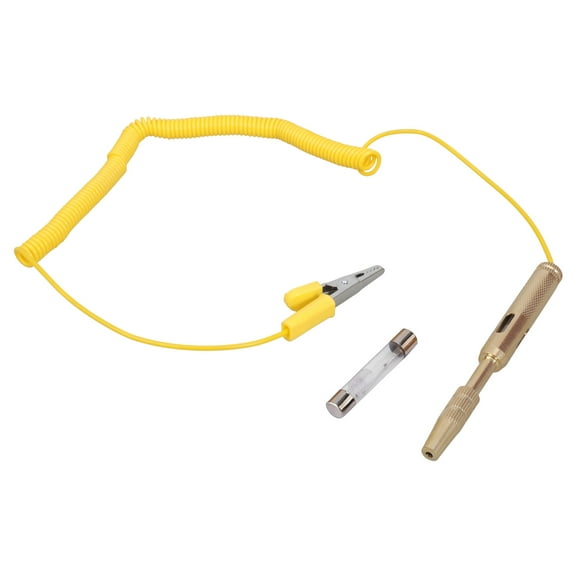

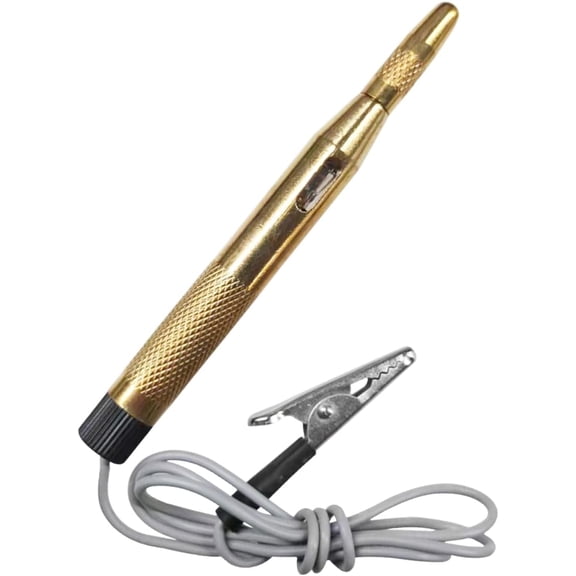

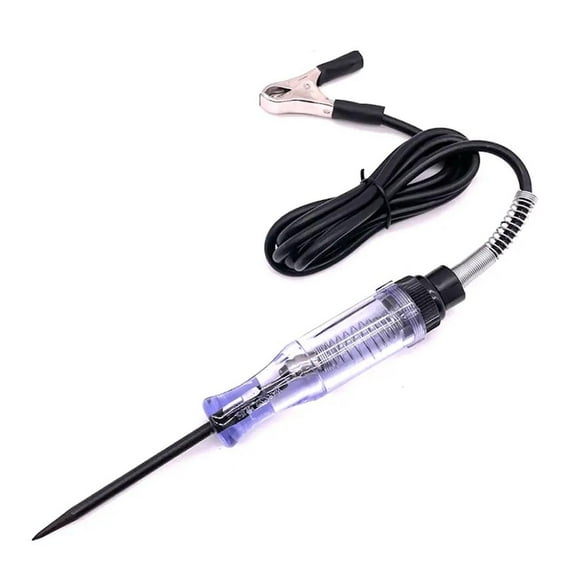

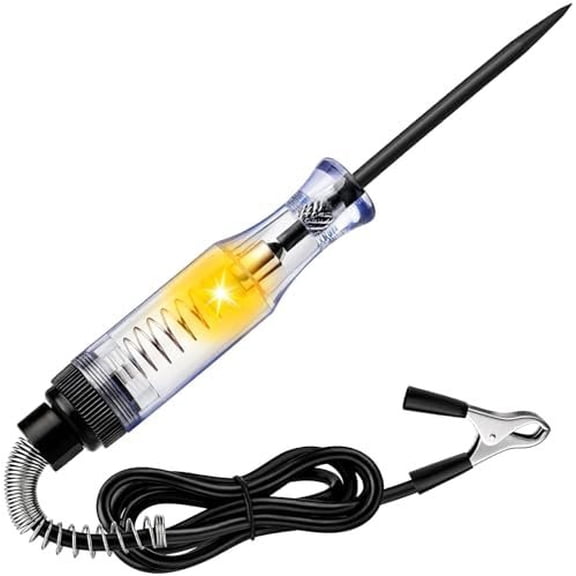

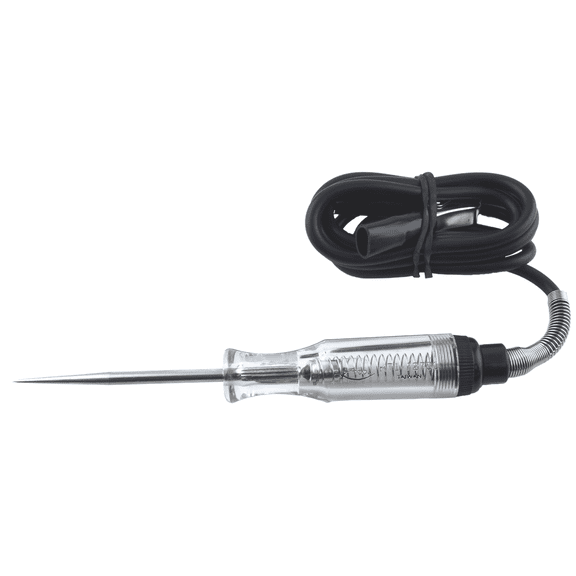

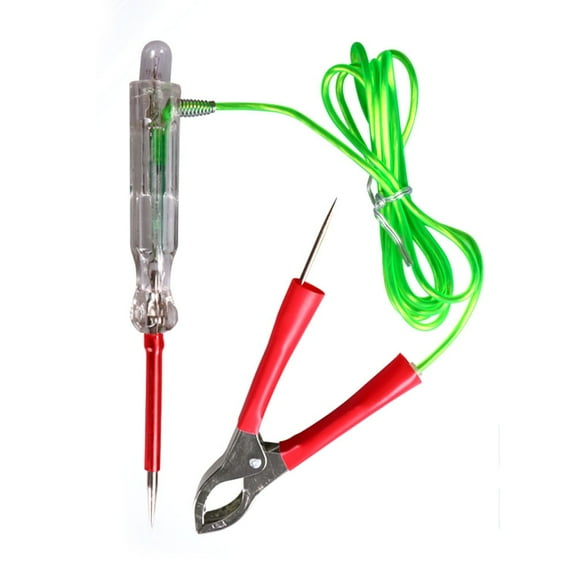

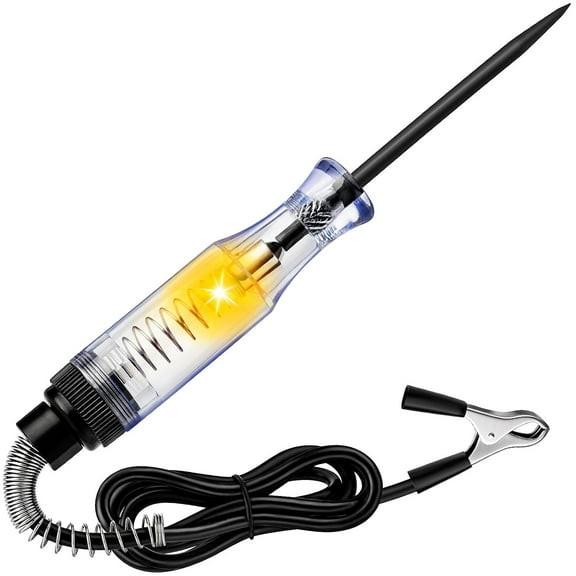

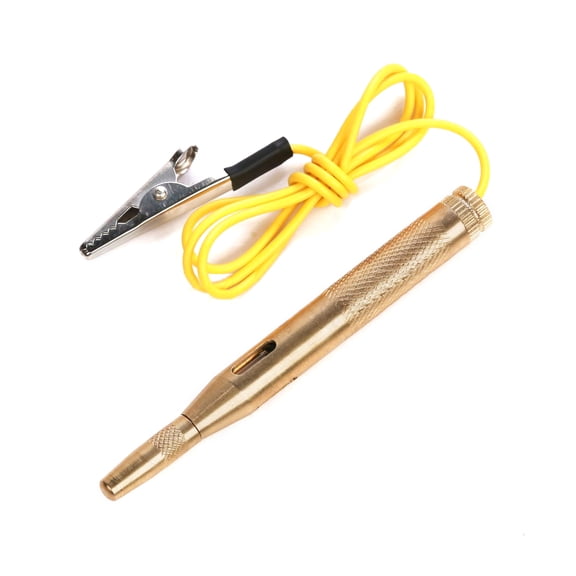

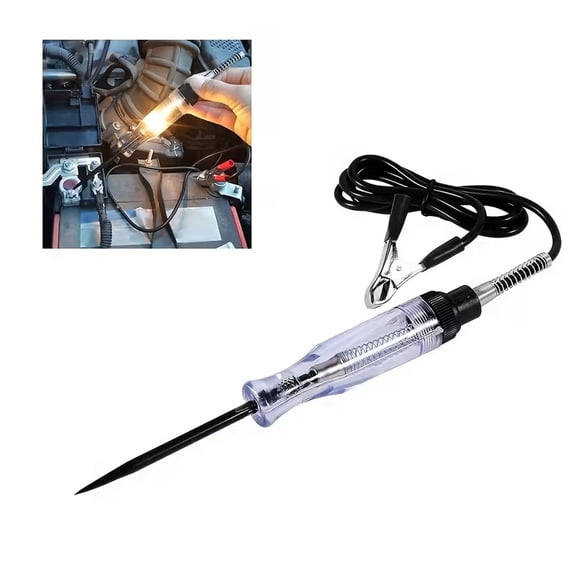

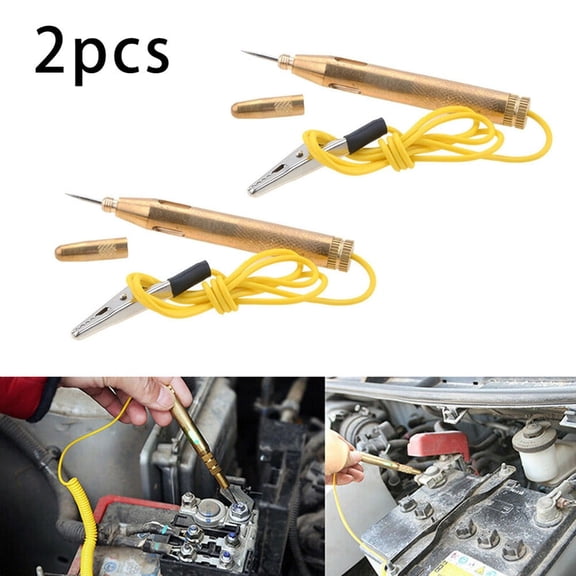

• Classic automotive test lights: Commonly rated for 6–24V DC and will light when within that range.

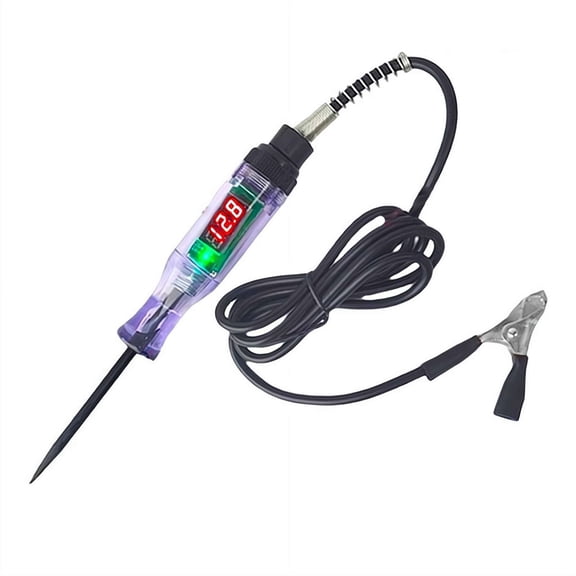

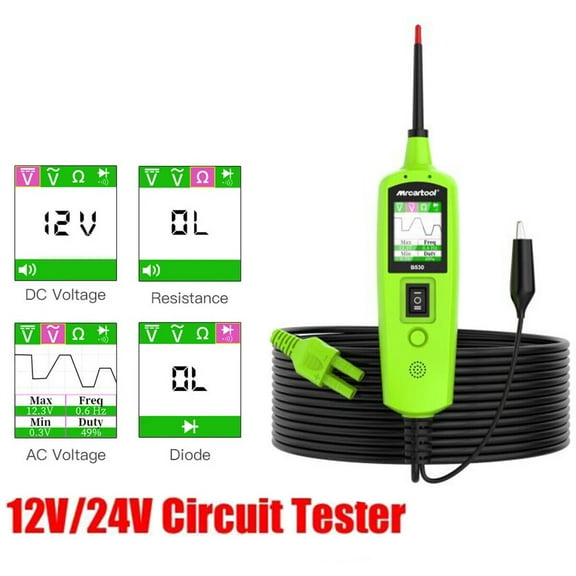

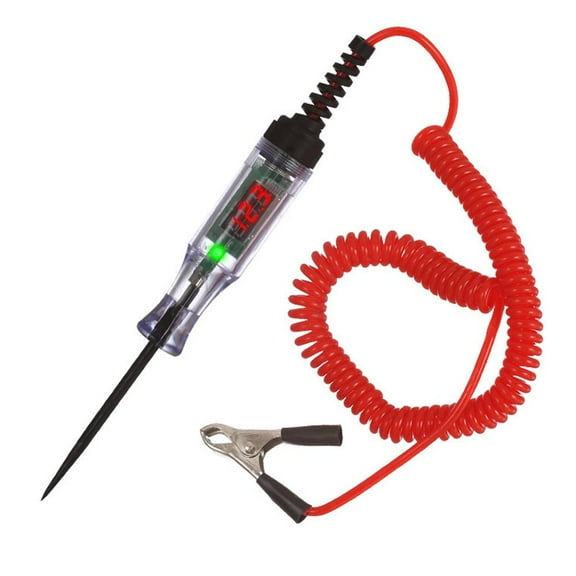

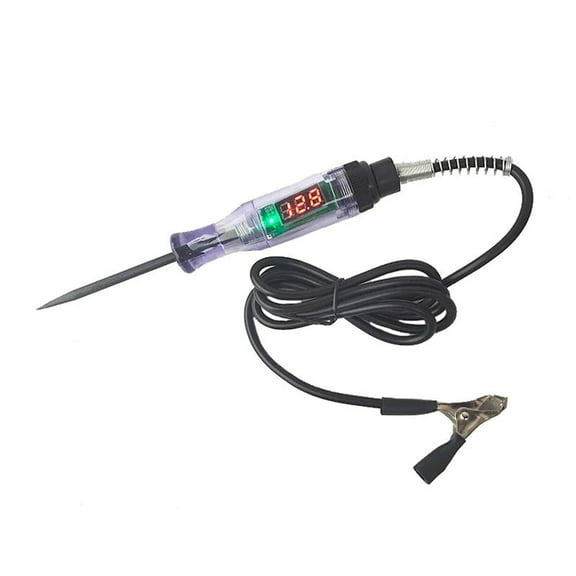

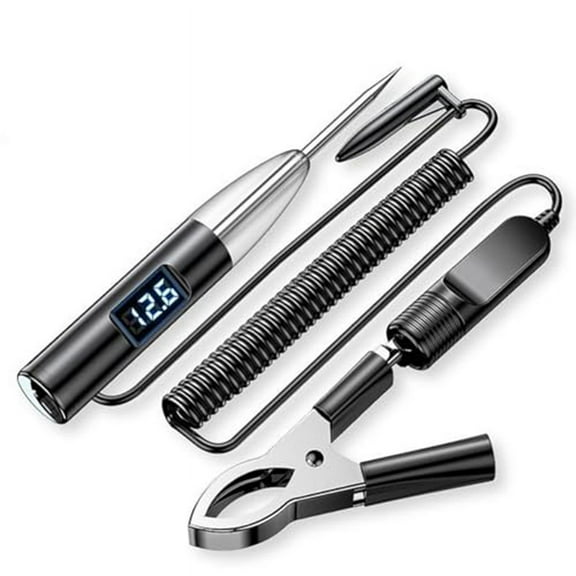

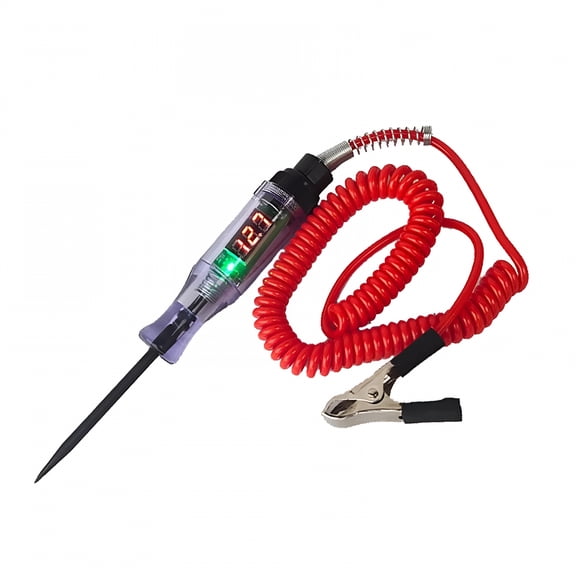

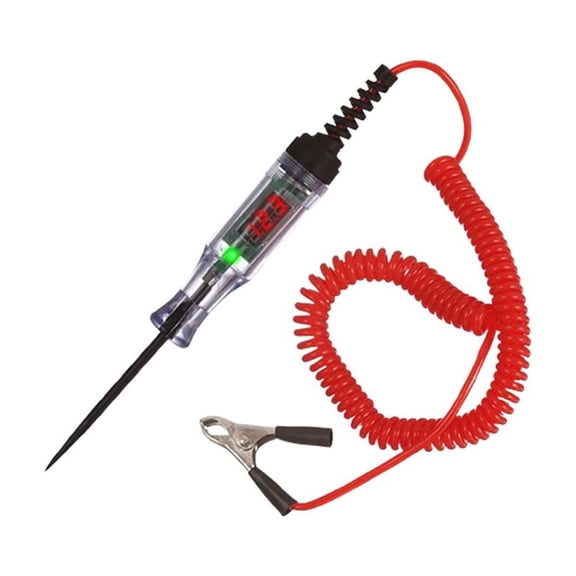

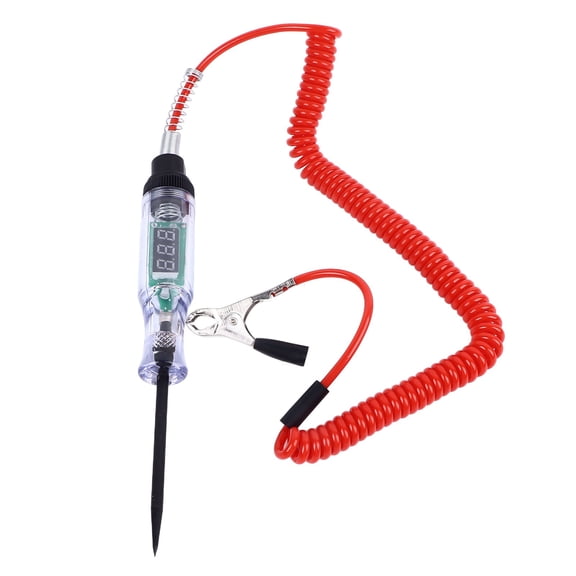

• LED/digital test lights: Many are designed for wider ranges (for example, around 3–60V or even higher), and some show voltage on a display instead of a bulb.

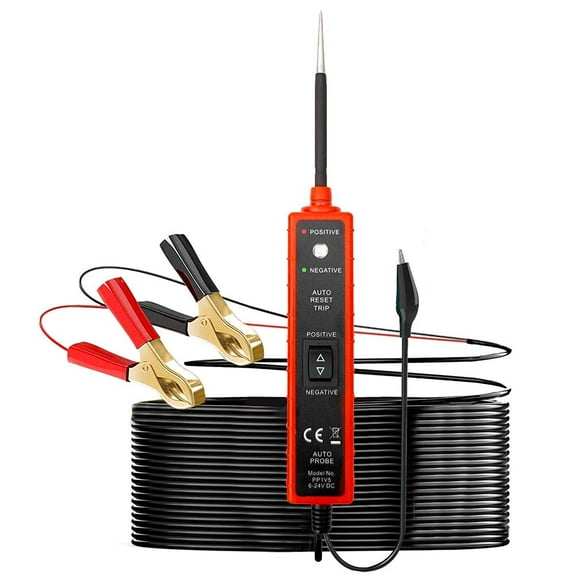

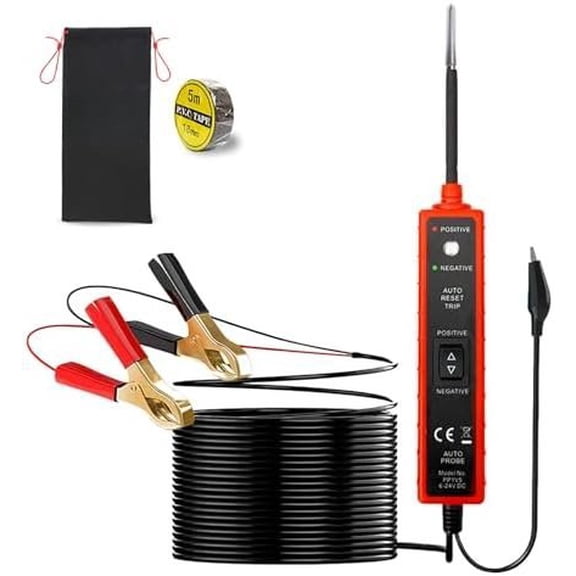

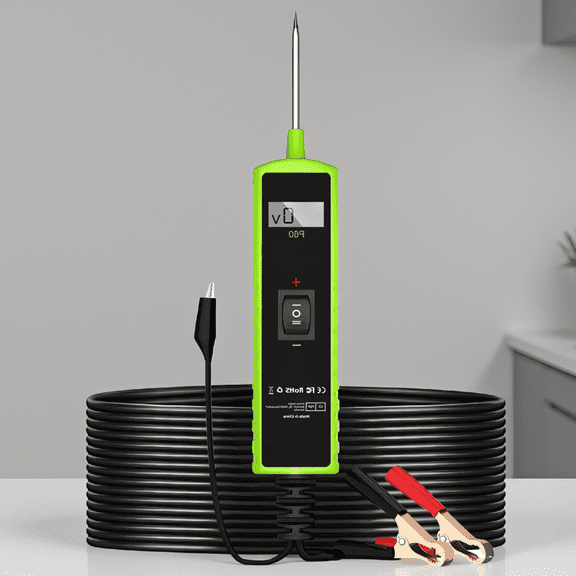

• Power circuit probes: Certain tools support even broader ranges (seen on the page up to the tens of volts).

Always check the product’s listed voltage range on the item page before use. For low‑voltage sensor circuits (like ~5V), a low‑current LED or digital tester can help avoid loading sensitive electronics. Actual illumination behavior can vary by the tool and circuit conditions.

It depends on what you’re checking.

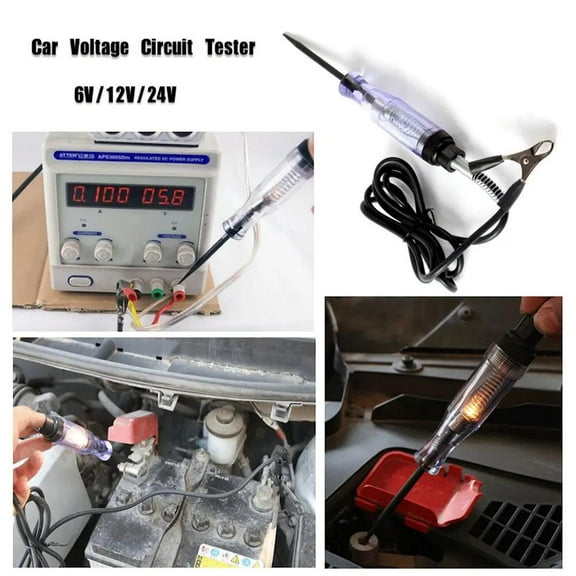

1. Finding power: Clip the alligator lead to a known ground (battery negative or clean metal). Probe wires, fuses, or sockets; the light or indicator shows when power is present.
2. Finding ground: Clip to battery positive. Probe suspected ground points; an illuminated light or positive indication suggests a good ground path.
3. Polarity testers: Some digital/LED tools show red/green to indicate positive or negative without moving the clip.

Use a clean, secure connection and avoid shorting the probe to nearby metal. On modern vehicles with sensitive electronics, a low‑current LED or digital tester can be a cautious choice. Always review the tool’s instructions for specific guidance.

DIY is possible, but a purpose‑built automotive tester can offer added safety and features. If you prefer to build one, keep it simple and protected.

• Parts: 12V bulb or LED (with the correct resistor), inline fuse (about 1–3A), insulated probe/handle, 18–20 AWG wire, and an alligator clip.
• Wiring: Wire the probe to the bulb/LED, then to the inline fuse, and finally to the clip lead. Insulate connections with heat‑shrink.
• Test: Verify on a known 12V source before using on a vehicle.

Use caution around live circuits and avoid touching bare conductors. DIY tools may lack protections found in retail options, so choose what feels safest for your work.

Look for an automotive test light with a listed range that covers 6–24V DC. Many on our site are designed for multi‑voltage use, so one tool can work across motorcycles, cars, and trucks.

• Check the spec line: It should clearly state something like “6–24V DC.”
• Consider features: LED indicators for polarity, digital voltage display, a continuity buzzer, and a long spring cord can make diagnostics easier.
• Sensitive circuits: A low‑current LED/digital tester can be a gentler option for modern electronics.

Review the item details and customer feedback to confirm compatibility with your vehicle’s system. If you work on a wider range (like up to 48V), choose a tester rated accordingly.
