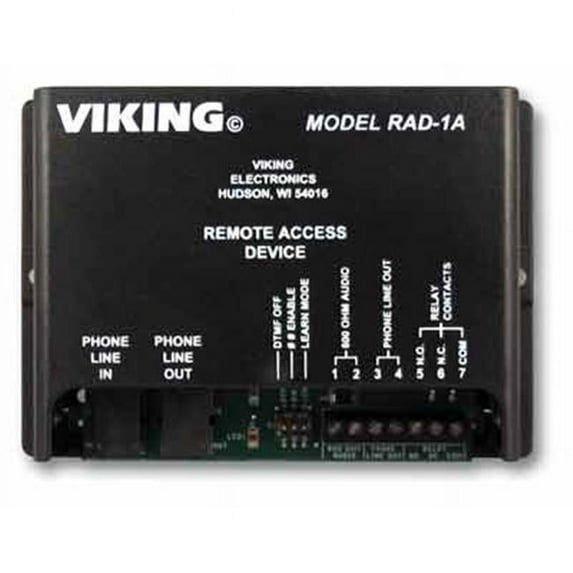

Viking Electronics RAD-1A Line Powered Remote Access Device
Viking Electronics RAD-1A Line Powered Remote Access Device
Hero image 0 of Viking Electronics RAD-1A Line Powered Remote Access Device, 0 of 1

Viking Electronics RAD-1A Line Powered Remote Access Device

(No ratings yet)

Key item features

Applications
  • Paging systems (Viking’s CPA-7B or PA-2A)
  • Digital announcers, dictation equipment
  • Advertisements, radio or church programs
  • Audio monitoring for security purposes
Features
  • Status LED turns on when the unit is active and turns off to indicate the presence of audio
  • Programmable 6 digit security code
  • Programmable 6 digit access code
  • Separate 600 ohm audio and telephone line outputs
  • Disconnects on CPC, call time out, silence time out, busy or by dialing #7
  • Programmable 2 hour call timer
  • Programmable 1-99 second silence timer
  • Alternate screw terminal connection for phone line out
  • Provides a 500ms hook switch flash to access other features
  • Provides a 2 second disconnect
  • Connects phone line to the 600 ohm input/ output of one-way paging amplifiers, digital announcers and other audio programs
  • Auxiliary contacts available for systems that need a dry contact closure (activate whenever the unit’s output is active)
  • Non-volatile memory (no batteries required)
Specifications
  • Power - Telephone Line Powered (24V DC 20mA minimum)
  • Dimension - 5.25 x 3.5 x 1.75 in.
  • Environmental - 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Relay Contact Ratings - .5A @ 125VAC / 1A @ 30VDC
  • Audio Loss (through unit) - 1 dB
  • Connections - (2) RJ11 modular jacks, 7-position screw terminal strip
- SKU: JLRS30912

Specs

Works with, Paging Systems,Digital Announcers,Dictation Equipment,Radio,Church ProgramsPower type, BatteryFeatures, Indicator LightsBrand, Viking ElectronicsColor, WhiteSize, 5.25" x 3.5" x 1.75"

About this item

Product details

Applications
  • Paging systems (Viking’s CPA-7B or PA-2A)
  • Digital announcers, dictation equipment
  • Advertisements, radio or church programs
  • Audio monitoring for security purposes
Features
  • Status LED turns on when the unit is active and turns off to indicate the presence of audio
  • Programmable 6 digit security code
  • Programmable 6 digit access code
  • Separate 600 ohm audio and telephone line outputs
  • Disconnects on CPC, call time out, silence time out, busy or by dialing #7
  • Programmable 2 hour call timer
  • Programmable 1-99 second silence timer
  • Alternate screw terminal connection for phone line out
  • Provides a 500ms hook switch flash to access other features
  • Provides a 2 second disconnect
  • Connects phone line to the 600 ohm input/ output of one-way paging amplifiers, digital announcers and other audio programs
  • Auxiliary contacts available for systems that need a dry contact closure (activate whenever the unit’s output is active)
  • Non-volatile memory (no batteries required)
Specifications
  • Power - Telephone Line Powered (24V DC 20mA minimum)
  • Dimension - 5.25 x 3.5 x 1.75 in.
  • Environmental - 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
  • Relay Contact Ratings - .5A @ 125VAC / 1A @ 30VDC
  • Audio Loss (through unit) - 1 dB
  • Connections - (2) RJ11 modular jacks, 7-position screw terminal strip
- SKU: JLRS30912
