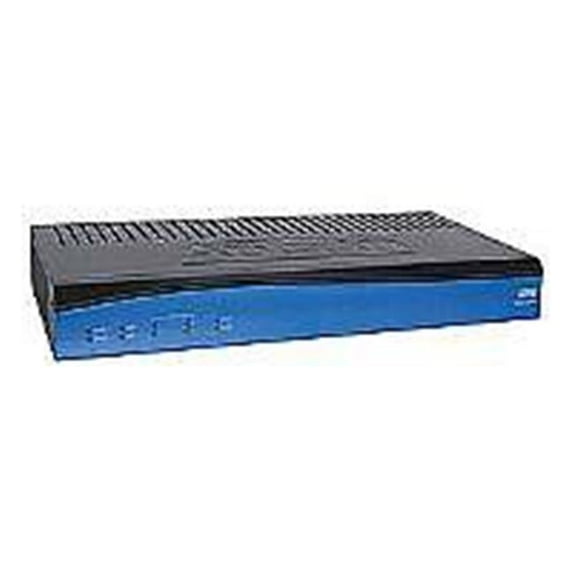

TC4999 Gen 3 Router

The Total Access 924E “Gen 3” Series of IP Business Gateways for Ethernet and multi-T1 applications from ADTRAN are designed for carrier Ethernet and SIP/MGCP Voice over IP “VoIP” networks. These products feature all the same robust routing and voice features of the previous generation IPBGs, along with a host of more features and functions that enable cost effective, reliable IP service delivery. These devices use the ADTRAN Operating System “AOS” to simplify management and administration. Multiple models offer flexibility for varied applications from PRI delivery and SIP trunking services to Hosted IP PBX offerings.

• Device Type - Router.
• Enclosure Type - Desktop, rack-mountable, wall-mountable.
• Connectivity Technology - Wired.
• Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP.
• Capacity - IPSec VPN tunnels - 100.
• RAM - 512 MB.
• Flash Memory - 128 MB.
• Status Indicators - Port status, status, VoIP, USB.
• VoIP Functionality - VoIP phone adapter.
• VoIP Protocols - MGCP, SIP.
• Voice Codecs - G.711, G.729a, T.38.
• Power Device - Internal power supply.
• Voltage Required - AC 120 V “ 60 Hz ”.
• Power Consumption Operational - 75 Watt.
• Item Weight - 9 lbs.
