SparkFun 7-Segment Serial Display - Red
SparkFun 7-Segment Serial Display - Red
Hero image 0 of SparkFun 7-Segment Serial Display - Red, 0 of 4

SparkFun 7-Segment Serial Display - Red

(No ratings yet)

Key item features

  • A classic 4-digit 7-segment display combined with a ATMega328 microcontroller
  • Control every segment individually using only a few serial lines
  • Can be controlled in one of three ways: Serial TTL communication, SPI serial communication or I2C serial
  • Selectable baud rate & brightness

Specs

Brand, SparkFunColor, RedHeight, 0.9 inHas written warranty, No

About this item

Product details

Key Features:

  • A classic 4-digit 7-segment display combined with a ATMega328 microcontroller
  • Control every segment individually using only a few serial lines
  • Can be controlled in one of three ways: Serial TTL communication, SPI serial communication or I2C serial
  • Selectable baud rate & brightness

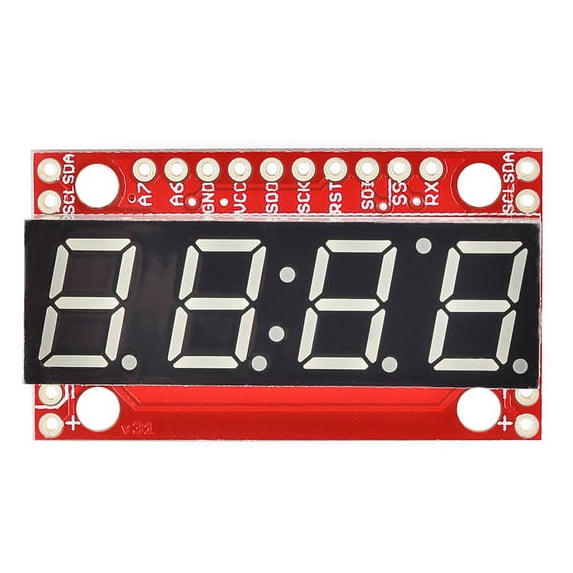

4-digit 7-segment displays are really neat little devices, it's a shame that they can be so cumbersome to control. Sparkfun has solved that problem by making them a little bit "smarter." The SparkFun 7-Segment Serial Display combines a classic 4-digit 7-segment display and an ATMega328 microcontroller allowing you to control every segment individually using only a few serial lines.

The Serial 7-Segment Display can be controlled in one of three ways: Serial TTL communication, SPI serial communication or I2C serial. You can even program it for stand-alone operation since the ATMega328 comes pre-loaded with the Arduino bootloader! There is also an FTDI header on board and we've provided a hardware profile for the Arduino IDE to make it even easier to program.

They've made some layout changes to this design as well which will make it easier to incorporate these into your project. The power and I2C pins were moved to the sides of the board such that you can chain them together in order to display longer strings of digits. Mounting holes were added to the boards so you can mount them on standoffs (no more hot glue!)

Item Specifics
Size: 41mm x 23mm (1.6in x 0.9in)
Some intermediate programming skills are required
Some basic soldering skills and tools required

  • A classic 4-digit 7-segment display combined with a ATMega328 microcontroller
  • Control every segment individually using only a few serial lines
  • Can be controlled in one of three ways: Serial TTL communication, SPI serial communication or I2C serial
  • Selectable baud rate & brightness
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

SparkFun

Color

Red

Height

0.9 in

Has written warranty

No
