Rotary Encoder 600P/R 2-Phases Photoelectric Incremental Rotation Encoder 5V-24V
Key item features
- :*High Accurate & Stable Performance:This incremental rotary encoder delivers 600 p/r, . Operating at DC 5-24V, it ensures stable performance in various working conditions, making it best for precise motion control.
- *Wide Voltage Compatibility:Works reliably with a broad DC power range (5-24V), offering flexibility across different setups. Suitable for automated leather cutting, weighing scales, and other accurate displacement measurement tasks.
- *Lasting & Compact Design:Features a robust 6×15mm shaft and compact 38×51mm body, guarantee durability in demanding environments. Includes a 1.5-meter cable and supports high-speed operation up to 6000 RPM for industrial and DIY applications.
- *Versatile Quadrature Output:Equipped with dual-phase (A/B) NPN open-collector output, the encoder provides square-wave quadrature pulses for accurate direction and speed detection. Compatible with most PLCs and controllers for seamless integration.
- *Multi-Functional Applications:Perfect for measuring rotation speed, angle, acceleration, and length in automation systems. Best for CNC machines, robotics, conveyor belts, steel/length cutting control, and educational robotics projects like student racing robots.**Specification:*Part name: Rotary Encoder*Color: *Material: *Pulses: 600 p/r*Power source: DC5-24V*Shaft: 6*15mm*Size: 38*51mm*Response frequency: 0-50KHz*Cable length: 1.5 meter*Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type*Radial load: ≤30N*Axial load: ≤20N*Starting torque: ≤2x10^-3 N.m*Maximum speed: 6000r/min
Specs
Brand, Sufanic
Volts, 5 V, 24 V
Height, 2.75 in
Has written warranty, No
Weight, 0.32 lb
Similar items you might like
5Pcs Black PTT Launch Button Replace for Motorola A10 A12 XTNI CP110 EP150 A9D Radio Walkie Talkie Accessories Repair Spare Part $11.55
$1155current price $11.555Pcs Black PTT Launch Button Replace for Motorola A10 A12 XTNI CP110 EP150 A9D Radio Walkie Talkie Accessories Repair Spare Part
25 out of 5 Stars. 2 reviews5 out of 5 stars3X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048 $17.99
$1799current price $17.993X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048

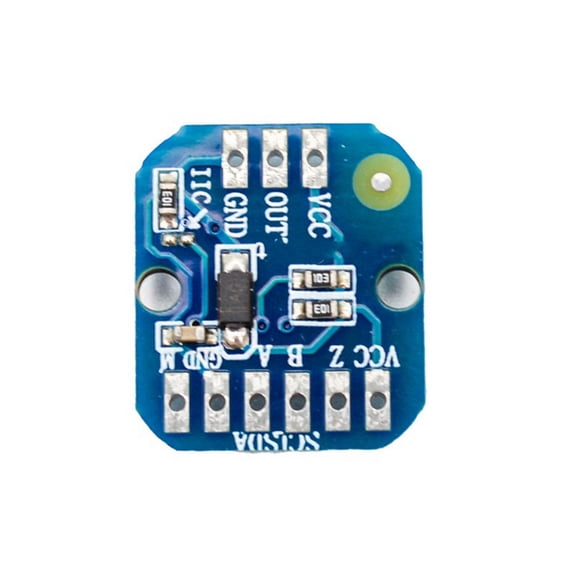

MT6701 Magnetic Encoder Module PWM/I2c Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module $6.25
$625current price $6.25MT6701 Magnetic Encoder Module PWM/I2c Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module
5X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module $12.49
$1249current price $12.495X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module
2X MT6701 Magnetic Encoder Module PWM/I2c Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module $7.48 Was $9.17
$748current price $7.48, Was $9.17$9.172X MT6701 Magnetic Encoder Module PWM/I2c Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module

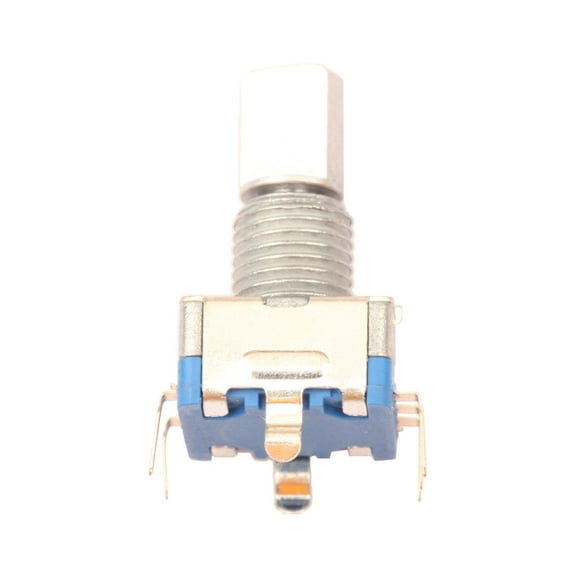

5pcs 360 Degree Rotary Encoder EC11 w Push Button 5Pin Handle Long 15 MM with A Built in Push Button Switch $13.66
$1366current price $13.665pcs 360 Degree Rotary Encoder EC11 w Push Button 5Pin Handle Long 15 MM with A Built in Push Button Switch

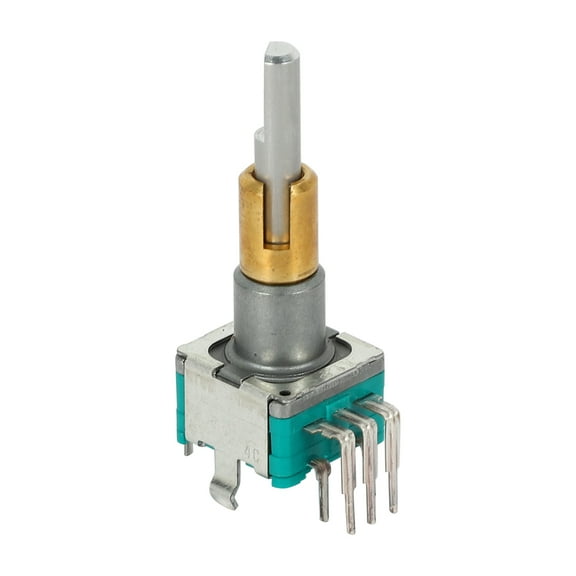

EC11EBB24C03 Dual Axis Encoder with Switch 30 Positioning Number 15 Pulse Point Handle 25mm $10.14
$1014current price $10.14EC11EBB24C03 Dual Axis Encoder with Switch 30 Positioning Number 15 Pulse Point Handle 25mm
4X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module,4 x Magnetic encoder 4 x Magnet,Black $11.59
$1159current price $11.594X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module,4 x Magnetic encoder 4 x Magnet,Black

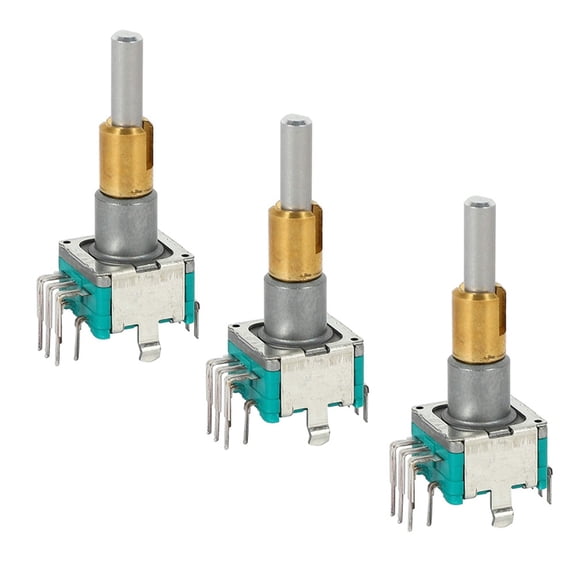

WM25 3PCS EC11EBB24C03 Dual Encoder with Switch 30 Positioning Number 15 Pulse Point Handle 2 $17.54
$1754current price $17.54WM25 3PCS EC11EBB24C03 Dual Encoder with Switch 30 Positioning Number 15 Pulse Point Handle 2
BeckArnley 201-1811 Temperature Sending Switch With Gauge $18.99
$1899current price $18.99BeckArnley 201-1811 Temperature Sending Switch With Gauge
Rotary Encoder 50 Pulses 2Phase Npn Output 5 24V For Robotics Applications $20.47
$2047current price $20.47Rotary Encoder 50 Pulses 2Phase Npn Output 5 24V For Robotics Applications
5Pcs 6mm Rotary Encoder Push Button Switch Keyswitch Electronic Components $9.44
$944current price $9.445Pcs 6mm Rotary Encoder Push Button Switch Keyswitch Electronic Components
8X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module,8 x Magnetic encoder 8 x Magnet,Black $16.29
$1629current price $16.298X MT6701 Magnetic Encoder Module PWM/ Brushless Motor Encoder ABZ Mode 1024 Lines Replaces AS5600 Module,8 x Magnetic encoder 8 x Magnet,Black
2P9T 2 Pole 9 Position 2-Deck Band Channel Rotary Switch Selector with Knob $9.49
$949current price $9.492P9T 2 Pole 9 Position 2-Deck Band Channel Rotary Switch Selector with Knob
2P5T 2 Pole 5 Position Selectable 1 Deck Band Selector Rotary Switch 2Pcs $10.79
$1079current price $10.792P5T 2 Pole 5 Position Selectable 1 Deck Band Selector Rotary Switch 2Pcs
4 x AS5600 Magnetic Encoder-White $10.59
$1059current price $10.594 x AS5600 Magnetic Encoder-White
2X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048 $13.99
$1399current price $13.992X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048

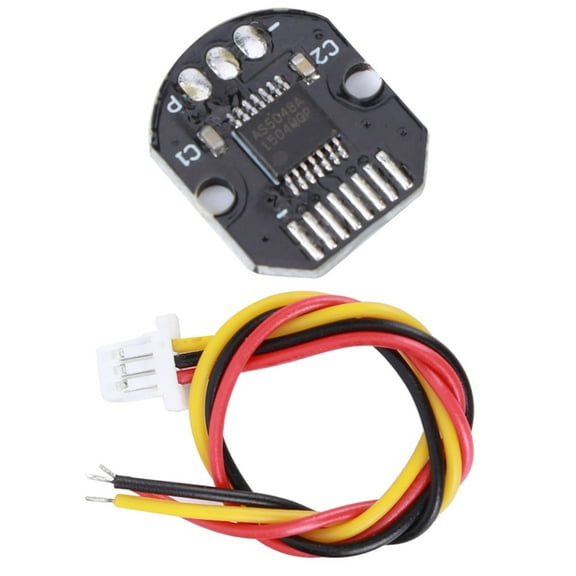

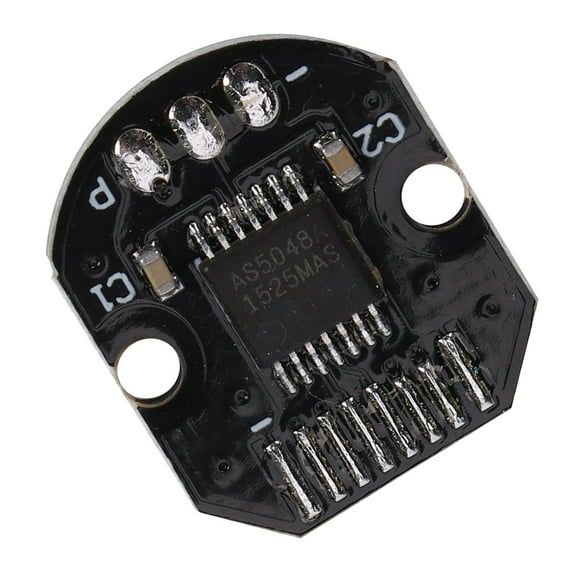

AS5048A Magnetic Encoder PWM/Serial Peripheral Interface Port High Accuracy Module $12.24
$1224current price $12.24AS5048A Magnetic Encoder PWM/Serial Peripheral Interface Port High Accuracy Module
TTC Encoder 7/8/9/10/11/12/13/14/15/16mm Rotary Scroll Gold Wheel Encoder with 1.74mm Hole Mark,20-40g PC Dustproof $12.13
4 optionsAvailable in additional 4 options$1213current price $12.13TTC Encoder 7/8/9/10/11/12/13/14/15/16mm Rotary Scroll Gold Wheel Encoder with 1.74mm Hole Mark,20-40g PC Dustproof
RM3HAF-10 Rotary Dial Switch 10 0-9 Coding Switch Patch 3:3 With Handle Rotary Coding Switch $14.51
$1451current price $14.51RM3HAF-10 Rotary Dial Switch 10 0-9 Coding Switch Patch 3:3 With Handle Rotary Coding Switch
About this item
Product details
Features:
High Accurate & Stable Performance:This incremental rotary encoder delivers 600 p/r, . Operating at DC 5-24V, it ensures stable performance in various working conditions, making it best for precise motion control.
Wide Voltage Compatibility:Works reliably with a broad DC power range (5-24V), offering flexibility across different setups. Suitable for automated leather cutting, weighing scales, and other accurate displacement measurement tasks.
Lasting & Compact Design:Features a robust 6×15mm shaft and compact 38×51mm body, guarantee durability in demanding environments. Includes a 1.5-meter cable and supports high-speed operation up to 6000 RPM for industrial and DIY applications.
Versatile Quadrature Output:Equipped with dual-phase (A/B) NPN open-collector output, the encoder provides square-wave quadrature pulses for accurate direction and speed detection. Compatible with most PLCs and controllers for seamless integration.
Multi-Functional Applications:Perfect for measuring rotation speed, angle, acceleration, and length in automation systems. Best for CNC machines, robotics, conveyor belts, steel/length cutting control, and educational robotics projects like student racing robots.
Specification:
Part name: Rotary Encoder
Color:
Material:
Pulses: 600 p/r
Power source: DC5-24V
Shaft: 6*15mm
Size: 38*51mm
Response frequency: 0-50KHz
Cable length: 1.5 meter
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Radial load: ≤30N
Axial load: ≤20N
Starting torque: ≤2x10^-3 N.m
Maximum speed: 6000r/min
Moment of inertia: 20g/cm2
Allowable angular acceleration: 2x10^4 rad/S
Shock resistance: 1000m/s2.6ms
Vibration resistance: 1000m/S2.10-200Hz
Working temperature: -10℃~+70℃
Storage temperature: -20℃~+80℃
Package Contents:
1*Rotary Encoder
Notes:
1: Do not connect the encoder to the shaft rigidly, use an elastic connector. Photoelectric encoders are high-precision sensors, so knocking is strictly prohibited during installation.
2: Do not wrap the encoder output line with the power line or output it in the same wire slot, and do not place it near the distribution board.
3: Wiring errors will damage the internal circuit. When wiring, please follow the encoder label and turn on the machine after checking that everything is correct.
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
