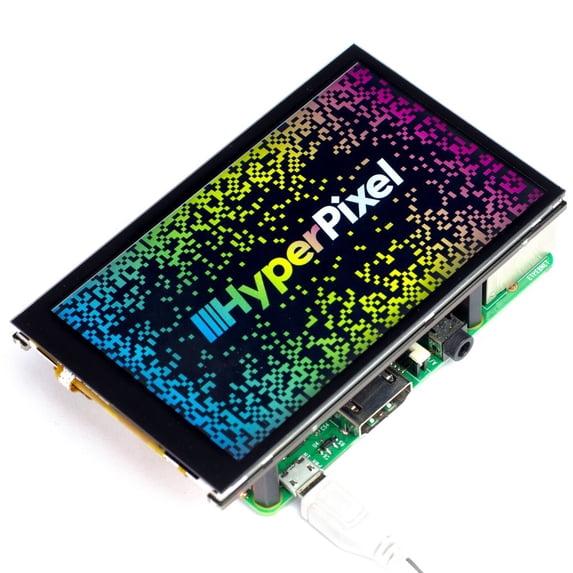

Pimoroni HyperPixel - 4.0" Hi-Res Touchscreen for Raspberry Pi
Key item features
- High-speed DPI interface
- 18-bit color 4.0" IPS (wide viewing angle, 160°) display (86.4x51.8mm) at 800x480 pixels (~235 PPI) with a 60 FPS frame rate
- Comes fully assembled - no soldering required
- Capacitive touch
- One-line installer
Specs
Compatibility, Raspberry Pi
Model name, HyperPixel
Brand, Pimoroni
Height, 0.35 in
Has written warranty, No
About this item
Product details
Key Features:
- High-speed DPI interface
- 18-bit color 4.0" IPS (wide viewing angle, 160°) display (86.4x51.8mm) at 800x480 pixels (~235 PPI) with a 60 FPS frame rate
- Comes fully assembled - no soldering required
- Capacitive touch
- One-line installer
A high-resolution, high-speed 4.0" TFT display for your Raspberry Pi with optional capacitive multi-touch! HyperPixel 4.0 is the perfect way to use your Pi without a bunch of cables or a bulky display. Design your own interface to control your project, display data, or turn your Pi into a tiny media centre.
This new version of HyperPixel has a gorgeous IPS display, with wide viewing angles, custom-made cover glass (on the touch version), and the alternate I2C interface is broken out for advanced users.
HyperPixel uses a high-speed DPI interface, allowing it to shift 5x more pixel data than the usual SPI interface that these small Pi displays use. It has a 60 FPS frame rate and a resolution of approximately 235 pixels per inch (800x480) on its 4.0" display. The display can show 18-bits of colour (262,144 colors).
Item Specifics
4 - Standoffs to securely attach to your Pi
1 - 40-pin female header to boost height for Pi B+, 2, 3, 3B+ and 4
Size: 58.5x97x12mm (Includes header and display)
Contrast ratio: 500:1
Compatible with all 40-pin header Raspberry Pi models
- High-speed DPI interface
- 18-bit color 4.0" IPS (wide viewing angle, 160°) display (86.4x51.8mm) at 800x480 pixels (~235 PPI) with a 60 FPS frame rate
- Comes fully assembled - no soldering required
- Capacitive touch
- One-line installer
Specifications
Compatible models
Compatibility
Model name
Brand
Warranty
Warranty information
Similar items you might like
Based on what customers bought
Best seller, Full Starter Learning Kit for Arduino MEGA 2560, LCD1602 Display & Servo Motor Included $47.03
Best seller
$4703current price $47.03Full Starter Learning Kit for Arduino MEGA 2560, LCD1602 Display & Servo Motor Included
144.3 out of 5 Stars. 14 reviews4.3 out of 5 starsANXPTIME USB C Connector Power Adapter for A1706 A1707 A1989 A1990 A2141 A2159 A2251 See price in cart
SponsoredSee price in cartcurrent price See price in cart+$0.99 shippingANXPTIME USB C Connector Power Adapter for A1706 A1707 A1989 A1990 A2141 A2159 A2251
Shipping, arrives in 3+ daysBest seller, Raspberry Pi Zero 2 W Case Kit with Raspberry Pi Zero 2 W Case Power Supply $11.30
Best seller
$1130current price $11.30Raspberry Pi Zero 2 W Case Kit with Raspberry Pi Zero 2 W Case Power Supply

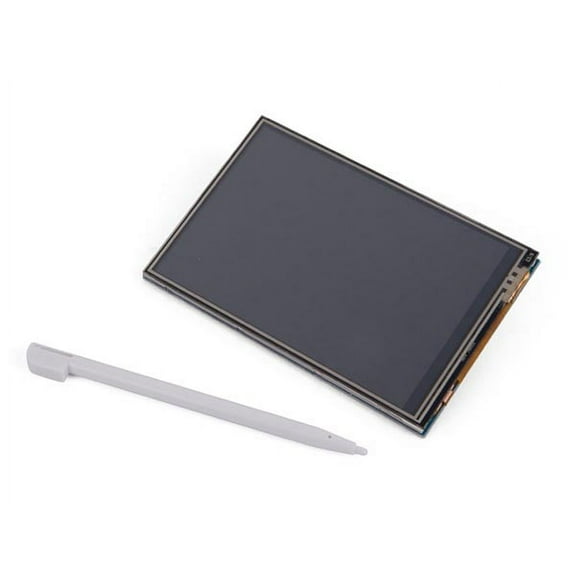

142.7 out of 5 Stars. 14 reviews2.7 out of 5 starsFor Raspberry Pi Display, 3.5 Inch With Case, 480X320 60 Fps With Active Cooler $32.40
$3240current price $32.40For Raspberry Pi Display, 3.5 Inch With Case, 480X320 60 Fps With Active Cooler
Waveshare 4.2 Inch E-Ink Display Module for Raspberry Pi 4 B E-Paper $37.38
$3738current price $37.38Waveshare 4.2 Inch E-Ink Display Module for Raspberry Pi 4 B E-Paper
Teensy4.0 IMXRT1062 DEV-15583 TEENSY 4.0 Development Boards $60.03
$6003current price $60.03Teensy4.0 IMXRT1062 DEV-15583 TEENSY 4.0 Development Boards
PCIe A M.2 E-Key for Raspberry Pi 5 with PoE Power $54.94
$5494current price $54.94PCIe A M.2 E-Key for Raspberry Pi 5 with PoE Power
Pimoroni PIM704 NVMe Base Duo for Raspberry Pi 5 M.2 HAT PCIe Extension Board (M.2 2230 to 2280 Supported) $39.99
$3999current price $39.99Pimoroni PIM704 NVMe Base Duo for Raspberry Pi 5 M.2 HAT PCIe Extension Board (M.2 2230 to 2280 Supported)

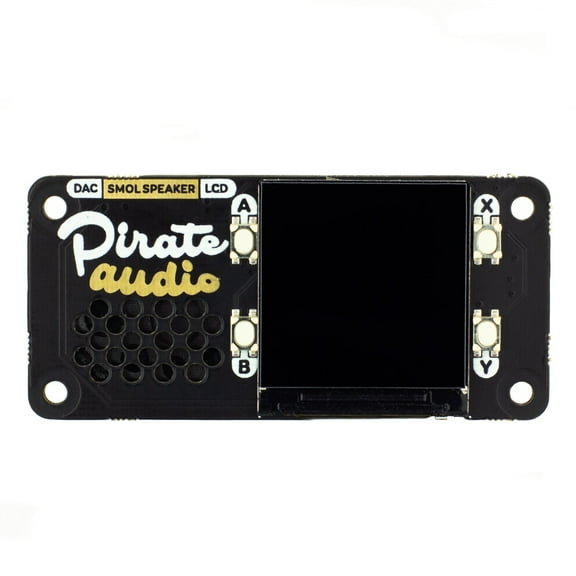

15 out of 5 Stars. 1 reviews5 out of 5 starsPimoroni PIM485 Pirate Audio Speaker, mini mono speaker, high-res display for Raspberry Pi $32.99
