PCS PulseWorx UPB Output Control Module (OCM)

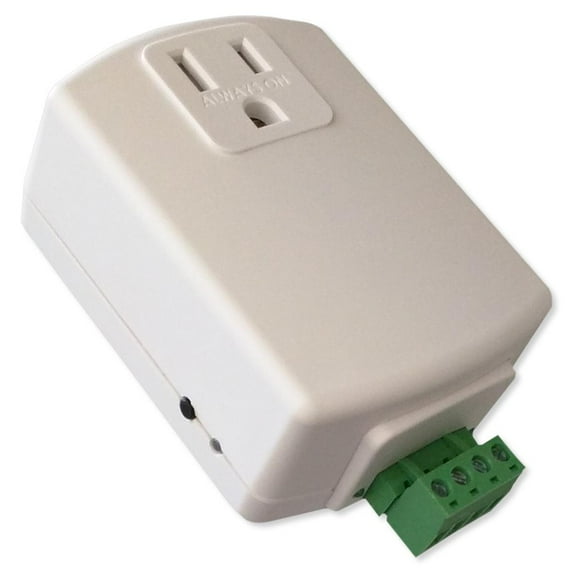

The OCM Output Control Module is a plug-in and status over existing power lines. Wire the device to the controlled relay. The OCM is designed in a white enclosure with two completely isolated Class 2 contacts rated at 8 Amps. A mounting tab is included at the top to be screwed into the receptacle for added security. The OCM will accept powerline commands from any UPB-compatible transmitter such as the PulseWorx Keypad Controllers, Timed Event Controller, Interface Modules, Approved Third-Party Controllers, Touch Screens, and WS1s. Each channel of the OCM can be a member of up to 16 Links/Scenes with the capability to store a pre-set relay state (OPEN or CLOSE). Each preset state can easily be adjusted by the homeowner using the innovative PulseWorx manual programming method. Each channel output can be configured to transmit status changes and inform the rest of the network when the timed auto-off function has automatically turned each relay off. This allows the OCM to remotely control other devices or update indicators (LEDs on our keypads). Like all PulseWorx devices, the OCM can be initially configured using PCS's free UPStart Setup Software tool. UPStart enables configuring such parameters as Network Name, Network ID, Unit ID, Room name, Device name, default on light levels, fade rates, LED colors, dimming disable, auto shut-off time, etc. as well as test the operation and communication strength of the device. UPStart has the option to configure an entire network off-line and then download the information into the devices after they are installed in the home. Manufacturer Part #: OCM.
