PB44Z Post Base

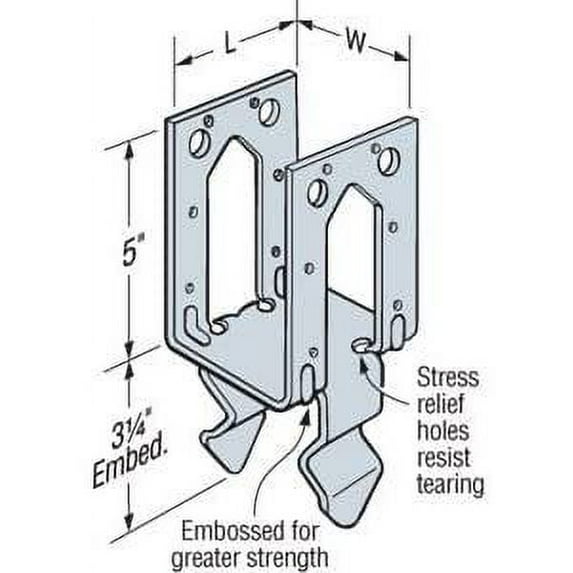

PB44Z Post Base PB/PBS Regular and Standoff Post Bases The PBS features a 1" standoff height. It reduces the potential for decay at post and column ends. Material: PB 12 gauge; PBS see tables. Finish: Galvanized. Some products available in ZMAX or HDG; see Corrosion Information. Installation: Use all specified fasteners. See General Notes. Install either nails or bolts. See General Notes, note d. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations such as fences or unbraced carports. PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load. PBS: Embed into wet concrete up to the bottom of the 1" standoff base plate. A 2" minimum side cover is required to obtain the full load. Holes in the bottom of the straps allow for free concrete flow. Some products may be installed with the Strong-Drive SD Structural Connector screw Options: PBS available in rough sizes, Contact Simpson Strong-Tie.
