OceanLED OceanConnect Junction Box [013204]
OceanLED OceanConnect Junction Box [013204]
Hero image 0 of OceanLED OceanConnect Junction Box [013204], 0 of 2

OceanLED OceanConnect Junction Box [013204]

(No ratings yet)

Key item features

  • OceanConnect Junction BoxThe OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights. Contents:
  • 1x OceanConnect unit, including 4x 7.5A blade fuses
  • 4x mounting screws
  • 1x twin entry cable grommet
  • 4x blanking plugsSpecifications:
  • Voltage: 12/24V DC (max 32V DC)
  • Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
  • Power Input Terminals Wire Gauge: 8-20 AWG
  • DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
  • Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
  • DMX Input: 1x DMX Input (to connect the DMX controller)
  • DMX Output: 1x DMX Output (to link junction boxes in the chain)
  • DMX Terminator: Onboard DMX terminator with an on/off switchPhysical Specifications
  • Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
  • Enclosure: IP66-robust polycarbonate
  • Weight: 270g Specifications:
  • Box Dimensions: 3"H x 9"W x 11"L WT: 1.6 lbs
  • UPC: 5051803009092

Specs

Electrical box type, Weatherproof Outdoor BoxDimensions, 11.00 x 9.00 x 3.00 inHas nrtl listing certification, NMaterial, PolycarbonateBrand, OceanLEDShape, Rectangular

About this item

Product details

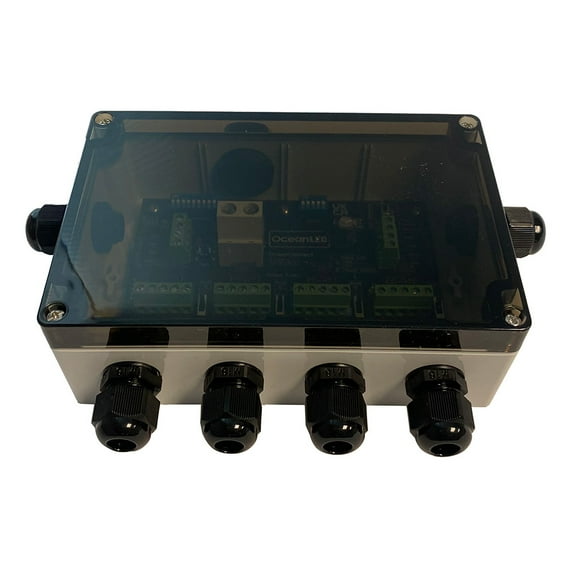

OceanConnect Junction Box

The OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.

The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights.

Contents:

  • 1x OceanConnect unit, including 4x 7.5A blade fuses
  • 4x mounting screws
  • 1x twin entry cable grommet
  • 4x blanking plugs

Specifications:

  • Voltage: 12/24V DC (max 32V DC)
  • Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
  • Power Input Terminals Wire Gauge: 8-20 AWG
  • DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
  • Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
  • DMX Input: 1x DMX Input (to connect the DMX controller)
  • DMX Output: 1x DMX Output (to link junction boxes in the chain)
  • DMX Terminator: Onboard DMX terminator with an on/off switch

Physical Specifications

  • Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
  • Enclosure: IP66-robust polycarbonate
  • Weight: 270g

Specifications:

  • Box Dimensions: 3"H x 9"W x 11"L WT: 1.6 lbs
  • UPC: 5051803009092
  • OceanConnect Junction BoxThe OceanConnect is a waterproof (IP66) DMX-controlled, low-voltage DC (9–32V) junction box.The OceanConnect provides one power unit and four individually switched fused power outputs (6 amps per output) to connect DC-powered lights or other DC-switched units. The unit also supports powering and individual addressing of up to four DMX-controlled OceanLED X-Series lights. Contents:
  • 1x OceanConnect unit, including 4x 7.5A blade fuses
  • 4x mounting screws
  • 1x twin entry cable grommet
  • 4x blanking plugsSpecifications:
  • Voltage: 12/24V DC (max 32V DC)
  • Input/Output Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out, and Lights Out
  • Power Input Terminals Wire Gauge: 8-20 AWG
  • DMX In/Out, and Lights Out Terminals Wire Gauge: 12-28 AWG
  • Light Outputs: DMX & Power- 4 x individual fused 6 Amp each max
  • DMX Input: 1x DMX Input (to connect the DMX controller)
  • DMX Output: 1x DMX Output (to link junction boxes in the chain)
  • DMX Terminator: Onboard DMX terminator with an on/off switchPhysical Specifications
  • Dimensions (Including Cable Glands): 228mm x 174mm x 60mm (9" x 6.8" x 2.3")
  • Enclosure: IP66-robust polycarbonate
  • Weight: 270g Specifications:
  • Box Dimensions: 3"H x 9"W x 11"L WT: 1.6 lbs
  • UPC: 5051803009092
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Electrical box type

Weatherproof Outdoor Box

Dimensions

11.00 x 9.00 x 3.00 in

Has nrtl listing certification

N

Material

Polycarbonate
