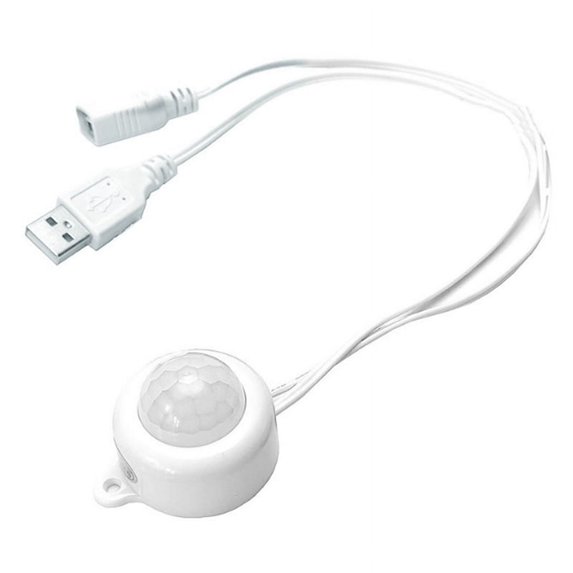

Mini LED Motion Sensor Switch, IR Activated LED Switch Controller

About this product
Mini LED Motion Sensor: Infrared human body sensor switch is widely used in LED light strips, motion lighting, human monitoring, automatic sensing equipment, etc. Controlled by motion.
Parameters: LED motion sensor switch output current: Less than 2A; Working voltage: DC 5-24V; Output power: Less than 20W; Delay time: 5-3600 seconds;
Size: 36x36x27mm/1.42x1.42x1.06 inches (L x W x H); Total length (including cable): 30.5cm/12 inch

Advantages: 1. The LED sensor is designed with ABS plastic, which is very and well insulated.
2. The mini size does not take up space.
3. The switch setting can be delayed from 5-3600 seconds, saving time and energy.
4. The infrared automatic sensing device no longer needs to manually switch the light on and off, freeing your hands.
Use Tips: When the mini LED sensor is started, the signal triggered by the module is unstable and needs to be preheated for 1 minute to work properly. The installation direction is left and right, and the signal be better.
Note: 1. Do not expose it to direct sunlight, heaters, strong winds or air conditioners.
2. Do not fix it on obstacles that infrared rays cannot penetrate.
3. The signal output and input lines of the controller should be connected correctly.
Due to different factory batches, there are slight differences in the color and appearance of product accessories, but it does not affect normal use
Color: White
Material: ABS

Package Contents:
1 x Infrared human body induction switch
1 x Double-sided sticker
2 x Screws

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
